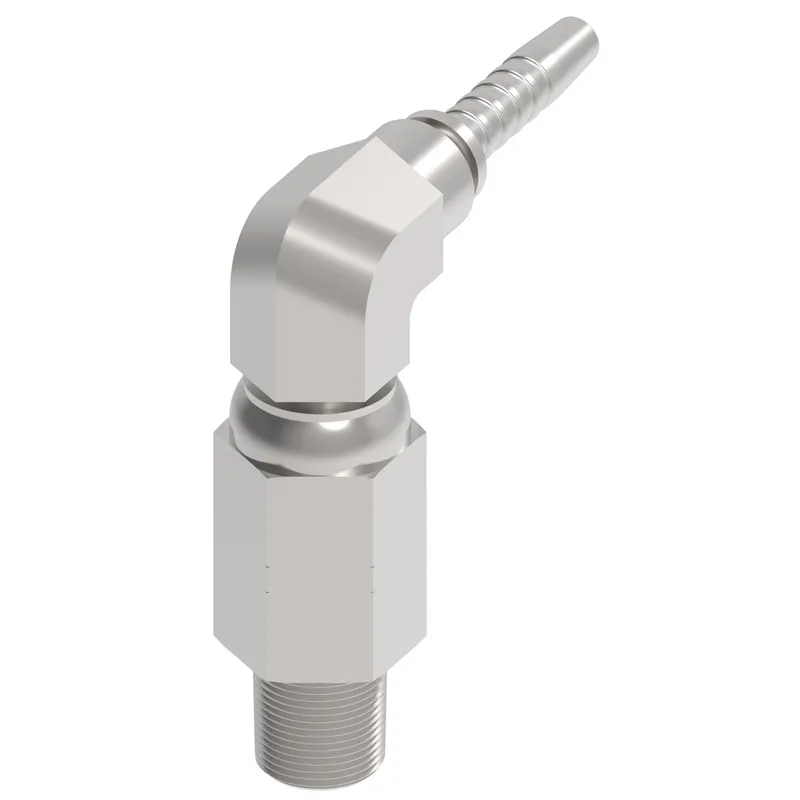

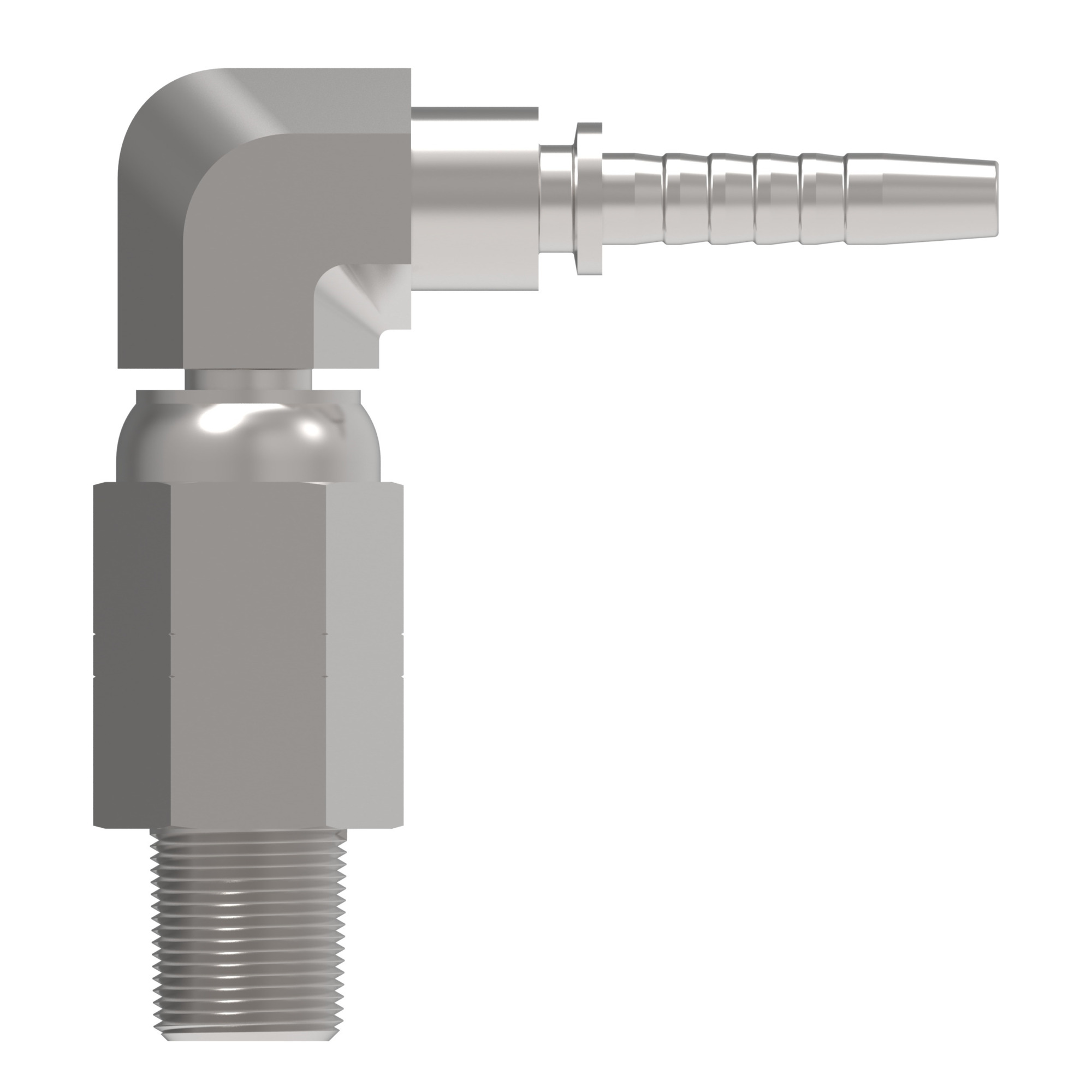

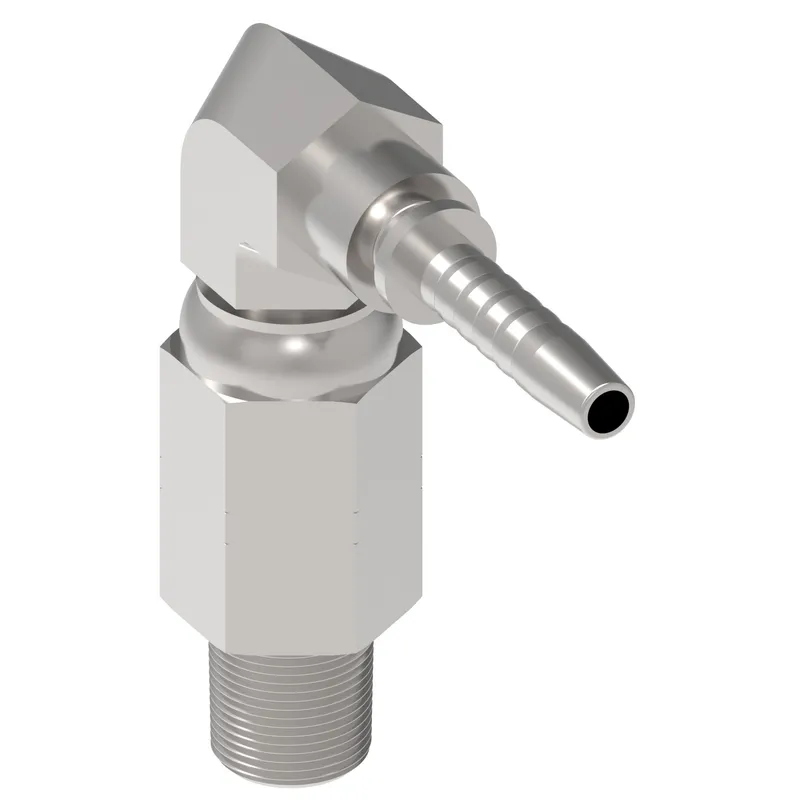

HOSE NIPPLE, 2P/06, NPTF-M/06, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 15691KSW-06-06Z be shipped?
15691KSW-06-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 15691KSW-06-06Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 15691KSW-06-06Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15691KSW-06-06Z, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/06, NPTF-M/06, CS, 90D, manufacturer part number 15691KSW-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.160 |
| A dimension MM | 55.000 |
| Angle shape | 90 Degree |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.500 |
| Construction Style | Crimp |
| Drop dimension IN | 1.550 |
| Drop dimension MM | 39.50 |
| End size 1 | -6 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.866 |
| Hex size 1 MM | 22.000 |
| Hex size 2 MM | 16.000 |
| Hose cut off factor IN | 0.980 |
| Hose cut off factor MM | 25.000 |
| Hose size | -6 |
| Inside diameter IN | 0.280 |
| Inside diameter MM | 7.000 |
| Product height in | 1.968 |
| Product height mm | 50.000 |
| Product length in | 2.259 |
| Product length mm | 57.400 |
| Product material | Carbon steel |
| Product width in | 0.866 |
| Product width mm | 22 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | 3/8-18 NPT |
