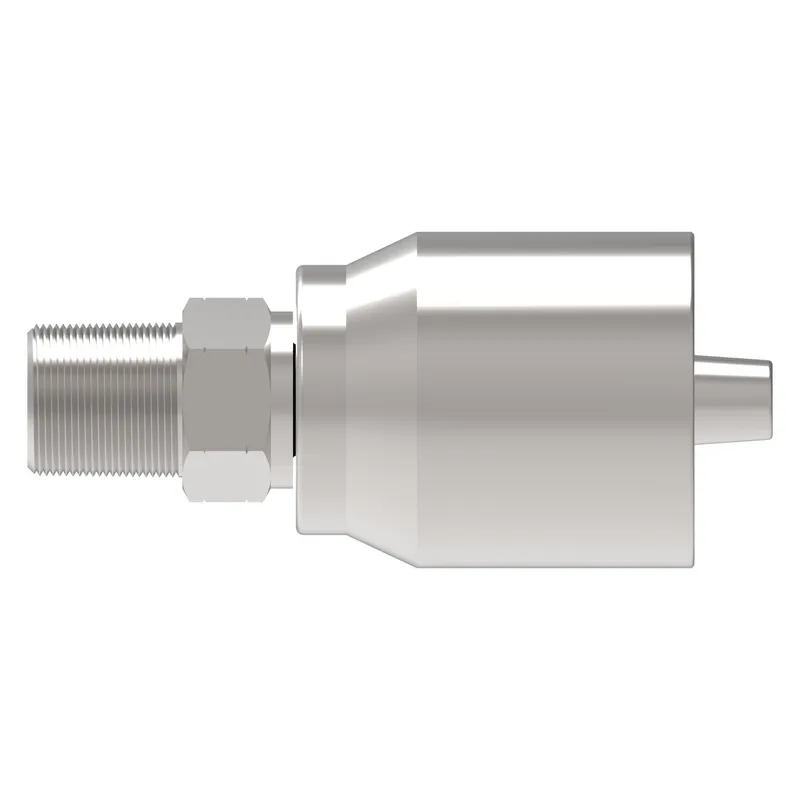

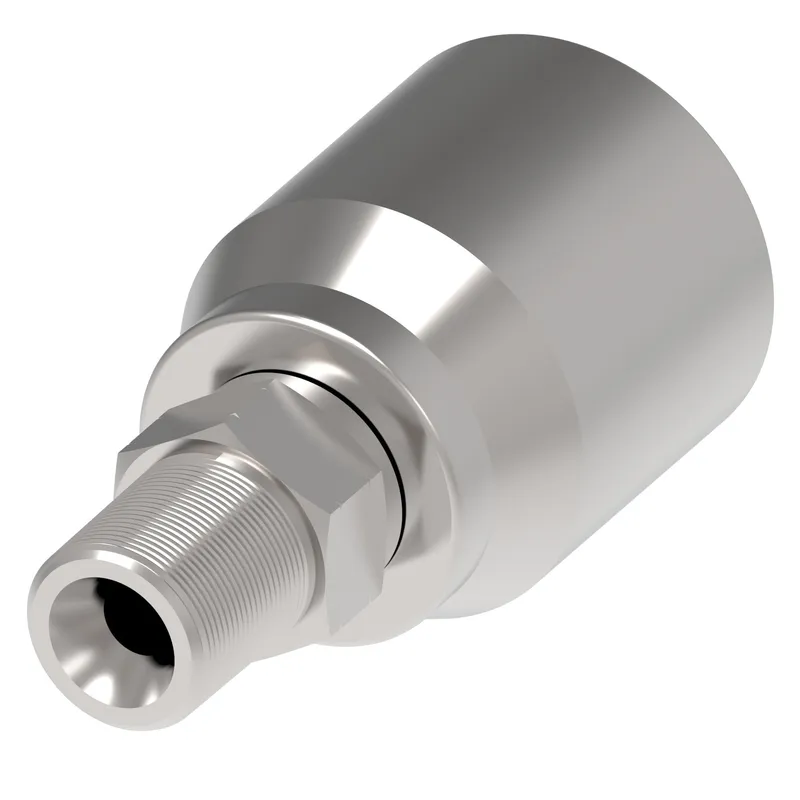

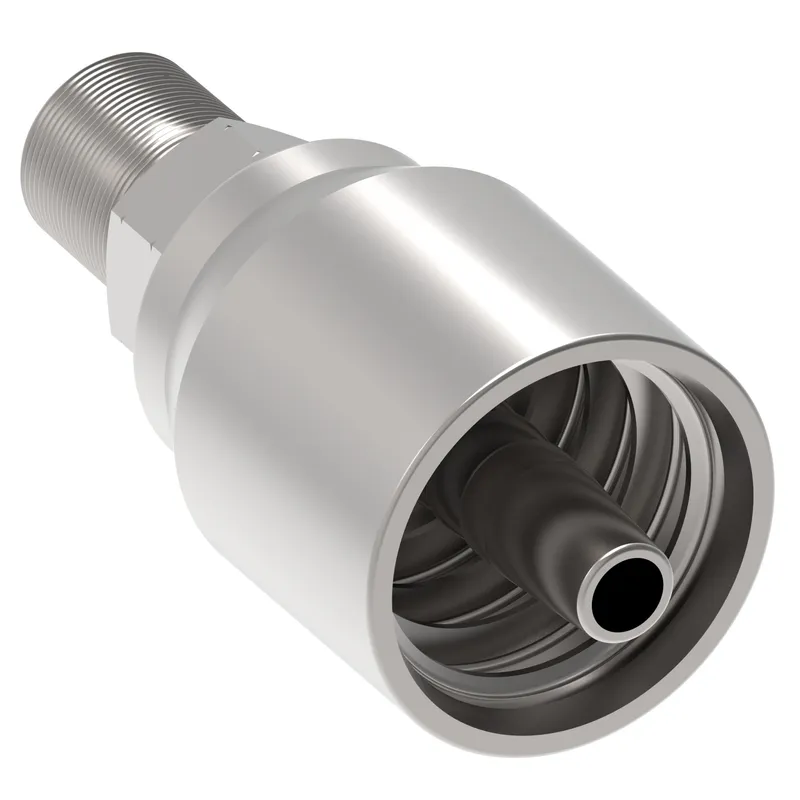

HOSE NIPPLE ASSY,2P/24,NPTF-M/24,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 15612Y-F24-24Z be shipped?
15612Y-F24-24Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 15612Y-F24-24Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 15612Y-F24-24Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15612Y-F24-24Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/24,NPTF-M/24,CS,STR, manufacturer part number 15612Y-F24-24Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.900 |
| A dimension MM | 124.500 |
| Angle shape | Straight |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| End size 1 | -24 |
| End type 1 | Male pipe (NPTF) |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.968 |
| Hex size 1 MM | 50.000 |
| Hex size 2 IN | 0.000 |
| Hose cut off factor IN | 2.180 |
| Hose cut off factor MM | 55.500 |
| Hose size | -24 |
| Inside diameter IN | 1.2500 |
| Inside diameter MM | 32.0000 |
| Product height in | 2.440 |
| Product height mm | 61.976 |
| Product length in | 4.900 |
| Product length mm | 124.460 |
| Product material | Carbon steel |
| Product width in | 2.440 |
| Product width mm | 61.976 mm |
| Series | Winner 2-Piece |
| Thread sealant | Yes |
| Thread size 1 | 1 1/2-11 1/2 NPTF |
