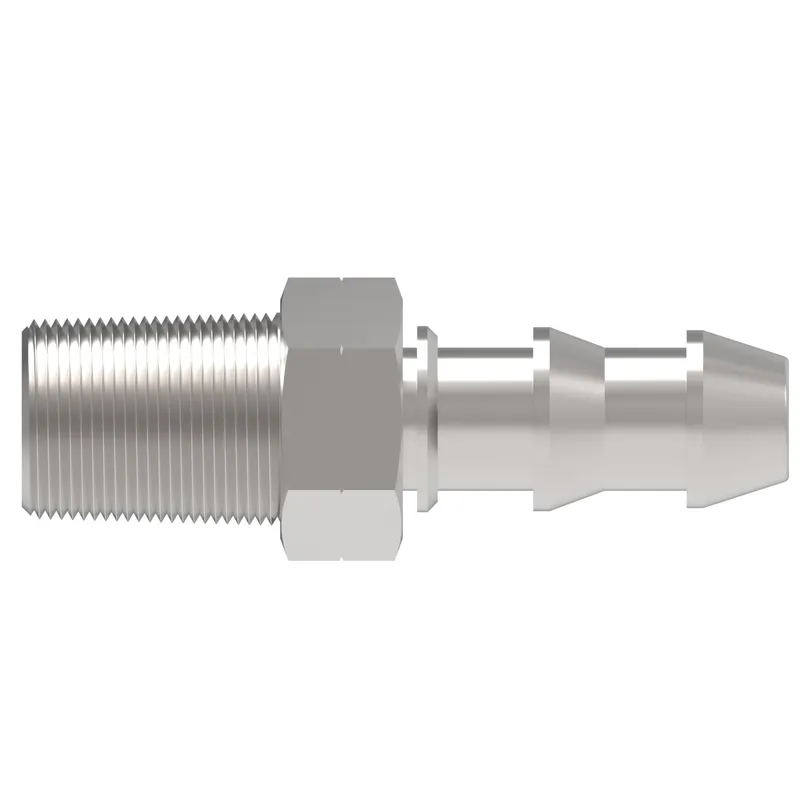

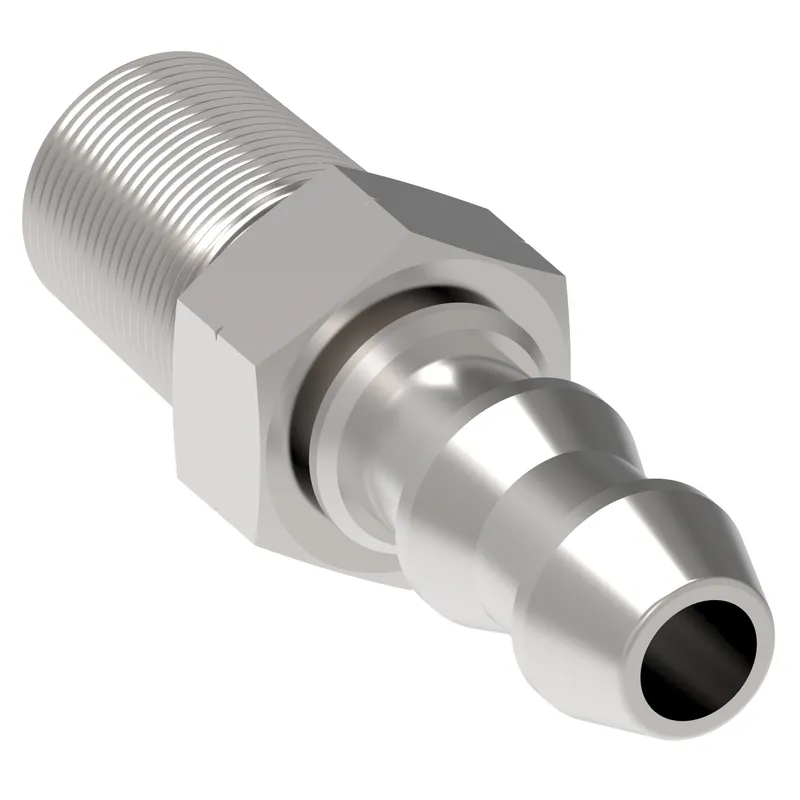

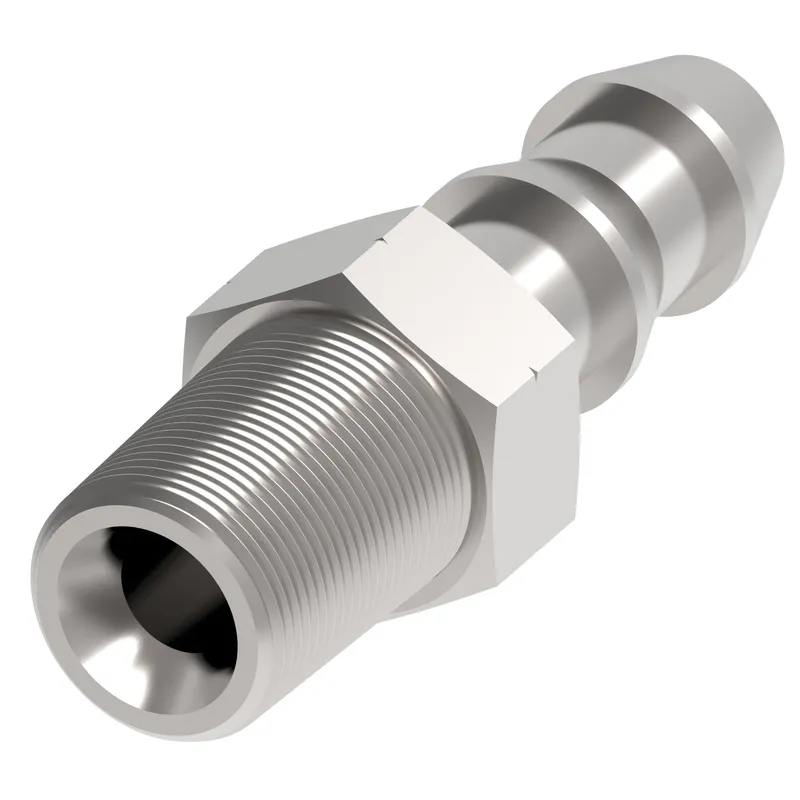

HOSE NIPPLE ASSY,1P/06,BSPT-M/04,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 13010-04-06SPZ be shipped?
13010-04-06SPZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 13010-04-06SPZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 13010-04-06SPZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13010-04-06SPZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/06,BSPT-M/04,CS,STR, manufacturer part number 13010-04-06SPZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.730 |
| A dimension MM | 44.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.500 |
| Construction Style | Crimp |
| End size 1 | -4 |
| End size 2 | -6 |
| End Type 1 | Male pipe BSPT |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.669 |
| Hex size 1 MM | 17.000 |
| Hose cut off factor IN | 0.860 |
| Hose cut off factor MM | 22.000 |
| Hose size | -6 |
| Inside diameter IN | 0.230 |
| Inside diameter MM | 6.000 |
| Product height in | 0.771 |
| Product height mm | 19.600 |
| Product length in | 1.732 |
| Product length mm | 44.000 |
| Product material | Carbon steel |
| Product width in | 0.669 |
| Product width mm | 17 |
| Thread sealant | Yes |
| Thread size 1 | R 1/4 |
