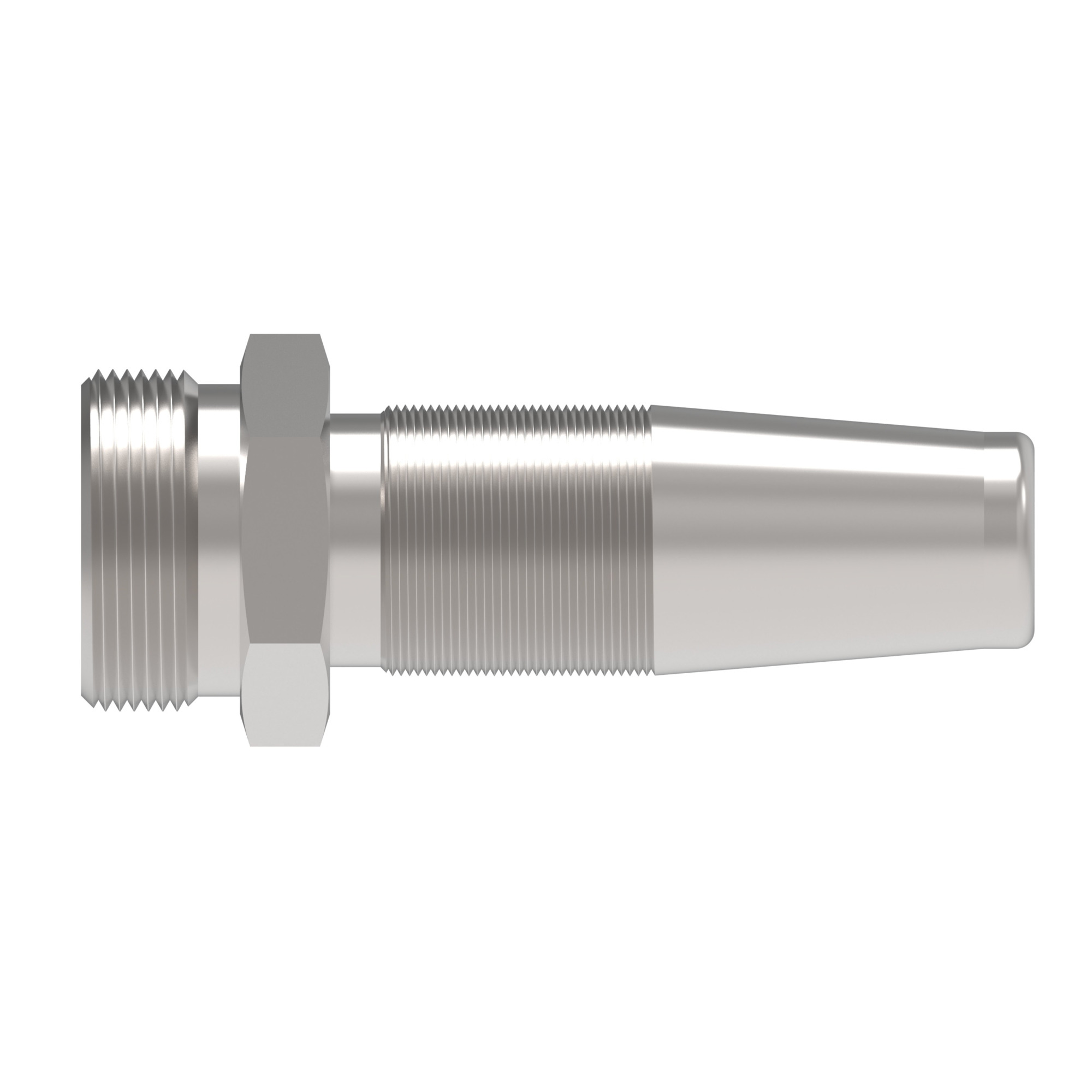

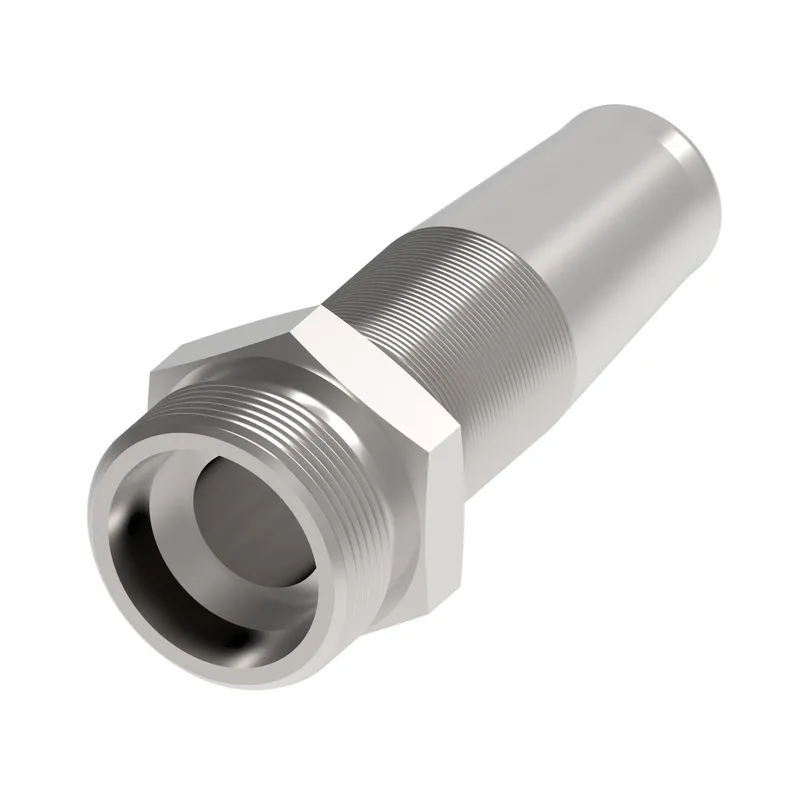

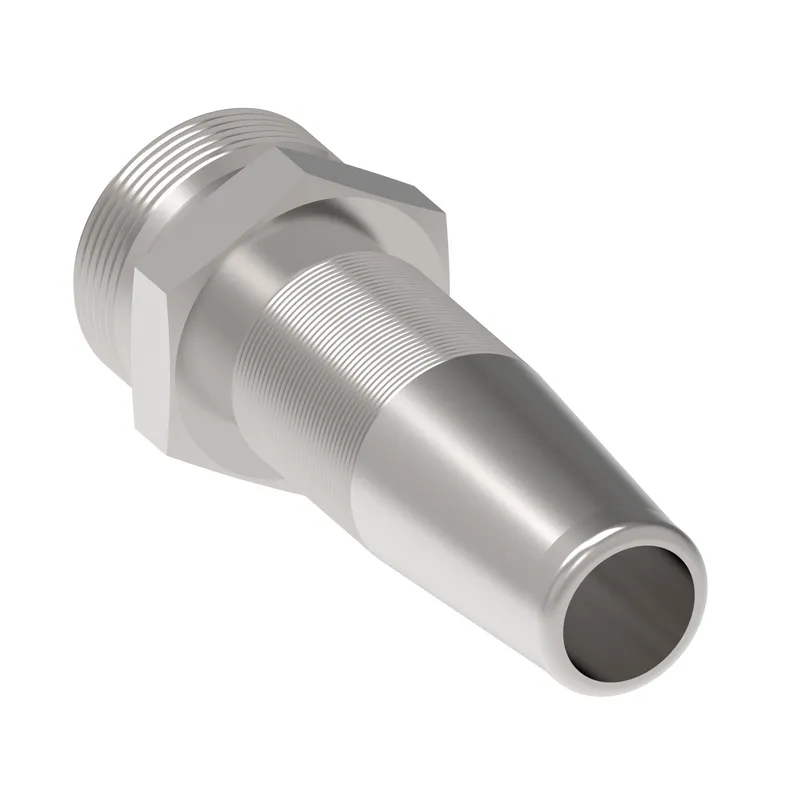

HOSE NIPPLE ASSY,SR/06,DKL-M/12,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11.013-12-6 be shipped?
11.013-12-6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11.013-12-6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11.013-12-6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11.013-12-6, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,SR/06,DKL-M/12,CS,STR, manufacturer part number 11.013-12-6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.630 |
| A dimension MM | 67.000 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.500 |
| Construction Style | Reusable |
| End connection torque | 37-44 lb-ft(50-60 Nm) |
| End size 1 | -12 |
| End Type 1 | 24 deg. tube port light duty |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.870 |
| Hex size 1 MM | 22.098 |
| Hose cut off factor IN | 1.920 |
| Hose cut off factor MM | 48.900 |
| Hose size | -6 |
| Inside diameter IN | 0.310 |
| Inside diameter MM | 7.980 |
| Product height in | 1.000 |
| Product height mm | 25.400 |
| Product length in | 2.640 |
| Product length mm | 67.056 |
| Product material | Carbon steel |
| Product width in | 25.400 |
| Product width mm | 25.4 |
| Series | Socketless |
| Thread sealant | No |
| Thread size 1 | M18x1.5 |
| Working pressure max BAR | 160 |
| Working pressure max PSI | 2300 |
