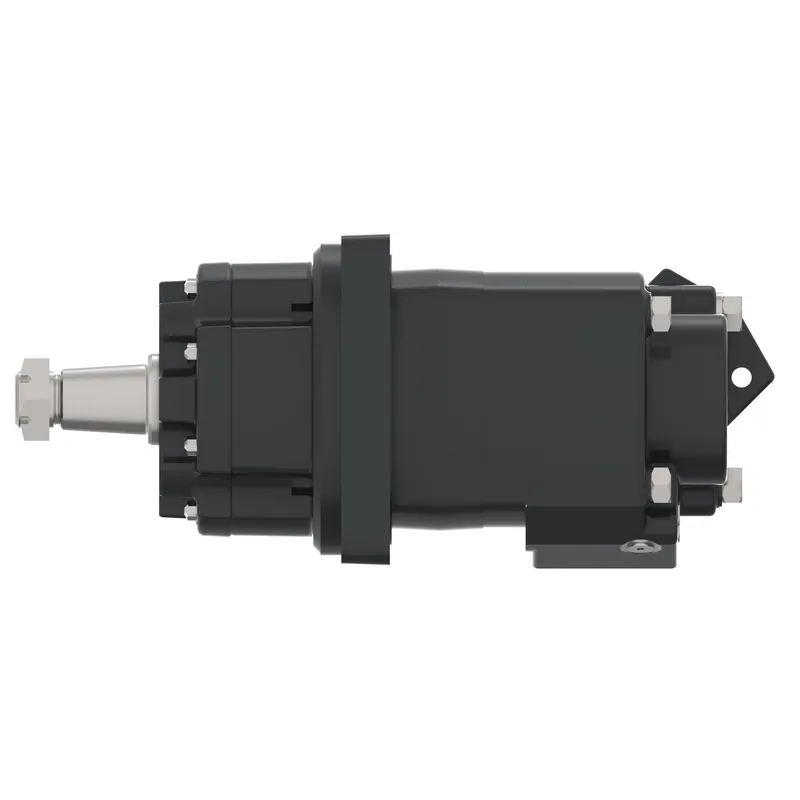

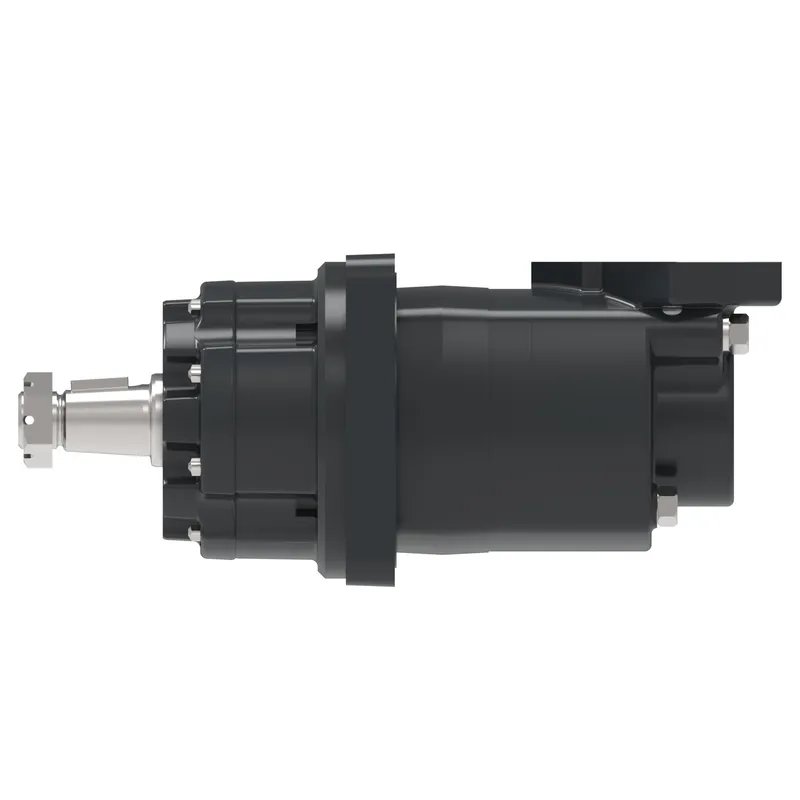

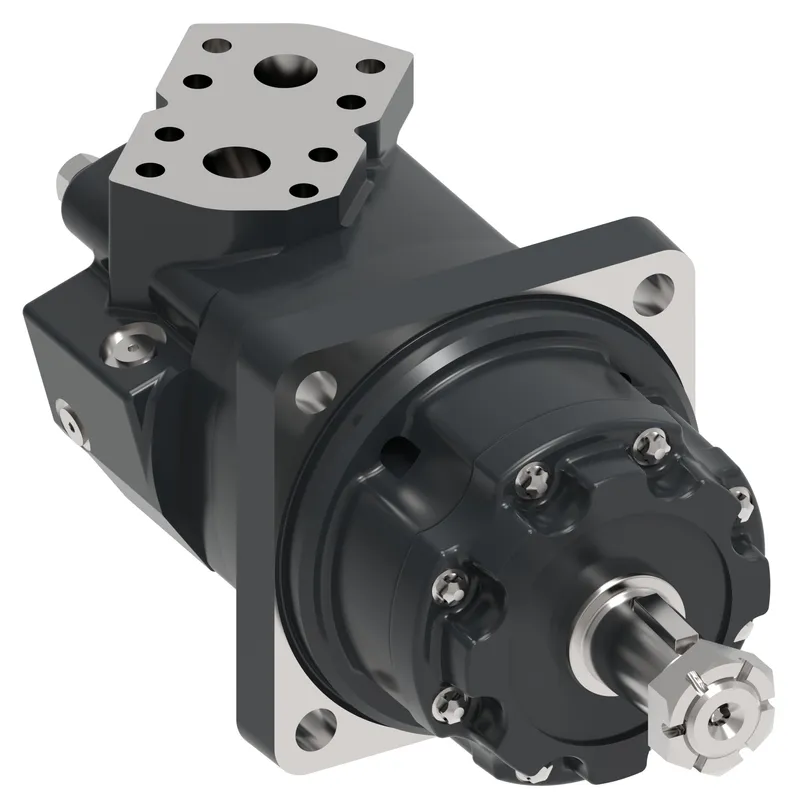

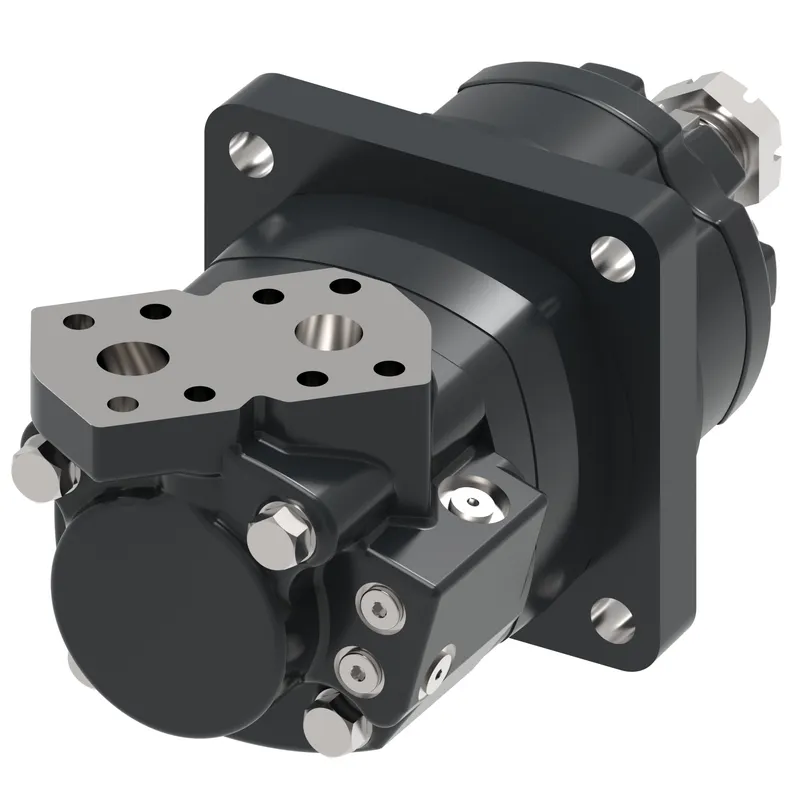

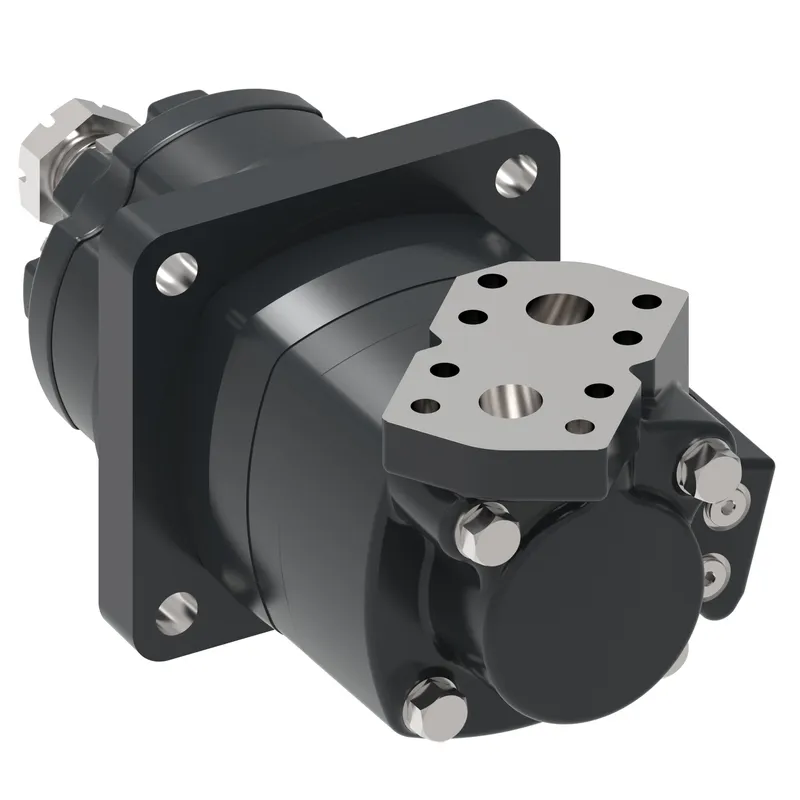

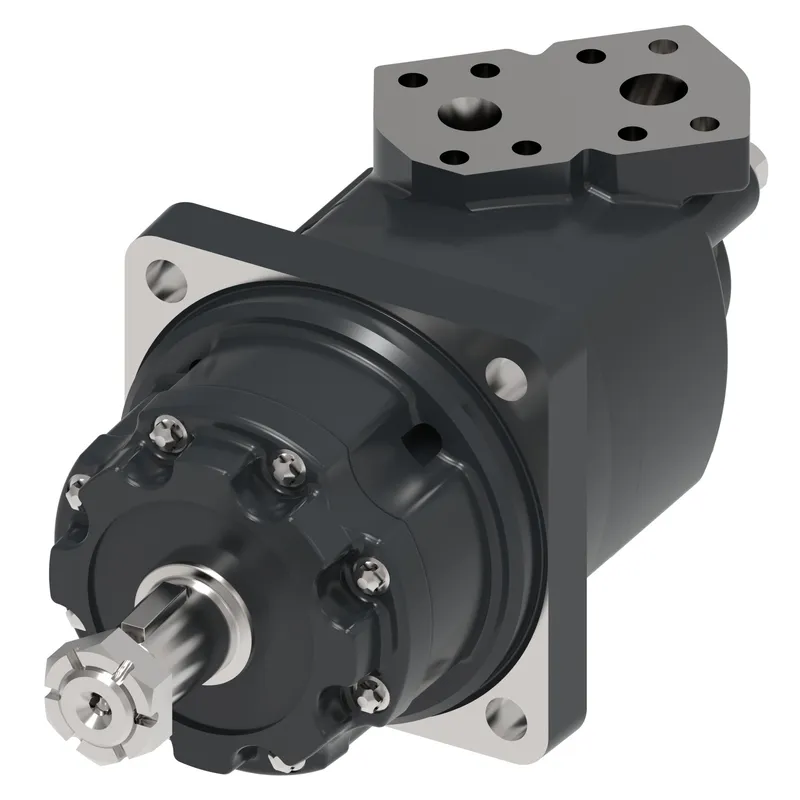

MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AC01AB02000000000000000F
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 110-1122-006 be shipped?
110-1122-006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 110-1122-006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 110-1122-006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 110-1122-006, subject to availability and destination.
Danfoss MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AC01AB02000000000000000F, manufacturer part number 110-1122-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | M04381AC01AB02000000000000000F |
| Motor Series | 4000 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Mounting type | 4 W P140 B165 H14 |
| Motor size | 625 |
| Geometric displacement [cm3/r [in3/r]] | 623.9 [38.07] |
| Motor type | Wheel |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Wheel |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 139.7 x 9.1, 165.1, 14.3 [5.50 x 0.36, 6.50, 0.56] |
| Shaft type | Straight |
| Shaft dimension | Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 5/8 inch |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 1 1/16 - 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint information | n/a |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 61232-000 |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design code | 06 |
| Brand | Danfoss |
| Low pressure relief | None |
| Output shaft type | Str 1.25in 3/8-16 s5/16x1 5/8 |
| Seal options | Standard |
| Series | 4000 series |
| Sub brand | Char-Lynn |
