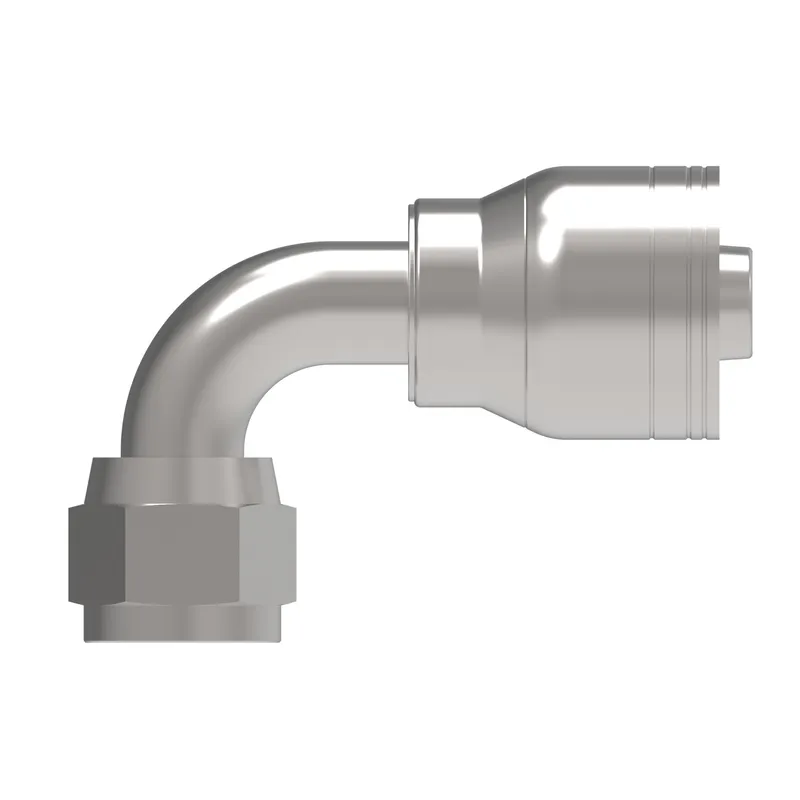

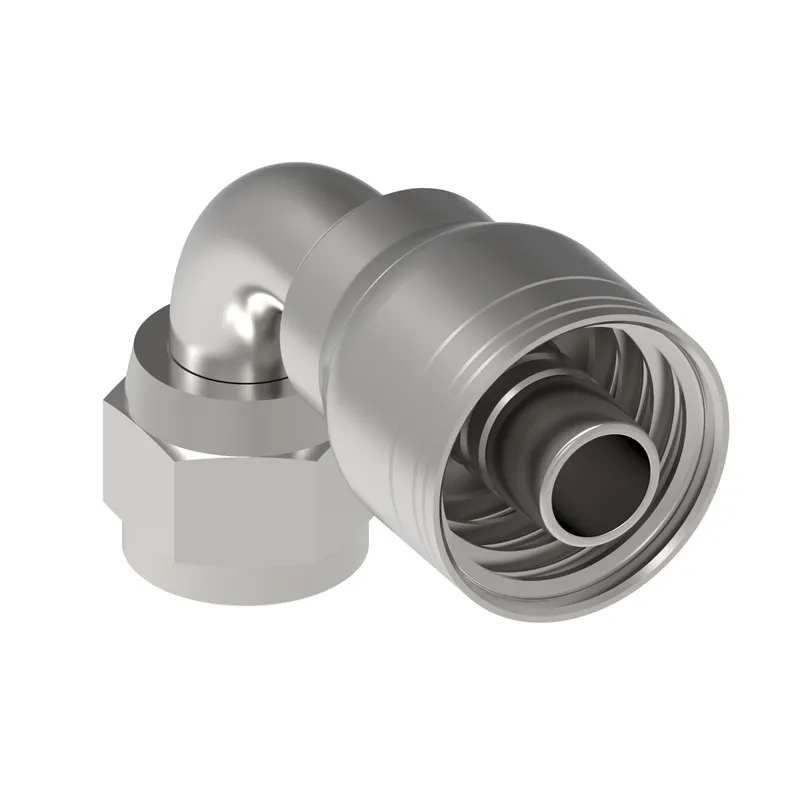

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Name: Hose End (perm) 1S/1R 90 D F SAE 37 Sw
Brand: Danfoss (Drives)
SKU: 10Z-670

MPN: 10Z-670 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 10Z-670 be shipped?

10Z-670 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10Z-670 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10Z-670 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10Z-670, subject to availability and destination.

Hose End (perm) 1S/1R 90 D F SAE 37 Sw - 10Z-670

Specifications

EAN/UPC	639789291776
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.630
Compatible hose ID MM	16.002
Compatible tube OD IN	0.63
Compatible tube OD MM	16.002
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.190
Drop dimension MM	30.2
End size 1	-10
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.000
Hex size 1 MM	25.4
Hose cut off factor IN	1.550
Hose cut off factor MM	39.370
Hose size	-10
Inside diameter IN	0.450
Inside diameter MM	11.430
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.630
Tube OD 1 MM	16.002
