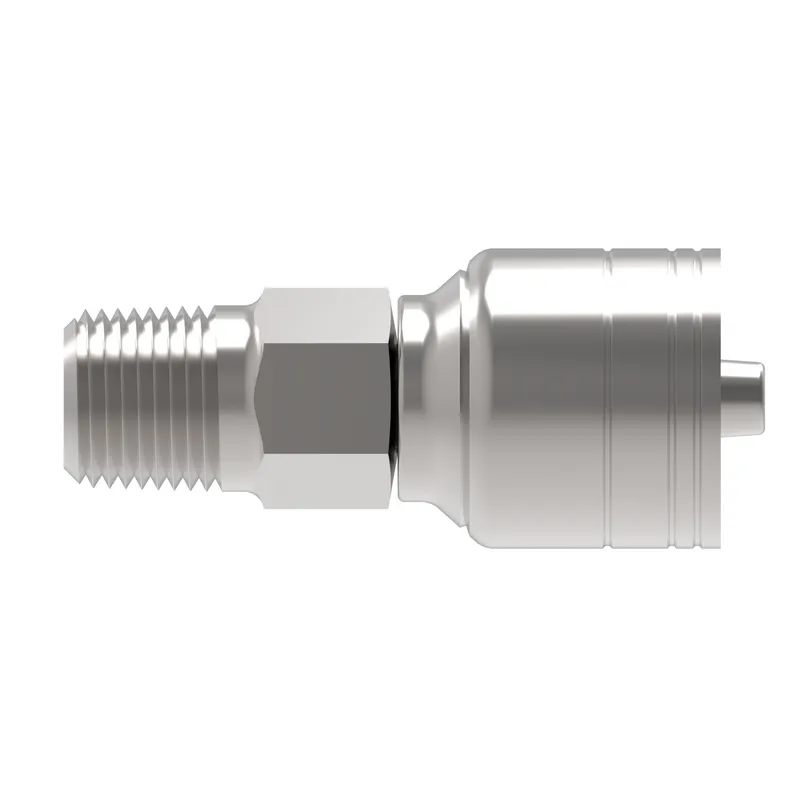

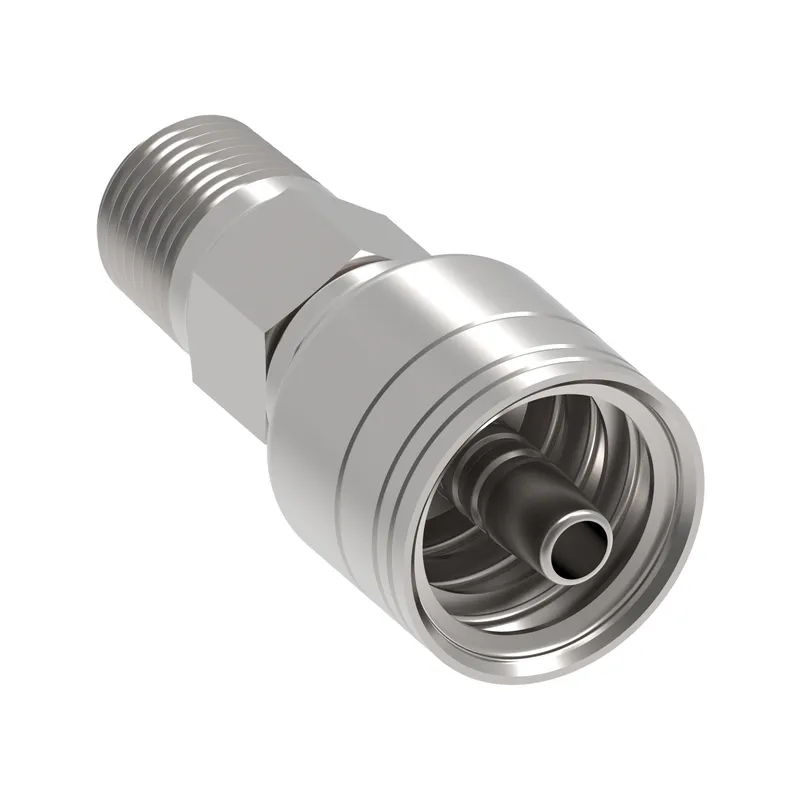

Hose End (perm) 1S/1R Str -08 M Pipe

Name: Hose End (perm) 1S/1R Str -08 M Pipe
Brand: Danfoss (Drives)
SKU: 10Z-108

MPN: 10Z-108 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 10Z-108 be shipped?

10Z-108 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10Z-108 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10Z-108 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10Z-108, subject to availability and destination.

Danfoss Hose End (perm) 1S/1R Str -08 M Pipe, manufacturer part number 10Z-108. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789293312
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.630
Compatible hose ID MM	16.002
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-8
End type 1	Male pipe (NPT)
Finish plating	Dura-Kote
Hex size 1 IN	0.940
Hex size 1 MM	23.9
Hex size 2 IN	0.940
Hex size 2 MM	23.9
Hose cut off factor IN	1.580
Hose cut off factor MM	40.132
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.700
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
