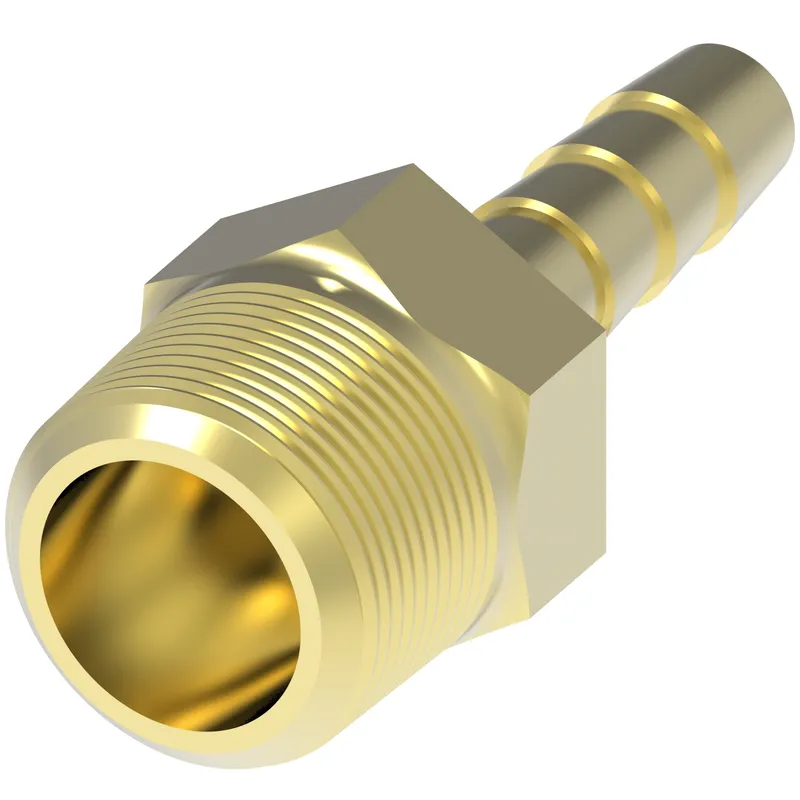

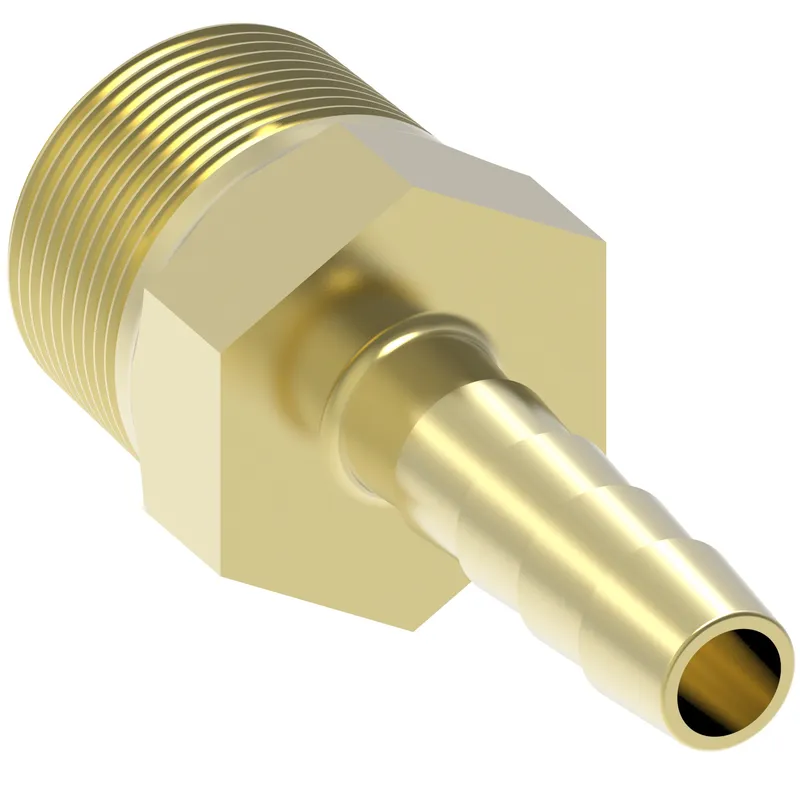

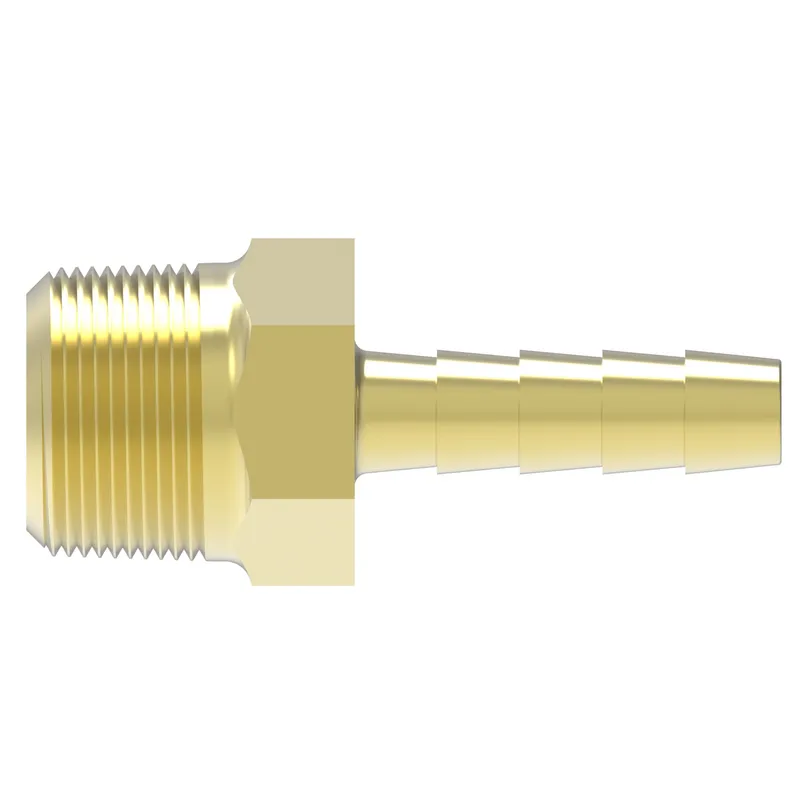

HOSE INSERT ASSY,B1/12,NPTF-M/12,B,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10512B-112-BG be shipped?
10512B-112-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10512B-112-BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10512B-112-BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10512B-112-BG, subject to availability and destination.
Danfoss HOSE INSERT ASSY,B1/12,NPTF-M/12,B,STR, manufacturer part number 10512B-112-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.920 |
| A dimension MM | 48.760 |
| Angle shape | Straight |
| Construction Style | Crimp |
| End type 1 | 24 deg. tube port heavy duty |
| Hose cut off factor IN | 1.260 |
| Hose cut off factor MM | 32.000 |
| Hose size | -12 |
| Inside diameter IN | 0.700 |
| Inside diameter MM | 18.000 |
| Product height in | 1.130 |
| Product height mm | 28.702 |
| Product length in | 1.920 |
| Product length mm | 48.768 |
| Product material | Brass |
| Product width in | 1.130 |
| Product width mm | 28.702 mm |
| Series | 105 B |
| Thread size 1 | 3/4-14 NPTF |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
