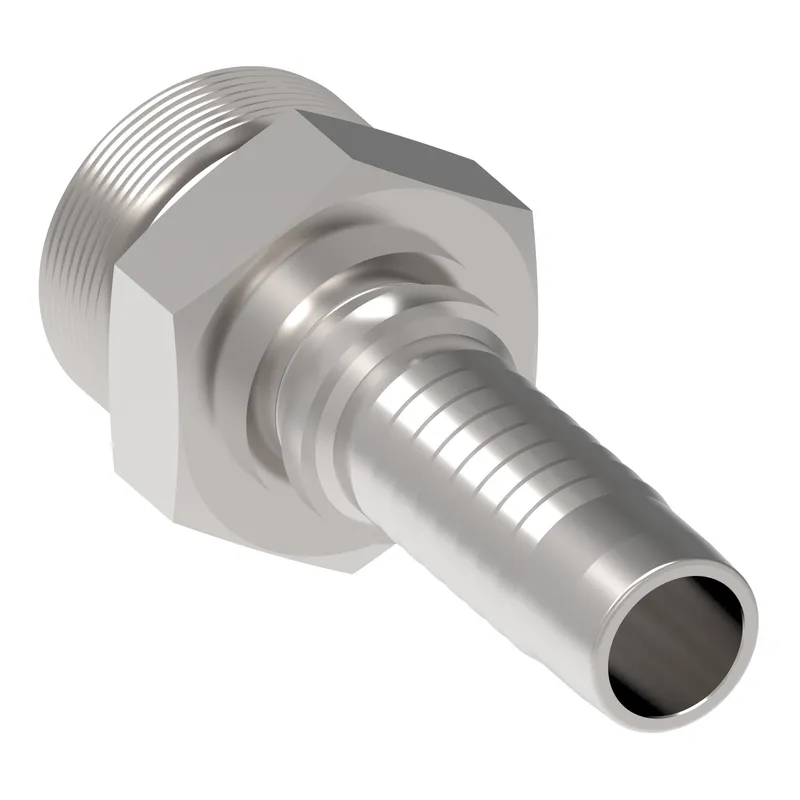

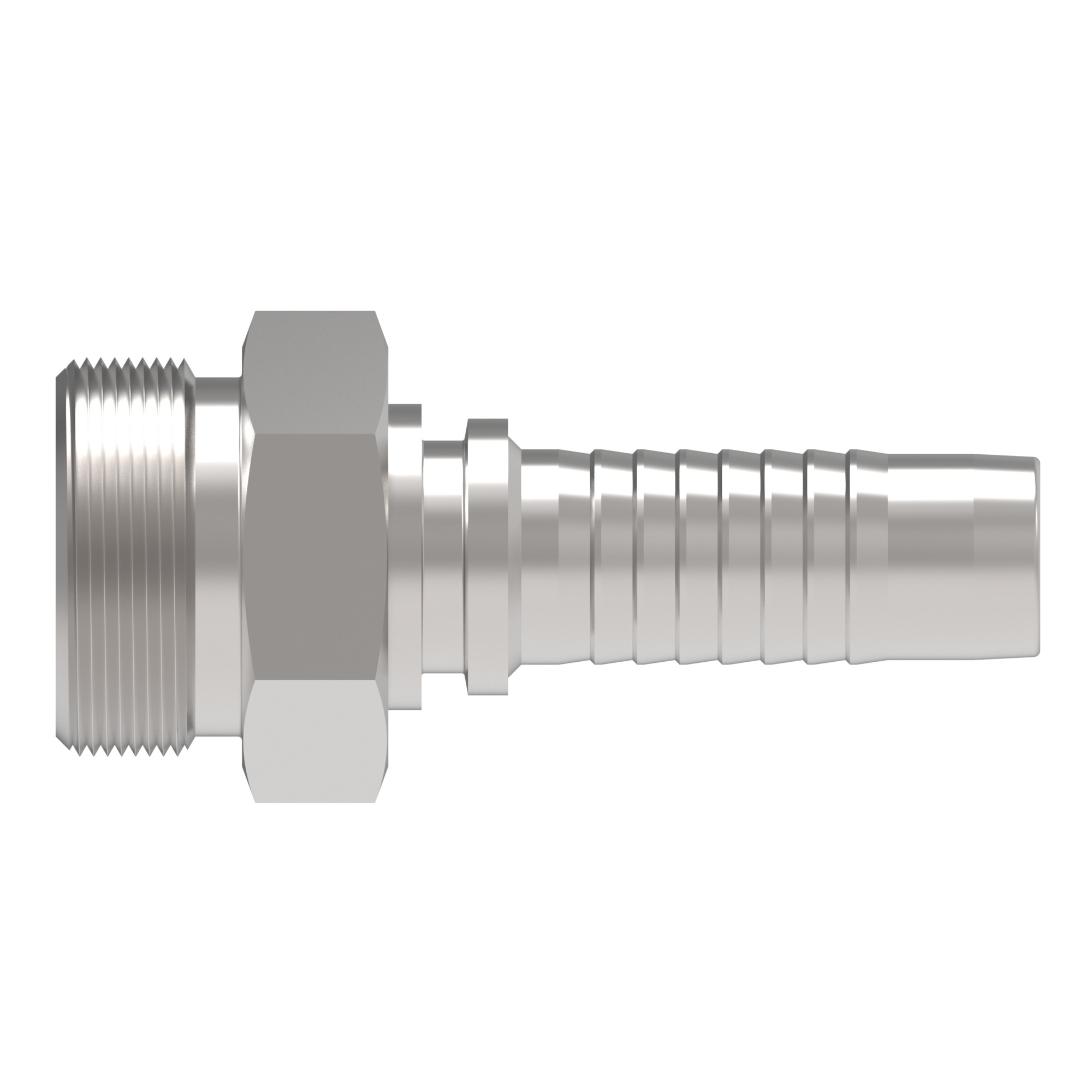

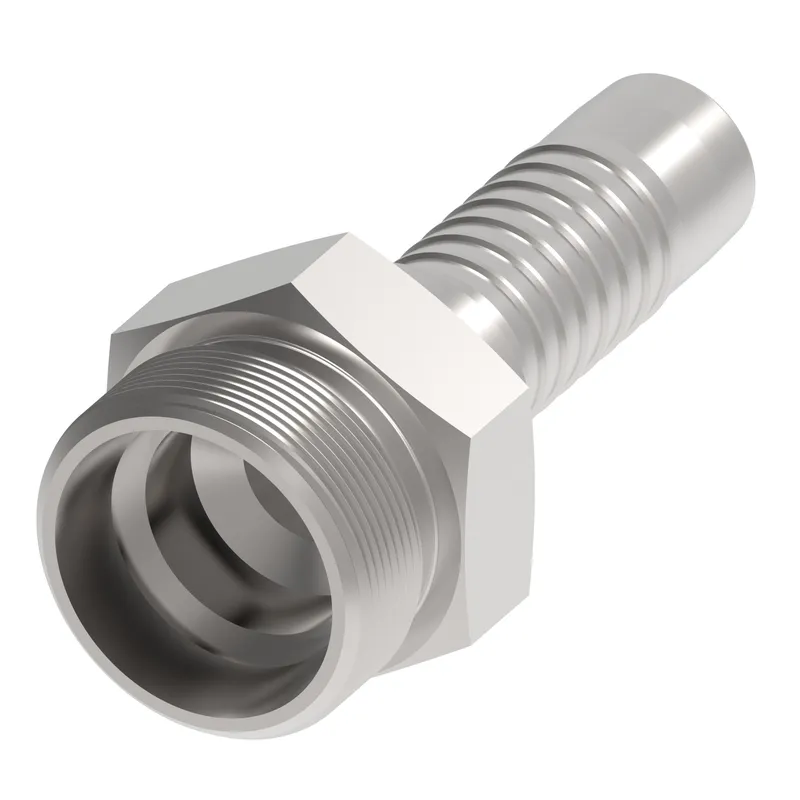

HOSE NIPPLE ASSY,2P/16,DKOL/45,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10412F-45-16Z be shipped?
10412F-45-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10412F-45-16Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10412F-45-16Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10412F-45-16Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/16,DKOL/45,CS,STR, manufacturer part number 10412F-45-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.890 |
| A dimension MM | 99.000 |
| Angle shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| End type 1 | 24 deg. DKO swivel light duty |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.811 |
| Hex size 1 MM | 46.000 |
| Hose cut off factor IN | 1.690 |
| Hose cut off factor MM | 43.000 |
| Hose size | -16 |
| Inside diameter IN | 0.7800 |
| Inside diameter MM | 20.0000 |
| Product height in | 2.091 |
| Product height mm | 53.120 |
| Product length in | 3.898 |
| Product length mm | 99.000 |
| Product material | Carbon steel |
| Product width in | 1.811 |
| Product width mm | 46.000 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
