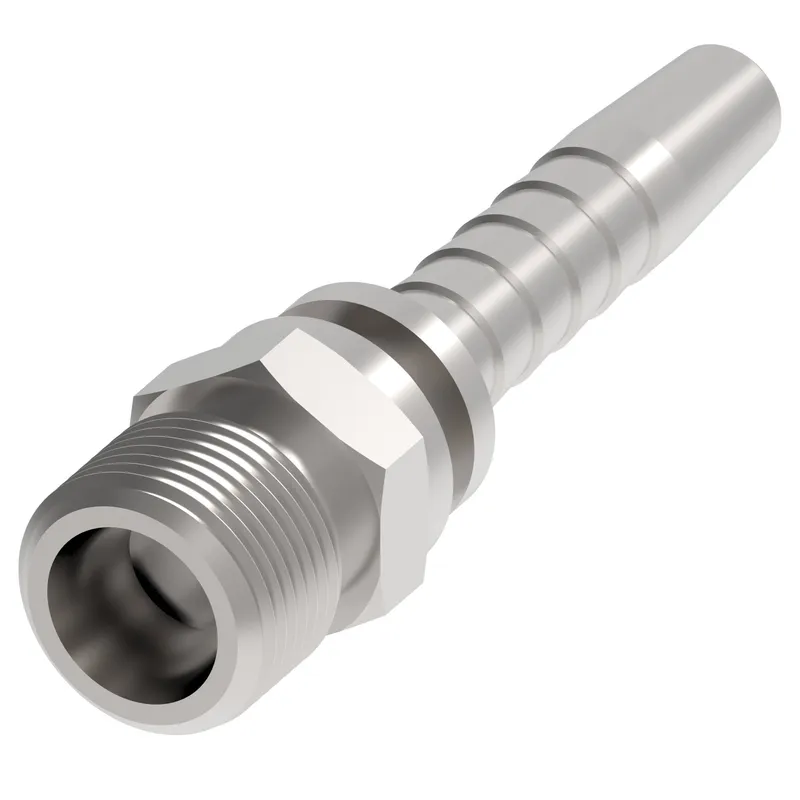

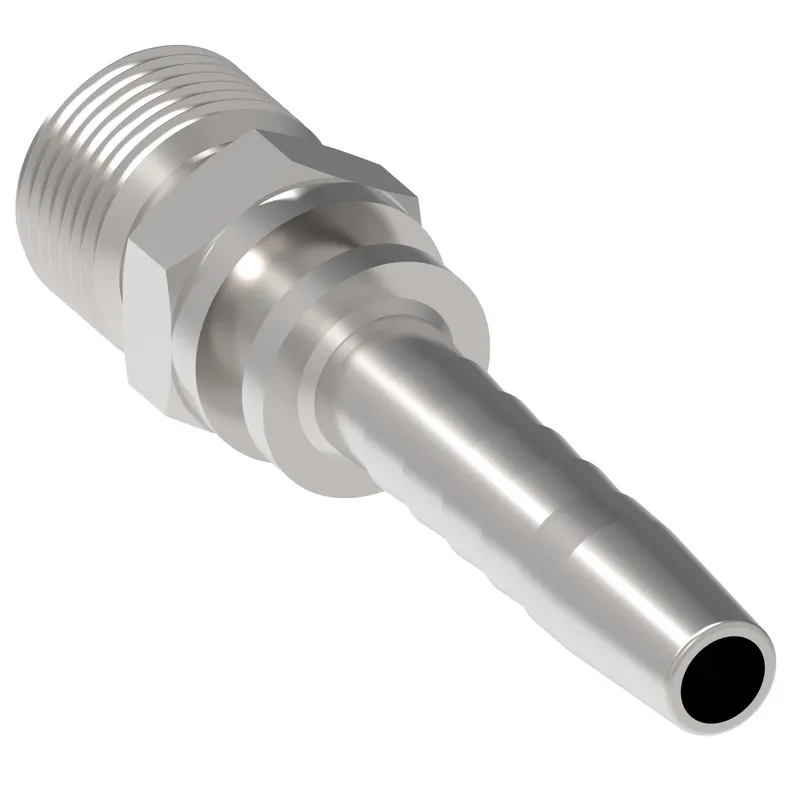

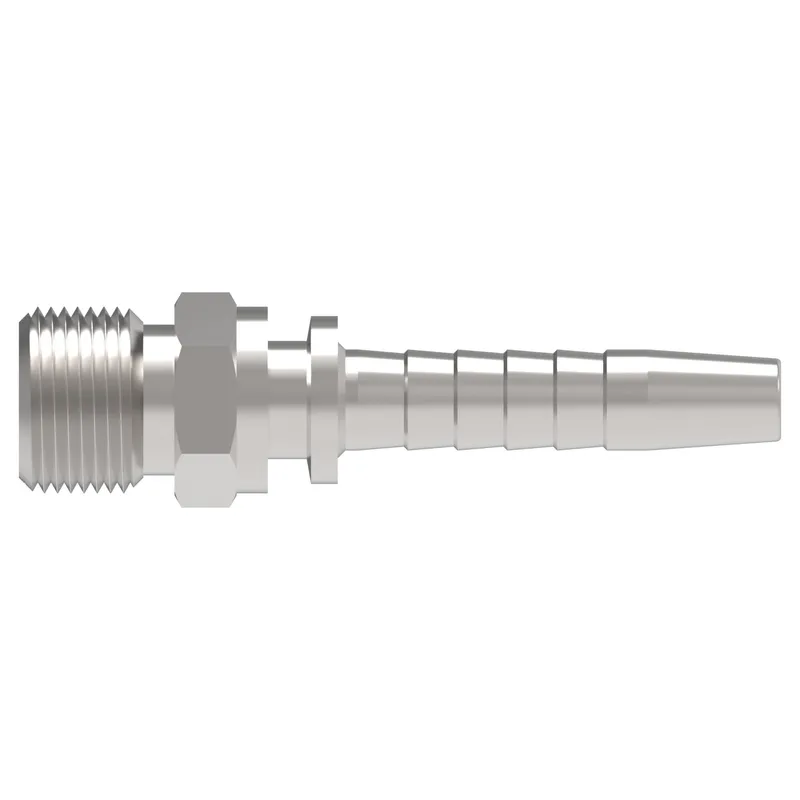

HOSE FTG, 1P/04, DKOL/12, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10411-12-04ZN be shipped?
10411-12-04ZN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10411-12-04ZN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10411-12-04ZN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10411-12-04ZN, subject to availability and destination.
Danfoss HOSE FTG, 1P/04, DKOL/12, CS, STR, manufacturer part number 10411-12-04ZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.900 |
| A dimension MM | 48.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Crimp |
| End size 1 | -12 |
| Finish plating | Zinc nickel |
| Hex size 1 IN | 0.470 |
| Hex size 1 MM | 11.938 |
| Hose cut off factor IN | 0.800 |
| Hose cut off factor MM | 20.500 |
| Hose size | -4 |
| Inside diameter IN | 0.1500 |
| Inside diameter MM | 4.0000 |
| Product height in | 0.540 |
| Product height mm | 13.716 |
| Product length in | 1.910 |
| Product length mm | 48.514 |
| Product material | Carbon steel |
| Product width in | 0.470 |
| Product width mm | 11.938 mm |
| Thread sealant | No |
| Thread size 1 | M12x1.5 |
