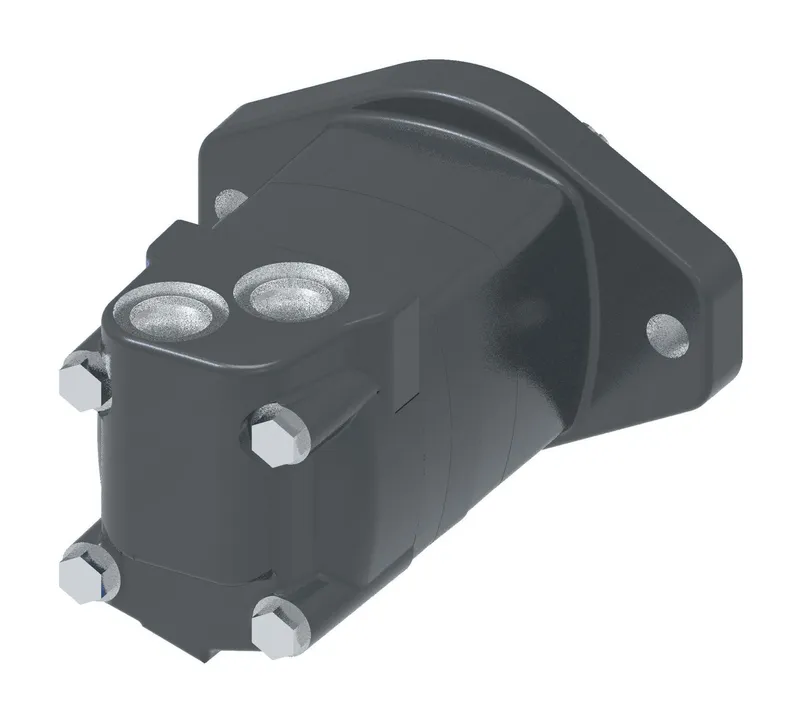

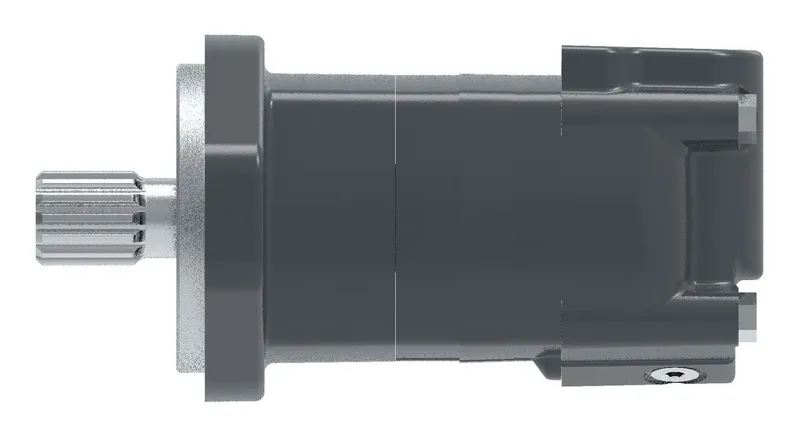

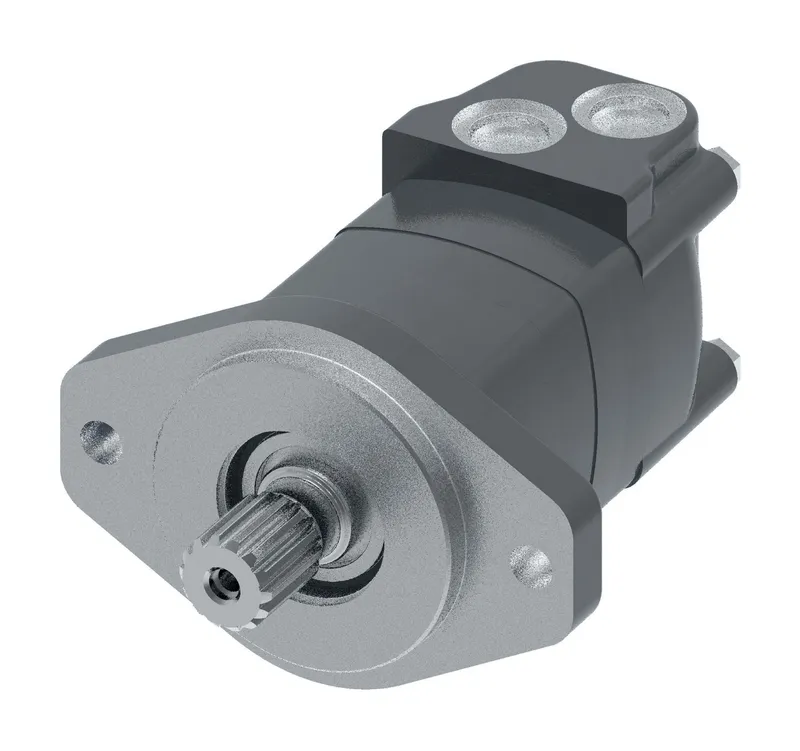

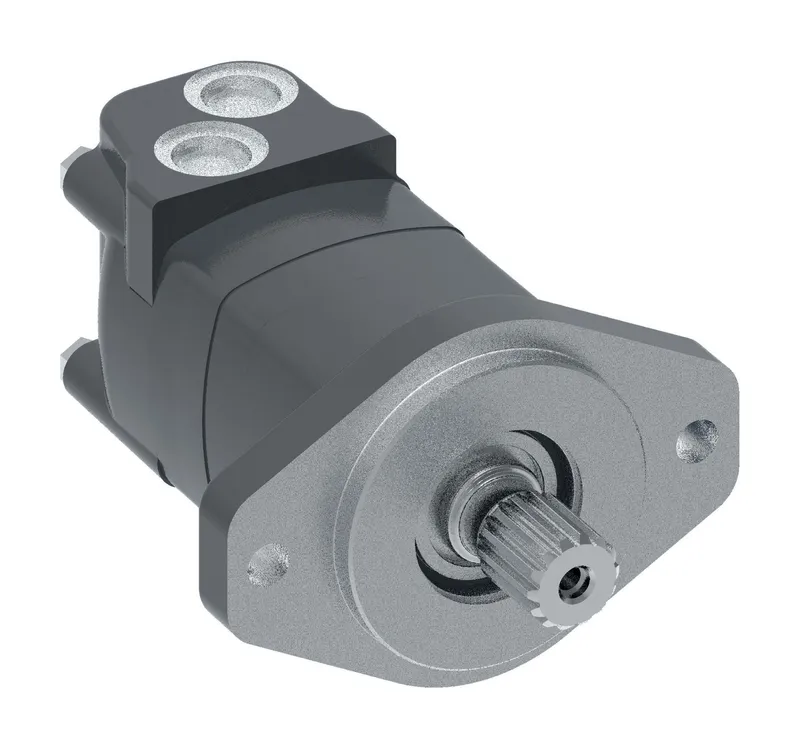

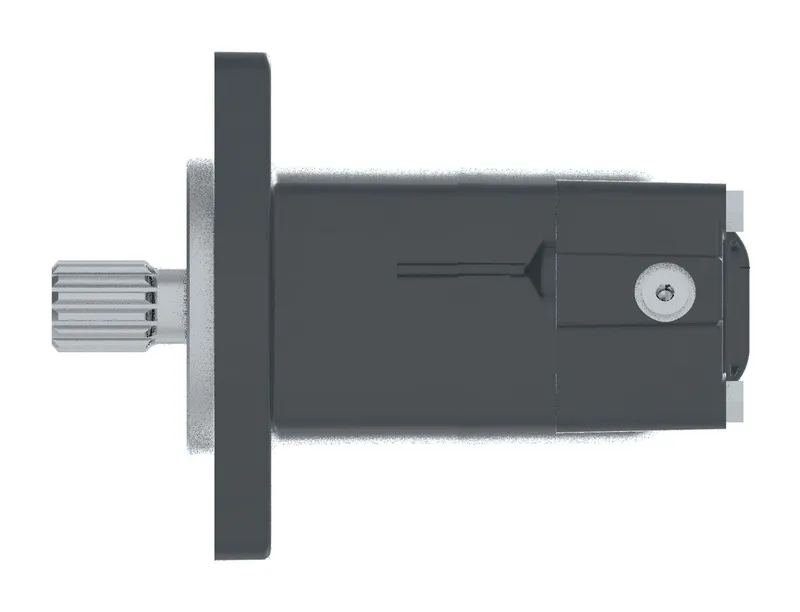

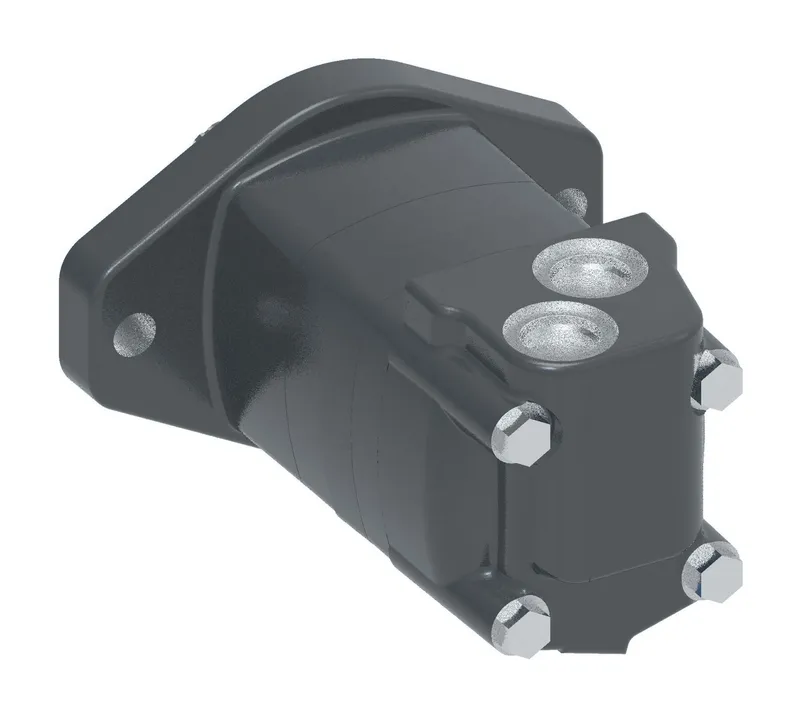

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AA0106213000000AAAAF
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 104-4911-006 be shipped?
104-4911-006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 104-4911-006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 104-4911-006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 104-4911-006, subject to availability and destination.
Danfoss MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AA0106213000000AAAAF, manufacturer part number 104-4911-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | M02049AF04AA0106213000000AAAAF |
| Motor Series | 2000 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Mounting type | 2 s p102 b146 h14 |
| Motor size | 80 |
| Geometric displacement [cm3/r [in3/r]] | 80.6 [4.92] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 2 Bolt - B |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 101.6 x 9.4, 146.0, 14.4 [4.00 x 0.37, 5.75, 0.57] SAE B |
| Shaft type | Splined |
| Shaft dimension | Dia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint information | n/a |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - High pressure |
| Seal Kit | No data available |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | Port A: Anti cavitation valve & Port B: Cross-over relief valve @ 206.8 bar [3000 psi] - Spec. Component |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design code | 06 |
| Brand | Danfoss |
| Low pressure relief | None |
| Output shaft type | SPL 14T 12/24 3/8-16 |
| Seal options | HP SHAFT SEAL |
| Series | 2000 series |
| Sub brand | Char-Lynn |
