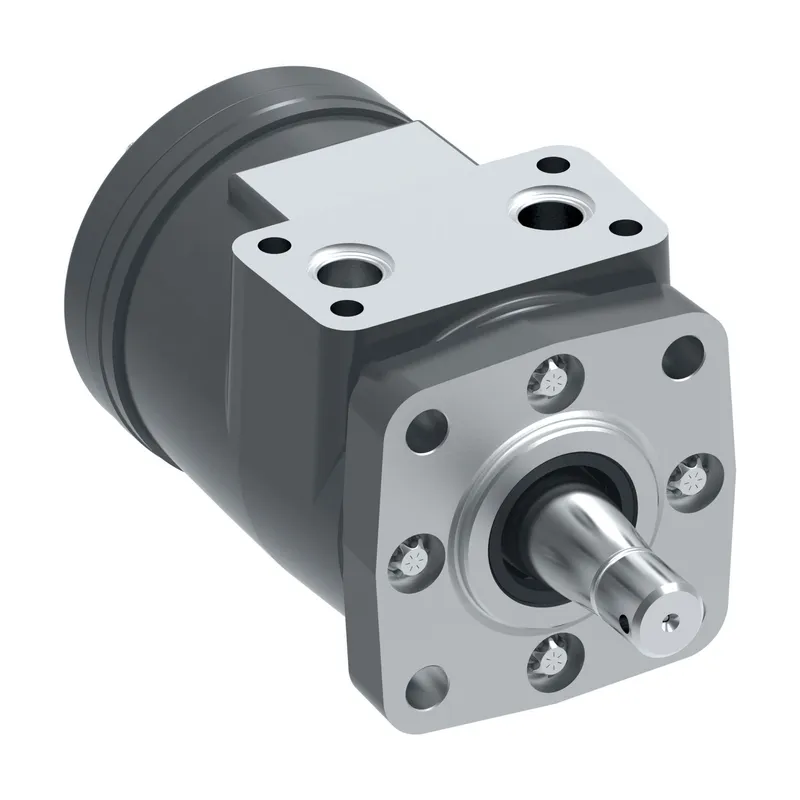

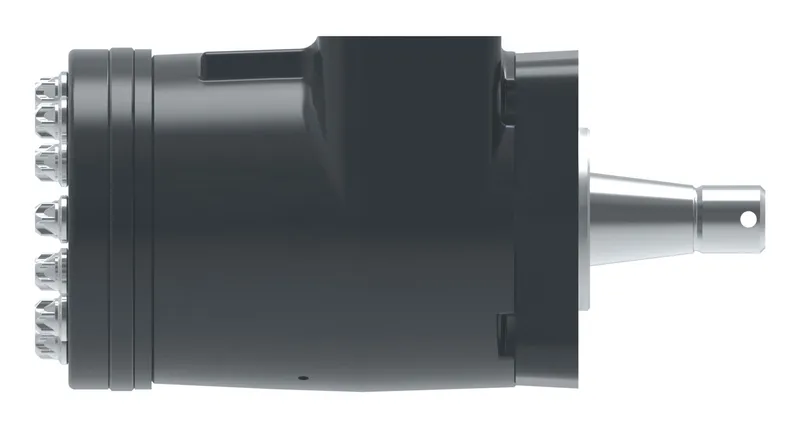

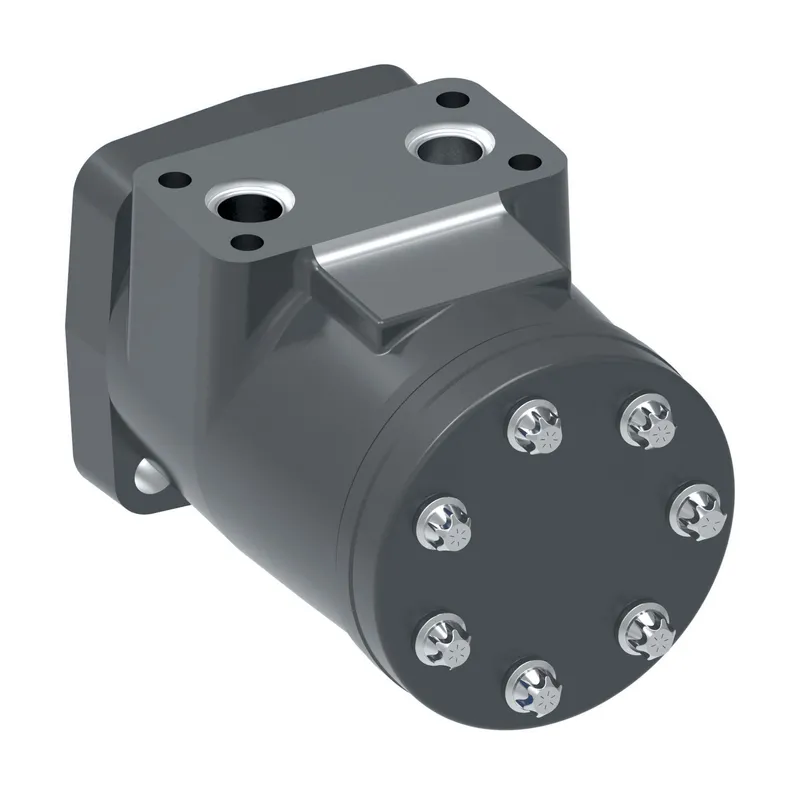

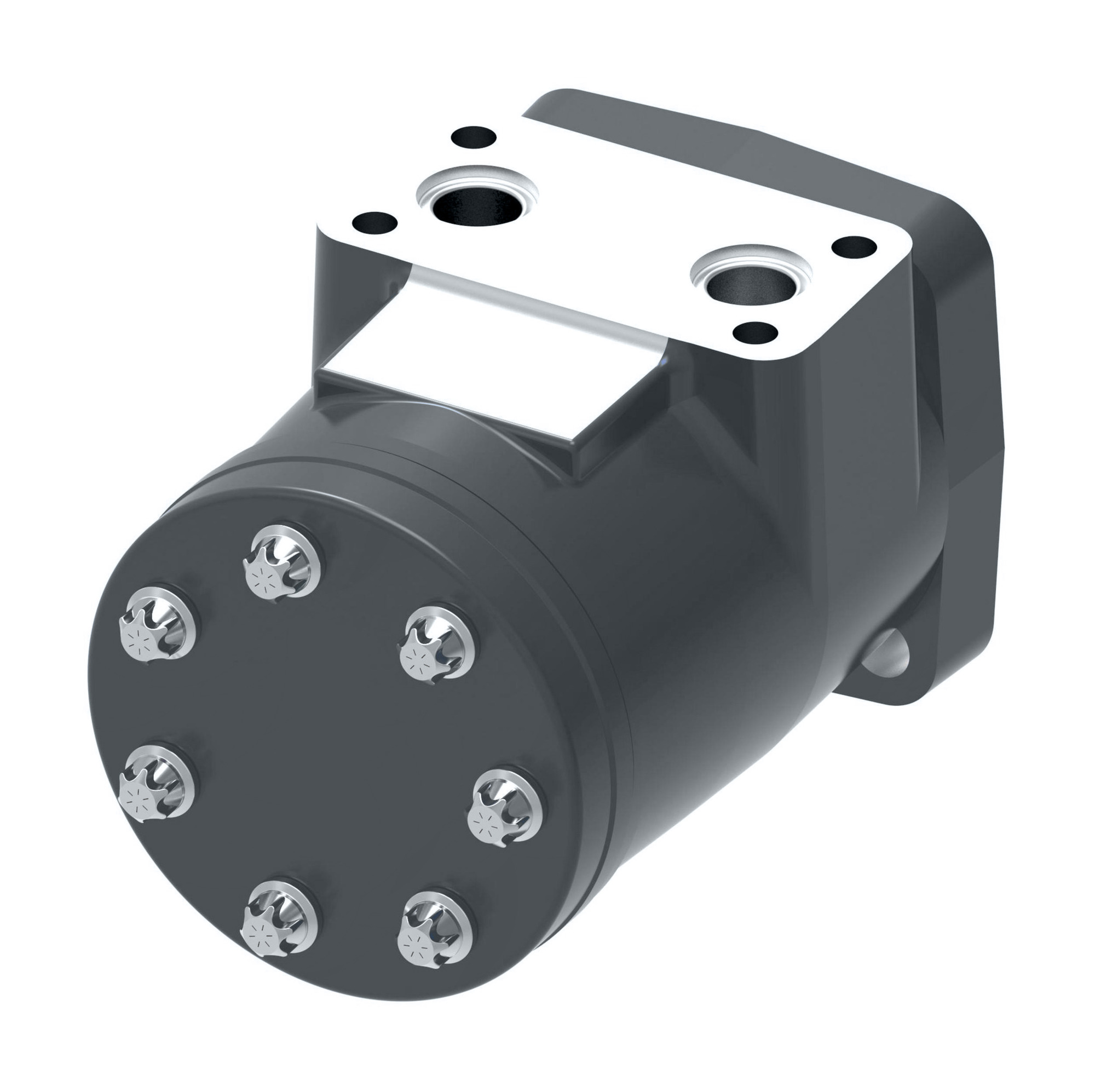

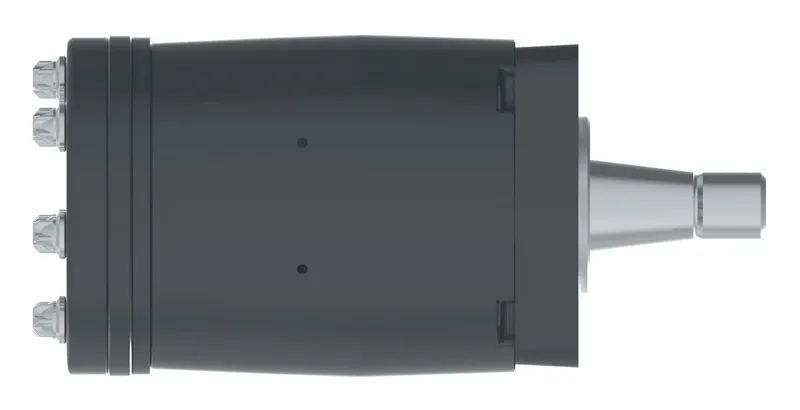

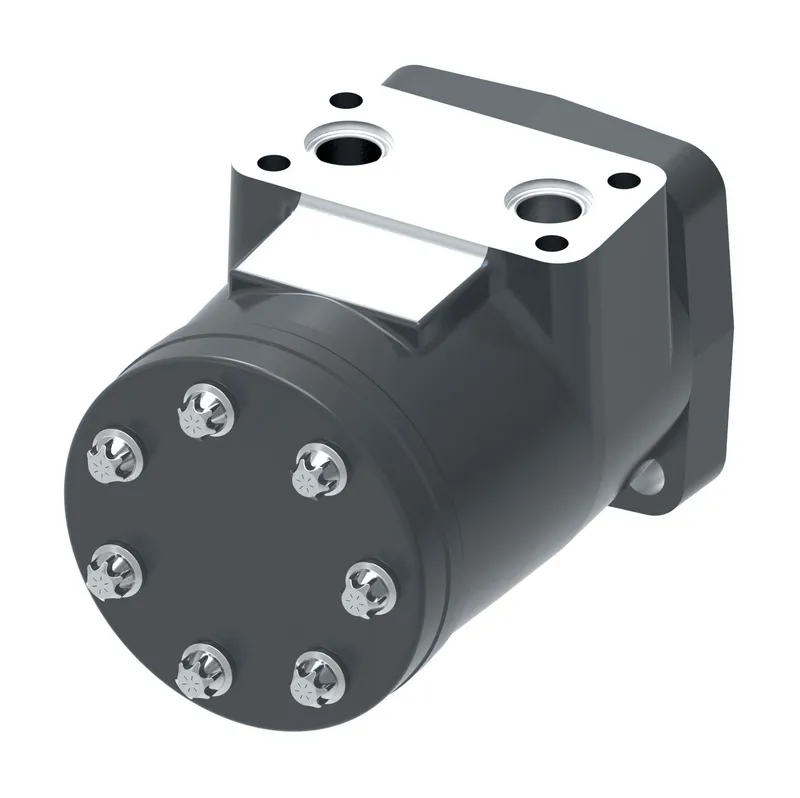

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA18AC0000000000000AA00J
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 101-3974-009 be shipped?
101-3974-009 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 101-3974-009 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 101-3974-009 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 101-3974-009, subject to availability and destination.
Danfoss MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA18AC0000000000000AA00J, manufacturer part number 101-3974-009. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MH0028BA18AC0000000000000AA00J |
| Motor Series | H Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Gerotor |
| Motor size | 45 |
| Geometric displacement [cm3/r [in3/r]] | 46 [2.8] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B] |
| Shaft type | TAPERED |
| Shaft dimension | Dia. 1 inch |
| Shaft Key | Woodruff key |
| Main port thread type | Manifold |
| Main port style | Sideport - aligned |
| Main port dimension | 0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 60540-000 |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 09 |
| Brand | Danfoss |
| Sub brand | Char-Lynn |
