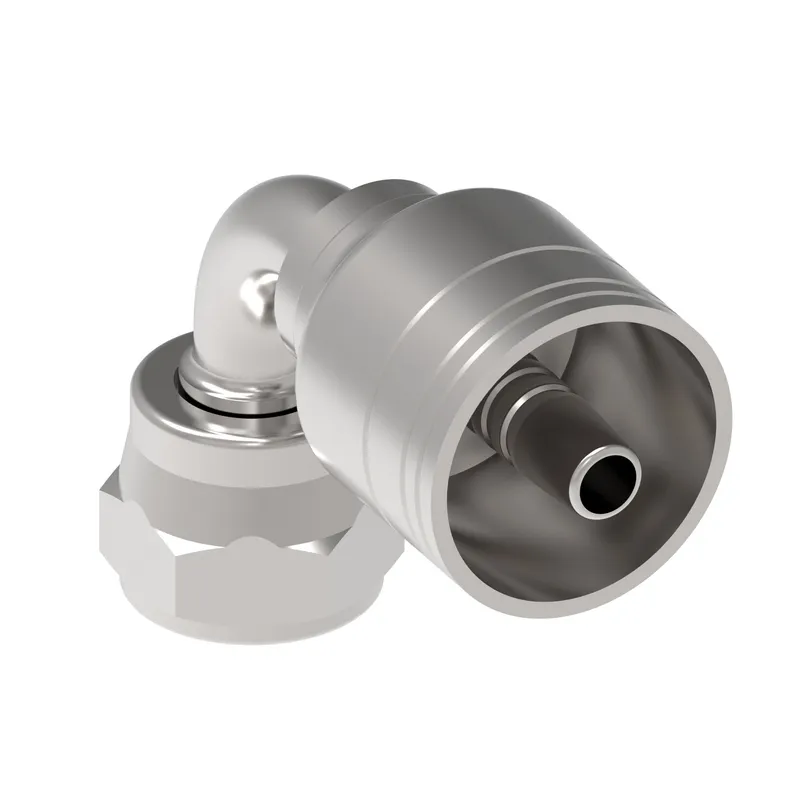

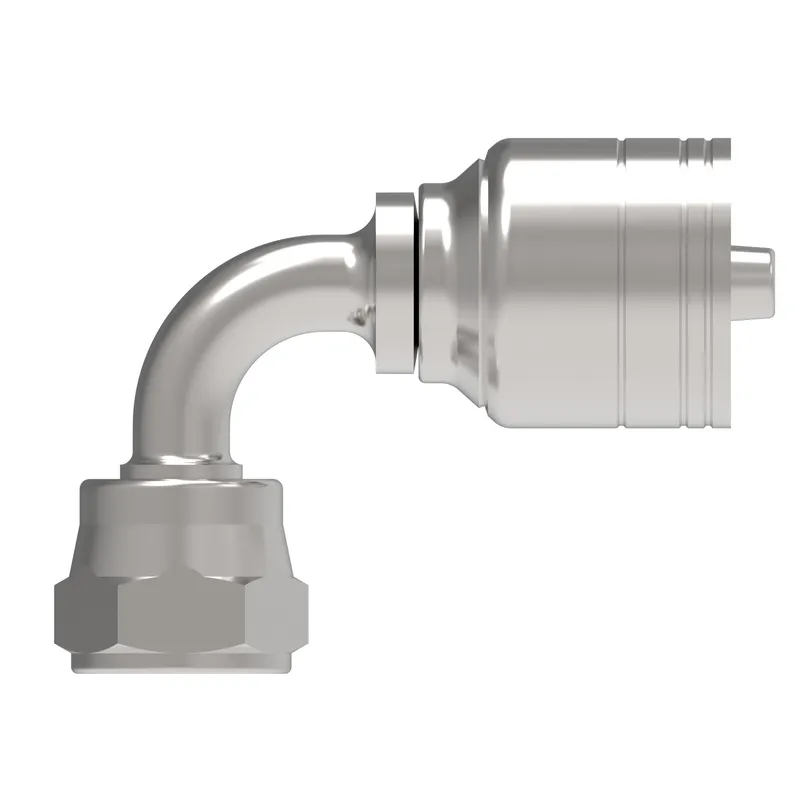

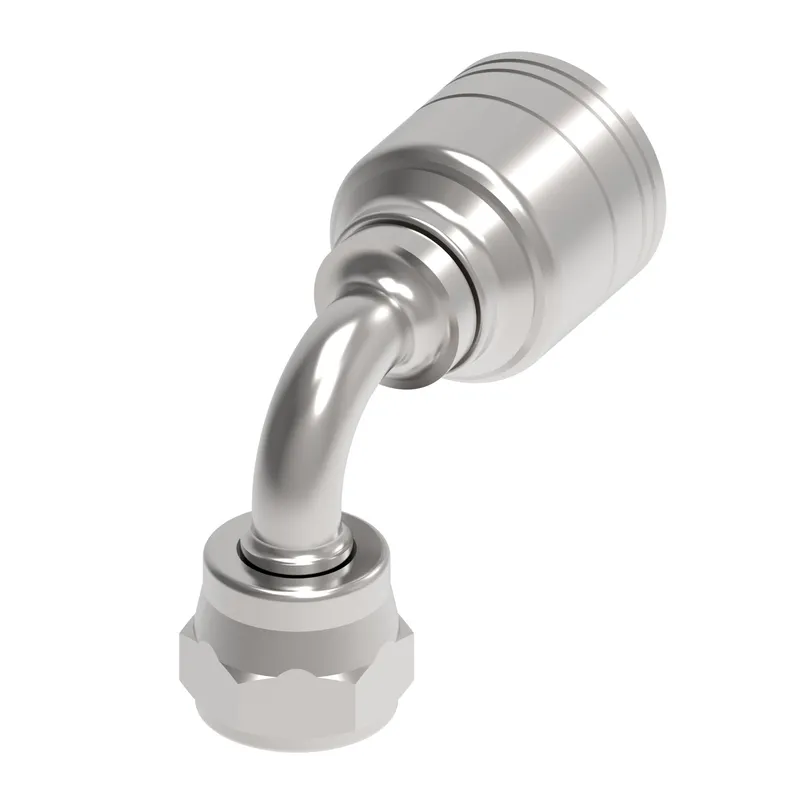

Ftng (perm), BSPP FEM SWIVEL, 90D ELBOW

Name: Ftng (perm), BSPP FEM SWIVEL, 90D ELBOW
Brand: Danfoss (Drives)
SKU: 08Z-80P

MPN: 08Z-80P · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 08Z-80P be shipped?

08Z-80P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-80P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-80P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-80P, subject to availability and destination.

Ftng (perm), BSPP FEM SWIVEL, 90D ELBOW - 08Z-80P

Specifications

EAN/UPC	639789320544
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	2.220
Drop dimension MM	56.4
End size 1	-6
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.9
Hose cut off factor IN	2.400
Hose cut off factor MM	60.960
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product material	Carbon steel
Thread sealant	No
