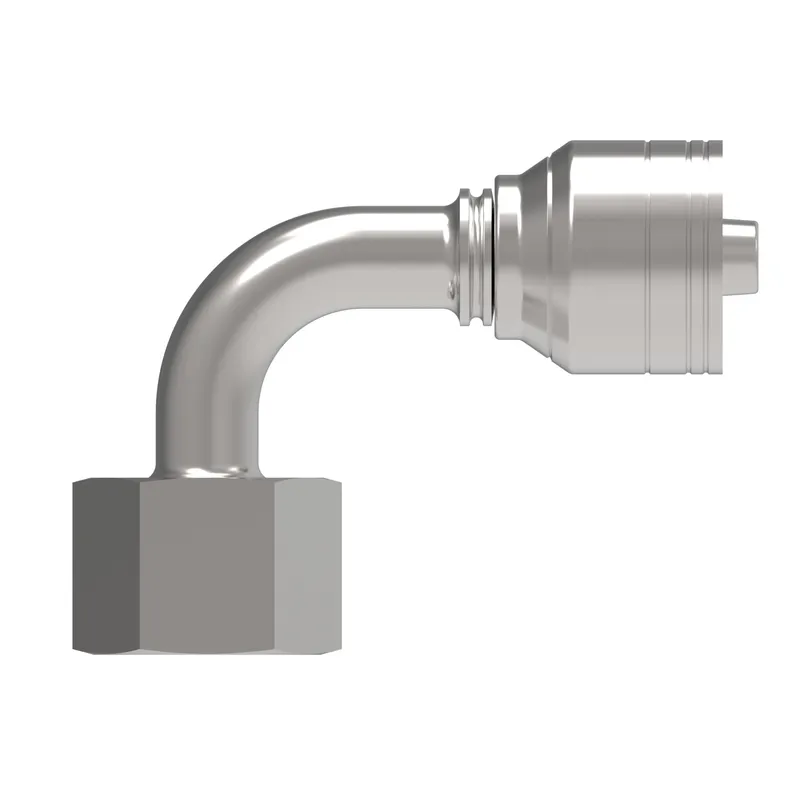

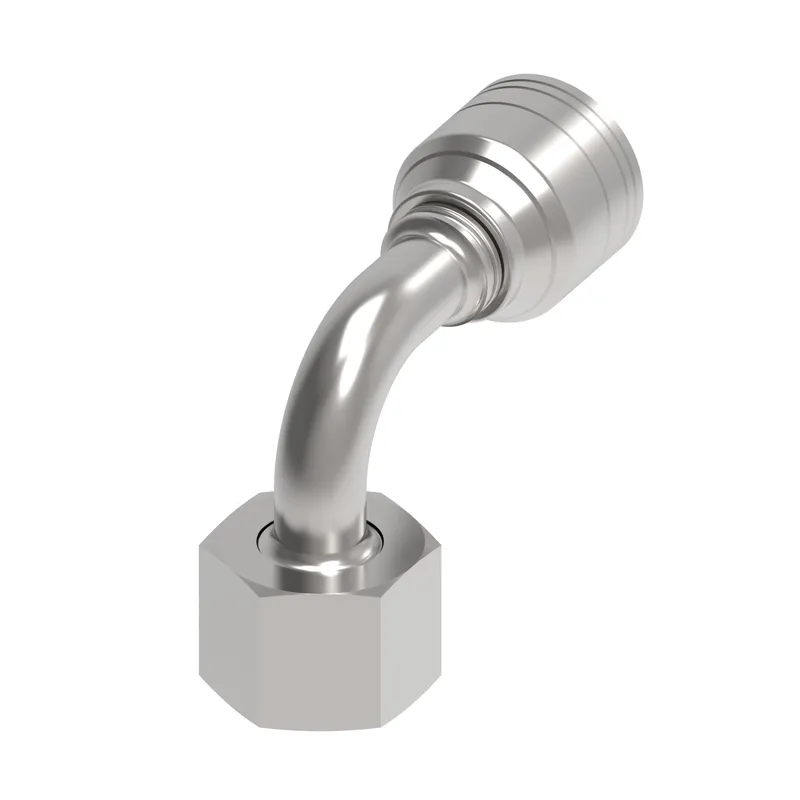

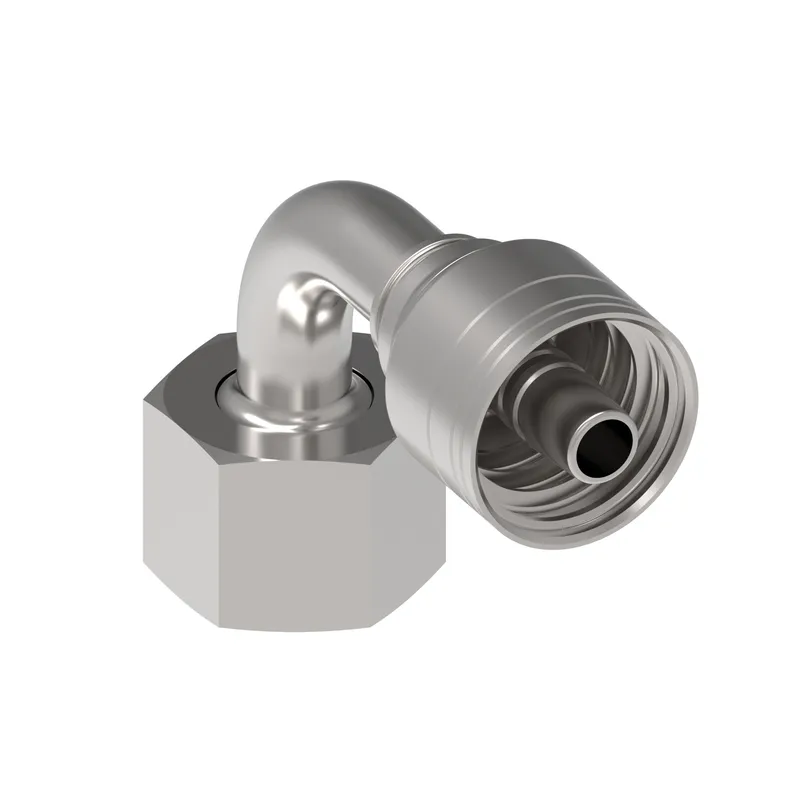

Hose End (perm) 1S/1R

Name: Hose End (perm) 1S/1R
Brand: Danfoss (Drives)
SKU: 06Z-62E-BG

MPN: 06Z-62E-BG · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 06Z-62E-BG be shipped?

06Z-62E-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 06Z-62E-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 06Z-62E-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 06Z-62E-BG, subject to availability and destination.

Danfoss Hose End (perm) 1S/1R, manufacturer part number 06Z-62E-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075335668
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.000
Drop dimension MM	35.00
Finish plating	Dura-Kote
Hex size 1 IN	0.940
Hex size 1 MM	23.900
Hose cut off factor IN	1.380
Hose cut off factor MM	35.052
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
