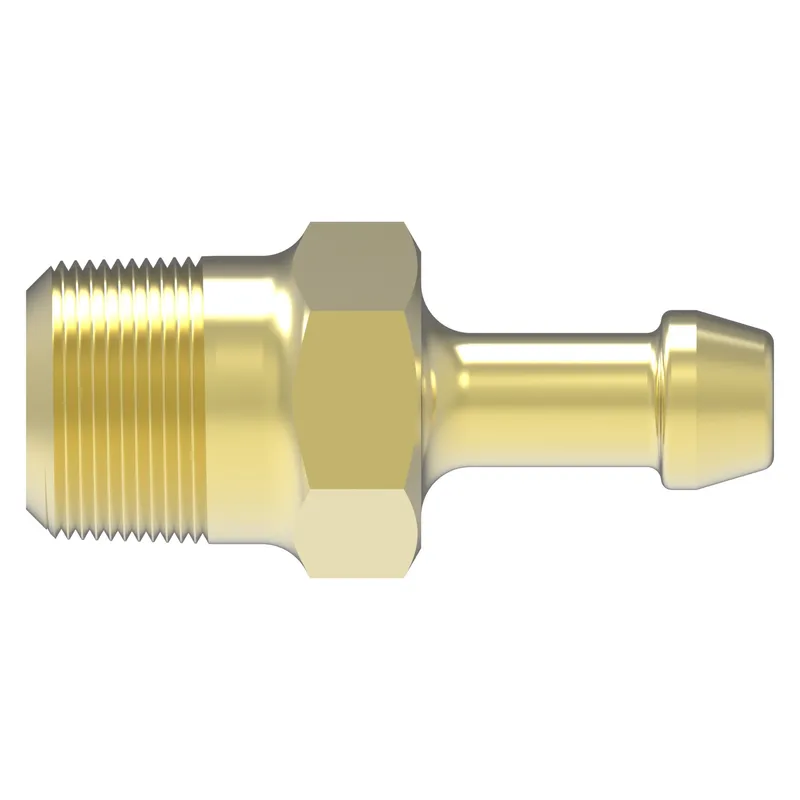

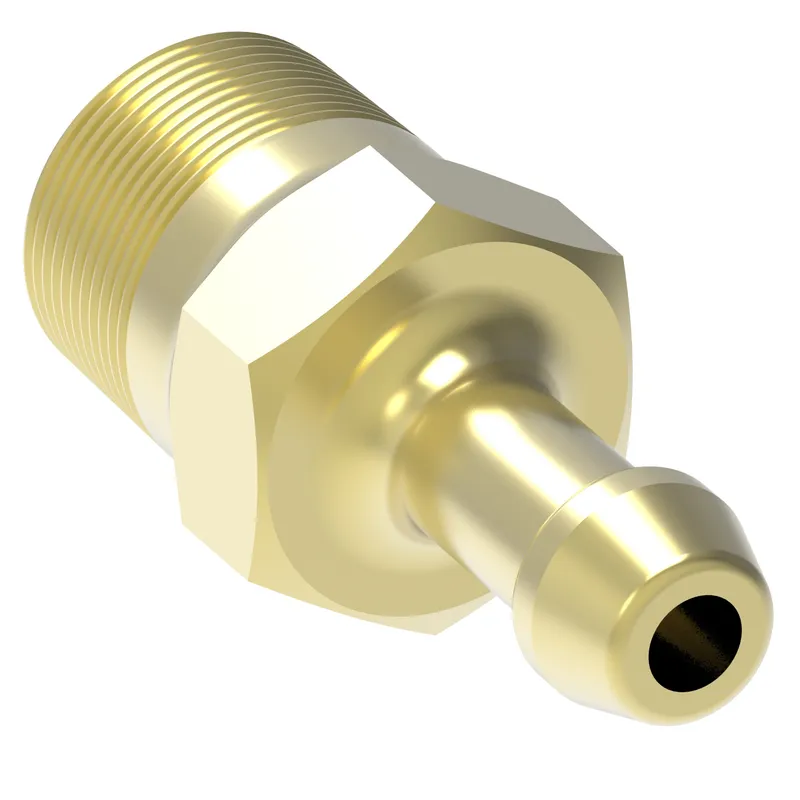

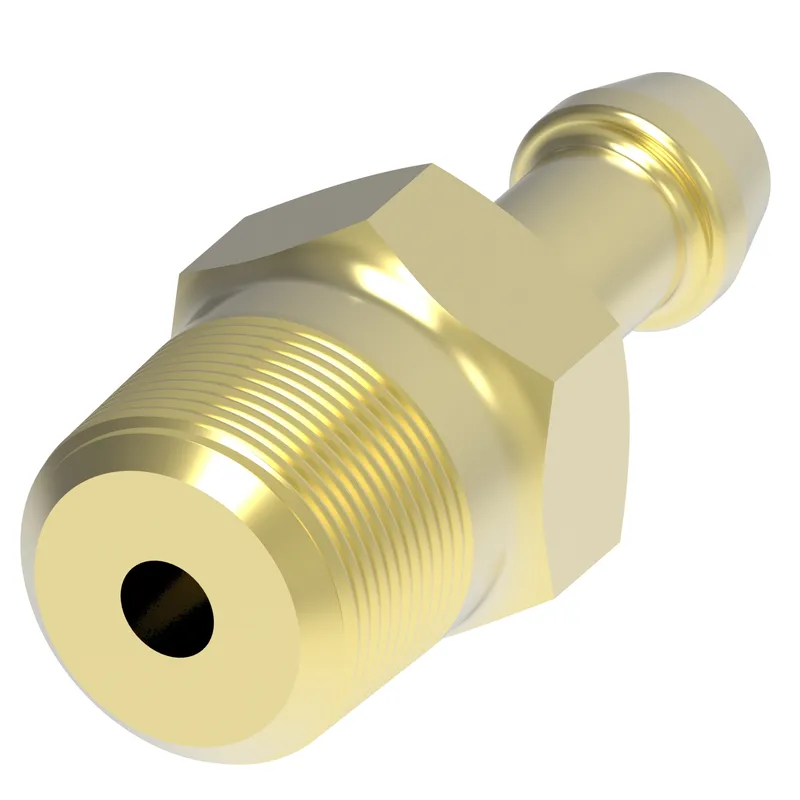

HOSE INSERT, 7B/04, NPTF-M/02, B, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 05704B-102-BG be shipped?
05704B-102-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 05704B-102-BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 05704B-102-BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 05704B-102-BG, subject to availability and destination.
Danfoss HOSE INSERT, 7B/04, NPTF-M/02, B, STR, manufacturer part number 05704B-102-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.060 |
| A dimension MM | 26.924 |
| Angle shape | Straight |
| Construction Style | Crimp |
| Hex size 1 IN | 0.438 |
| Hex size 1 MM | 11.100 |
| Hose cut off factor IN | 0.685 |
| Hose cut off factor MM | 17.399 |
| Inside diameter IN | 0.1560 |
| Inside diameter MM | 3.9620 |
| Product height in | 0.440 |
| Product height mm | 11.176 |
| Product length in | 1.060 |
| Product length mm | 26.924 |
| Product material | Brass |
| Product width in | 0.440 |
| Product width mm | 11.176 mm |
| Thread sealant | Yes |
| Thread size 1 | 1/8-27 NPTF |
| Working temperature max C | 82 |
| Working temperature max F | 180 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
