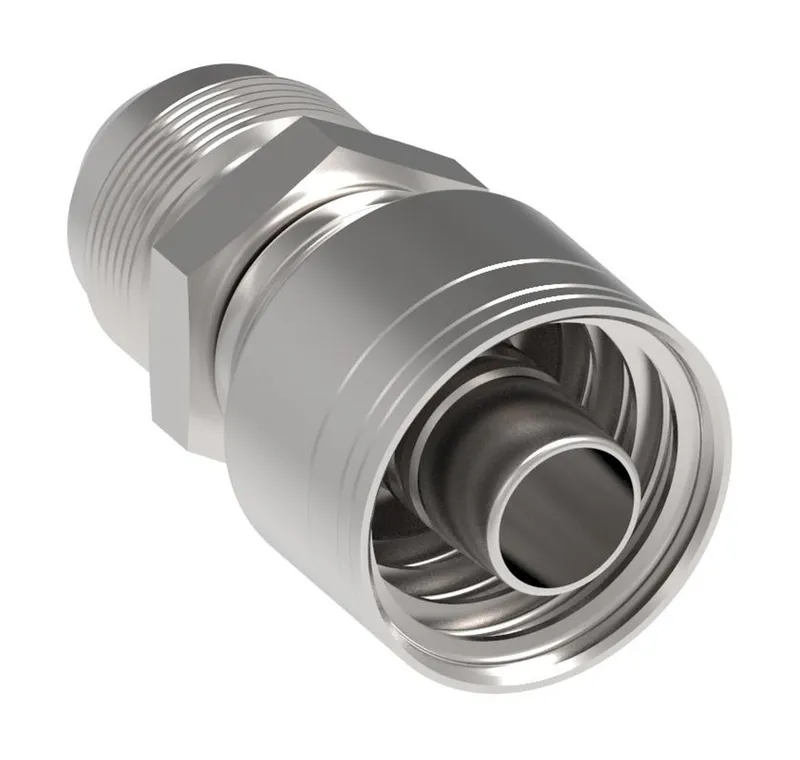

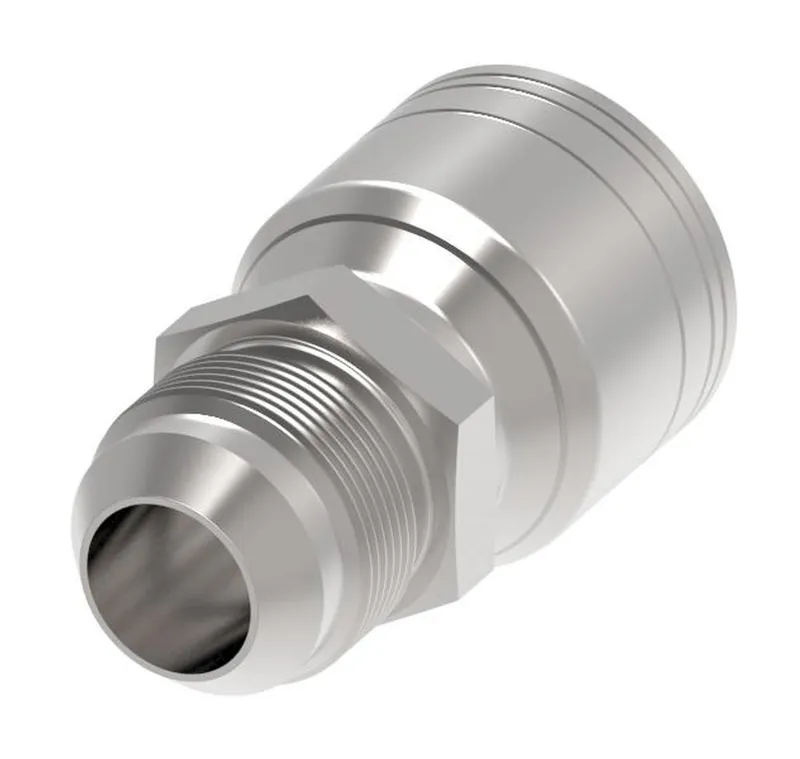

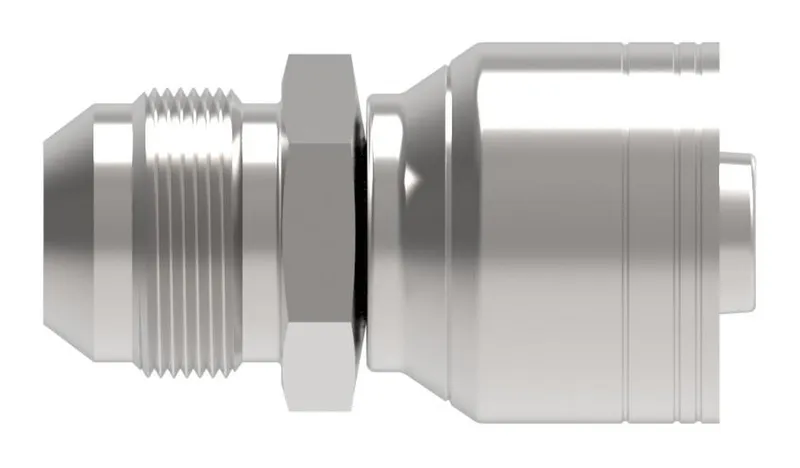

Hose End (perm) 1S/1R Str M SAE 37

Name: Hose End (perm) 1S/1R Str M SAE 37
Brand: Danfoss (Drives)
SKU: 04Z-506

MPN: 04Z-506 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 04Z-506 be shipped?

04Z-506 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 04Z-506 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 04Z-506 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 04Z-506, subject to availability and destination.

Danfoss Hose End (perm) 1S/1R Str M SAE 37, manufacturer part number 04Z-506. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292537
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-6
End type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.630
Hex size 1 MM	16.000
Hose cut off factor IN	0.930
Hose cut off factor MM	23.622
Hose size	-4
Inside diameter IN	0.1700
Inside diameter MM	4.3180
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525
