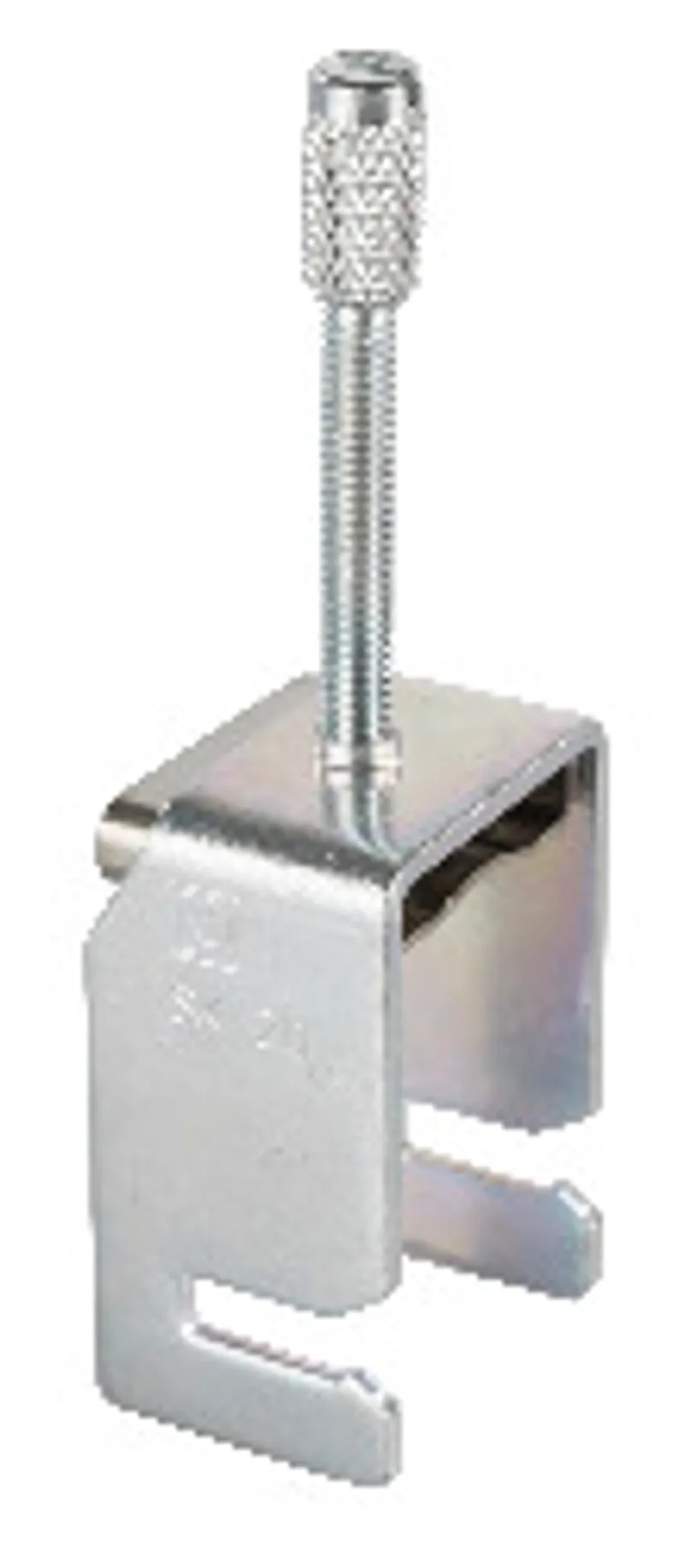

B&R X20AC0SA20.0010 – Accessories, shield connection clamp for X20
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Shield connection clamp |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20AC0SA20.0010 be shipped?
X20AC0SA20.0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20AC0SA20.0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20AC0SA20.0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AC0SA20.0010, subject to availability and destination.
X20 shield connection clamp 5 to 20 mm, 10 pieces
Specifications
Short description
| Accessories | Shield connection clamp for X20 |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Connection type | Screw terminal |
Mains connection
| Terminal cable cross section dimension of shield connection | 5 to 20 mm |
Mechanical properties
| Dimensions – Width | 24 mm |
| Dimensions – Length | 19.5 mm |
| Dimensions – Height | 75 mm |
| Torque for connections – M4 | 0.8 Nm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| X20 Shield connection clamp | PDF · 118 KB · 1.00 (03/13/2017) - EN |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
Certificates (1)
| EU Declaration of conformity PLC X20 | PDF · 169 KB · 2021/10 (11/08/2021) |
