Shield connection clamp Parts

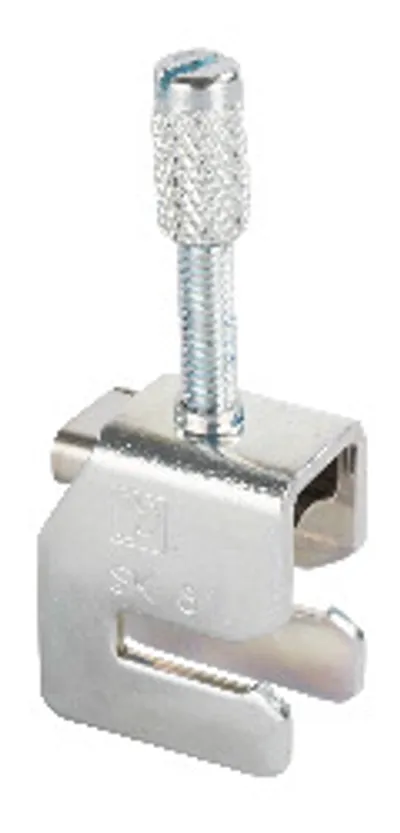

Available on requestB&R X20AC0SA08.0010 – Accessories, shield connection clamp for X20MPN: X20AC0SA08.0010 · B&R
Price on request
Request a quote

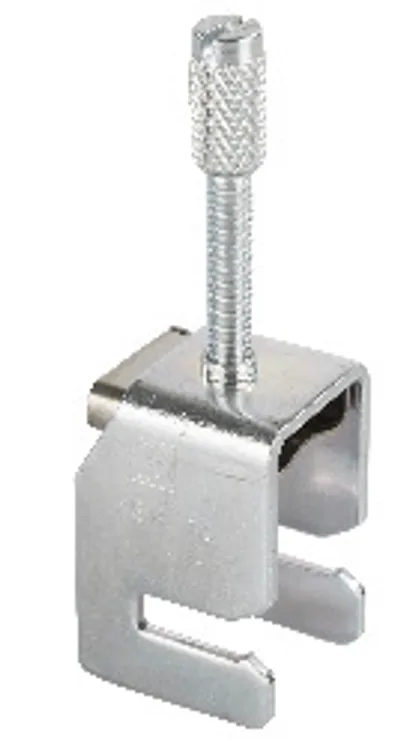

Available on requestB&R X20AC0SA14.0010 – Accessories, shield connection clamp for X20MPN: X20AC0SA14.0010 · B&R
Price on request
Request a quote

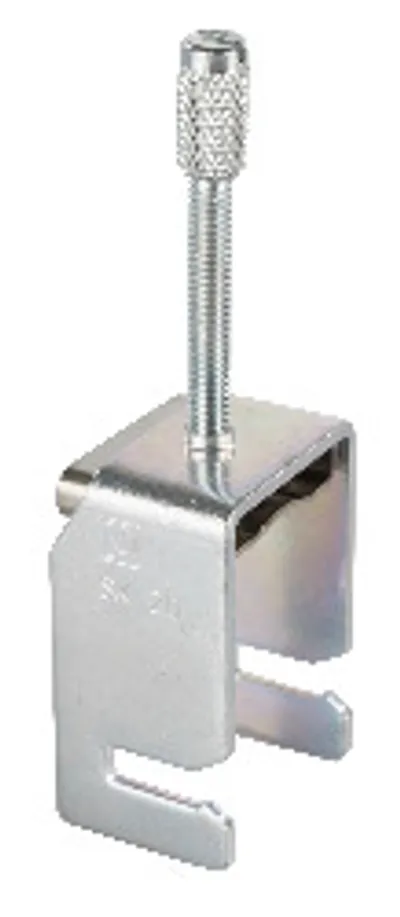

Available on requestB&R X20AC0SA20.0010 – Accessories, shield connection clamp for X20MPN: X20AC0SA20.0010 · B&R
Price on request
Request a quote
Available on requestB&R X20AC0SA35.0010 – Accessories, shield connection clamp for X20MPN: X20AC0SA35.0010 · B&R
Price on request
Request a quoteCompare Shield connection clamp
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Terminal cable cross section dimension of shield connection | Dimensions – Width | Dimensions – Length | Dimensions – Height | Torque for connections – M4 |
|---|---|---|---|---|---|
| X20AC0SA08.0010 | 3 to 8 mm | 12 mm | 19.5 mm | 48.7 mm | 0.6 Nm |
| X20AC0SA14.0010 | 3 to 14 mm | 17 mm | 19.5 mm | 59.3 mm | 0.8 Nm |
| X20AC0SA20.0010 | 5 to 20 mm | 24 mm | 19.5 mm | 75 mm | 0.8 Nm |
| X20AC0SA35.0010 | 20 to 35 mm | 40 mm | 20 mm | 160.5 mm | — |
Common to all listed parts
| Accessories | Shield connection clamp for X20 |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Connection type | Screw terminal |
