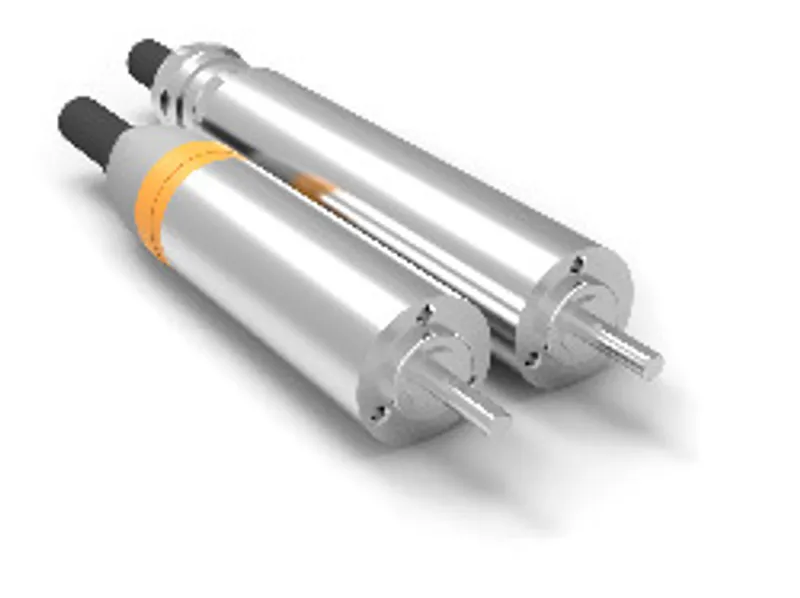

B&R 8WSB11.ee064jjQop0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 8WSB1 (size 1; IP54 and IP66/67; direct mounted gearbox) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 8WSB11.ee064jjQop0 be shipped?
8WSB11.ee064jjQop0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WSB11.ee064jjQop0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WSB11.ee064jjQop0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WSB11.ee064jjQop0, subject to availability and destination.
Synchronous motor 8WSB11 with direct gearbox mounting, SSI encoder, single-turn, gear ratio = 64, flat-sided shaft end, IP66/67, nominal speed: 5760 rpm, fixed attachment cable 0.5 m with hybrid connector
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Nominal speed nN [rpm] | 5760 |
| Number of pole pairs | 4 |
| Nominal torque Mn [Nm] | 0.004 |
| Nominal current IN [A] | 0.32 |
| Stall torque M0 [Nm] | 0.006 |
| Stall current I0 [A] | 0.37 |
| Maximum torque Mmax [Nm] | 0.02 |
| Maximum current Imax [A] | 1 |
| Maximum speed nmax [rpm] | 8960 |
| Torque constant KT [Nm/A] | 0.023 |
| Voltage constant KE [V/1000 rpm] | 1.48 |
| Stator resistance R2ph [Ω] | 13.3 |
| Stator inductance L2ph [mH] | 2.47 |
| Electrical time constant tel [ms] | 0.18 |
| Thermal time constant ttherm [min] | 1.6 |
| Moment of inertia J [kgcm2] | 0.0017 |
| Weight without brake m [kg] | 0.13 |
| Number of gear stages | 3 |
| Gear ratio i | 64 |
| Max. drive speed n1max [rpm] | 10000 |
| Max. backlash Jt [arcmin] | 50 |
| Torsional rigidity Ct21 [Nm/arcmin] | 0.1 |
| Efficiency at full load ŋ [%] | 85 |
| Weight m [kg] | 0.03 |
| ACOPOSmicro 80VD100Px.xxxx-01 | C03X, C033 |
