B&R 8TB4104.202N-00

Name: B&R 8TB4104.202N-00
Brand: B&R
SKU: 8TB4104.202N-00

MPN: 8TB4104.202N-00 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Terminal blocks
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	33.2 kg

Shipping & availability

When can 8TB4104.202N-00 be shipped?

8TB4104.202N-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8TB4104.202N-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8TB4104.202N-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB4104.202N-00, subject to availability and destination.

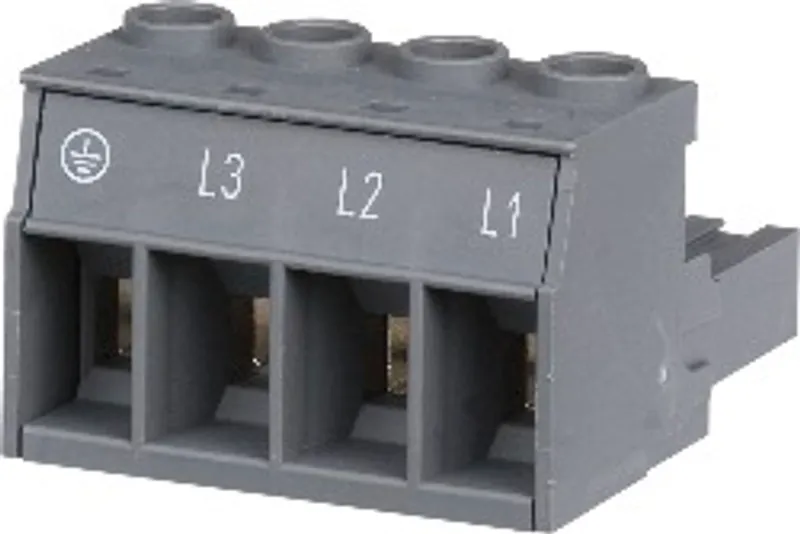

4-pin screw clamp terminal block, 1-row, pitch: 10.16 mm, label 2: L1 L2 L3 PE, coding N: 1100

Specifications

UKCA	Yes
Note	Label 2: L1 L2 L3 P3 Coding N: 1100 1-row
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	N
Pitch	10.16 mm
Wire stripping length	12 mm
AWG wire	20 to 8 AWG
Wire end sleeves with plastic covering	0.5 to 6 mm²
Single-wire	0.75 to 6 mm²
Fine-stranded wires	0.75 to 6 mm²
With wire end sleeve	0.5 to 6 mm²
Tightening torque	1.2 to 1.5 Nm
Tension	>30 N (0.75 mm²) >80 N (6 mm²) >90 N (10 mm²)
Nominal voltage	1000 V (IEC) / 600 V (UL)
Nominal current	41 A (IEC) / 50 A (UL)
Width	39.7 mm
Height	27.6 mm
Depth	39 mm
Weight	33.2 g
