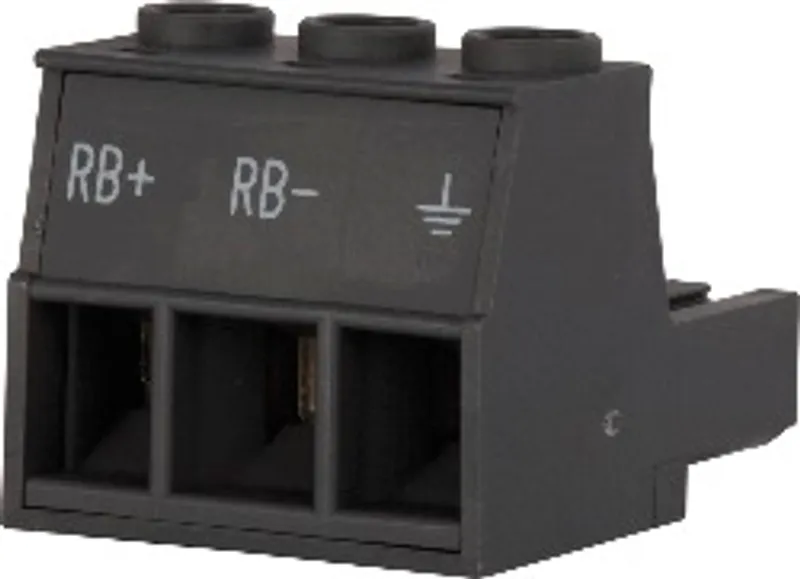

B&R 8TB4103.202A-00 – 3-pin screw clamp terminal block, one-row, pitch: 10.16 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 25.2 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8TB4103.202A-00 be shipped?
8TB4103.202A-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB4103.202A-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB4103.202A-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB4103.202A-00, subject to availability and destination.
3-pin screw clamp terminal block, one-row, pitch: 10.16 mm, label 2: PE RB- RB+, coding A: 000
Specifications
General information
| Certifications – UKCA | Yes |
Terminal block
| Connection cross section – AWG wire | 20 to 8 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.5 to 6 mm² |
| Connection cross section – Single-wire | 0.75 to 6 mm² |
| Connection cross section – Fine-stranded wires | 0.75 to 6 mm² |
| Connection cross section – With wire end sleeve | 0.5 to 6 mm² |
| Note | Label 2: PE RB- RB+, coding A: 000; 1-row |
| Number of pins | 3 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | A |
| Pitch | 10.16 mm |
| Wire stripping length | 12 mm |
| Tightening torque | 1.2 to 1.5 Nm |
Electrical properties
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 41 A (IEC) / 50 A (UL) |
Mechanical properties
| Dimensions – Width | 29.5 mm |
| Dimensions – Height | 27.6 mm |
| Dimensions – Depth | 39 mm |
| Weight | 25.2 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8TB4103.202A-00 | PDF · 170 KB · 1.3 (11/09/2018) - EN |
| 3D file STEP 8TB4103.202A-00 | ZIP · 201 KB · 1.0 (02/17/2014) |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D files STEP ACOPOSmulti terminals | ZIP · 8 MB · 1.1 (02/18/2014) |
