B&R 8TB3104.204K-10

Name: B&R 8TB3104.204K-10
Brand: B&R
SKU: 8TB3104.204K-10

MPN: 8TB3104.204K-10 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8TB3104.204K-10 be shipped?

8TB3104.204K-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8TB3104.204K-10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8TB3104.204K-10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3104.204K-10, subject to availability and destination.

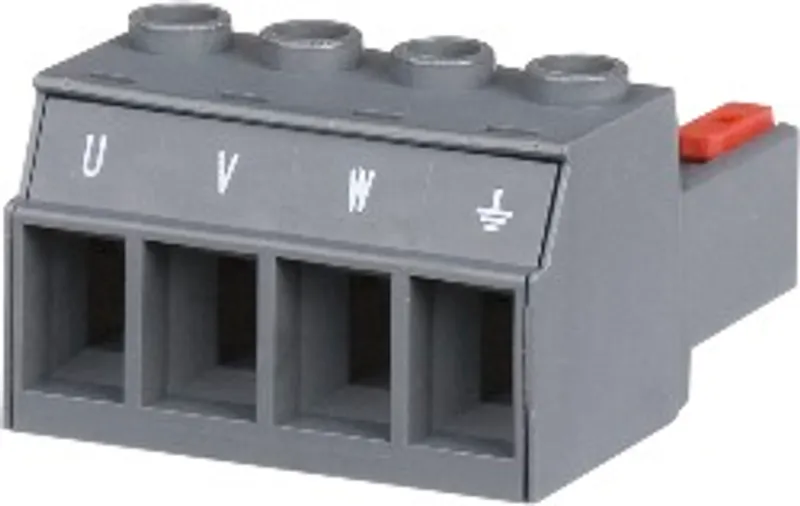

4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding K: 1001

Specifications

Note	Label 4: PE W V U Coding K: 1001 1-row
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	K
Pitch	7.62 mm
AWG wire	24 to 10 AWG
Wire end sleeves with plastic covering	0.25 to 4 mm²
Single-wire	0.2 to 10 mm²
Fine-stranded wires	0.2 to 6 mm²
With wire end sleeve	0.25 to 6 mm²
Tightening torque	0.7 to 0.8 Nm
Nominal voltage	600 V (UL)
Nominal current	41 A (UL)
