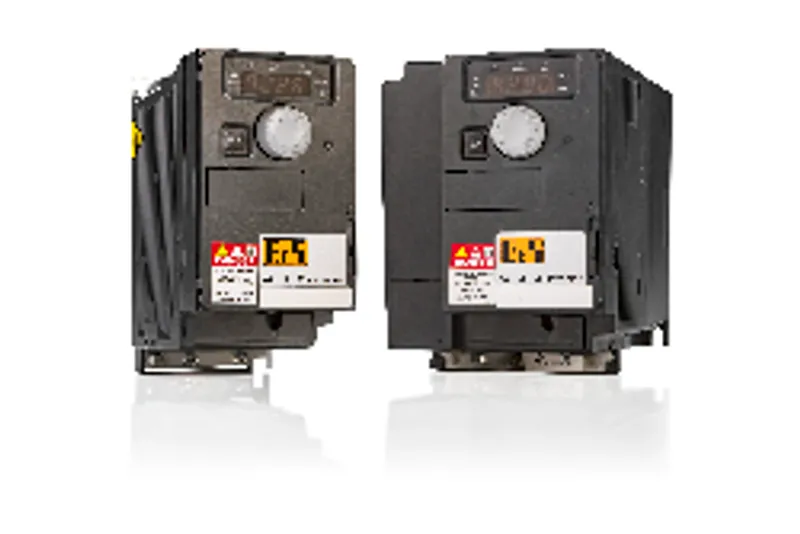

B&R 8I66S200055.00-000

Name: B&R 8I66S200055.00-000
Brand: B&R
SKU: 8I66S200055.00-000

MPN: 8I66S200055.00-000 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ACOPOSinverter P66 - 1-phase 200 to 240 V
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.1 kg

Shipping & availability

When can 8I66S200055.00-000 be shipped?

8I66S200055.00-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8I66S200055.00-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8I66S200055.00-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I66S200055.00-000, subject to availability and destination.

Base device for ACOPOSinverter P66 and P64new, 1 x 200 to 240 V, 0.55 kW, integrated EMC filter and brake chopper, shield plate included in deliveryOrder number - ACOPOSinverter P66: 8I66S200055.0P-000: Inverter with POWERLINK communication card8I66S200055.0X-000: Inverter with X2X Link communication card8I66S200055.0C-000: Inverter with integrated CANopen interface Order number - ACOPOSinverter P64new: 8I64S200055.0X-000: Inverter with X2X Link communication card

Specifications

CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E225616Power conversion equipment
Specified on nameplate	0.55 kW (0.75 HP)
Mains input voltage	1x 200 VAC -15% to 240 VAC +10%
Frequency	50 to 60 Hz ±5%
Apparent power (at 240 VAC)	1.4 kVA
Max. assumed short-circuit current (Isc)(short-circuit current at connection point)	1 kA
Inrush current	Max. 9.6 A
At 200 VAC	6.8 A
At 240 VAC	5.7 A
Power dissipation at nominal load and nominal clock frequency	42 W
Integrated EMC filter	Yes
Motor cable length per IEC/EN 61800-3 Cat. C2 environment 1 (public power network)	50 m
Motor cable length per IEC/EN 61800-3 Cat. C3 environment 2 (industrial power system)	100 m
With add-on filter	8I0FS009.200-2
Motor cable length per IEC/EN 61800-3 Cat. C1 environment 1 (public power network)	20 m
Nominal output current	3.7 A
At nominal clock frequency (4 kHz)	No derating (up to 50°C)
Other clock frequencies	The derating curves are included in the installation instructions, which can be downloaded from the website (www.br-automation.com).
Starting at 1000 m above sea level	1%, per 100 m
Max. transient current for 60 s	5.6 A
Output frequency range	0.1 to 599 Hz
Nominal clock frequency	4 kHz
Min.	2 kHz
Max.	16 kHz
With braking resistor	Up to 170% of the rated motor torque
Shielded cable	50 m
Non-shielded cable	100 m
Induction motor	Sensorless vector control:1. Voltage controlled with constant torque → standard mode2. Voltage controlled with variable torque → energy saving mode e.g. for fans and pumpsSensorless slip control:1. With V/f characteristic curve for constant torque → standard mode2. With V/f characteristic curve for constant torque (up to 6 f-ranges) → Custom mode for special applications3. With V/f characteristic curve for quadratically increasing torque → Energy-saving mode, e.g. for fans and pumps
Synchronous motor	Sensorless vector control:1. Voltage controlled with constant torque → standard mode
Main protective functions of inverter	Thermal protection against power stage overheating Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply
Integrated dynamic brake transistors	Yes
Min. resistance value (external)	40 Ω
Input voltage	24 VDC (-15%/+20%)
Current	800 Ω
Output voltage 24 VDC	24 VDC (-15%/+20%)
Max. output current at 24 VDC	100 mA
Output voltage 10 VDC	10 VDC (-0%/+10%)
Max. output current at 10 VDC	10 mA
Type	Type 3
Quantity	1
Nominal voltage	30 VDC / 250 VAC
Input circuit	Source or sink
Switching threshold	Sink: >19 V (position 0), <13 V (position 1)Source: <5 V (position 0), >11 V (position 1)
Input - ACOPOSinverter	Yes
Input - Input	No
Sampling time	2 ms
Max. input frequency	20 kHz
Input impedance	1.5 kΩ
Current consumption	16 mA
Nonlinearity	±0.3%
Basic accuracy	At 25°C: ±1%At -10 to 60°C: ±2%
Voltage	470 Ω
Resolution	10-bit
Max. voltage	30 VDC
Output circuit	Source or sink
Max. current	100 mA
Switching current range	Min. switching current: 5 mA at 24 VDCMax. switching current:R1 at cos φ = 1: 3 A at 250 VAC / 4 A at 30 VDCR2 at cos φ = 1: 5 AR1 and R2 at cos φ = 0.4: 2 A
Relay 1	1 changeover contact
Relay 2	1 normally open contact
Output - ACOPOSinverter	Yes
Output - Output	No
Response time (max.)	2 ms
Output	0 to 10 V or 0 to 20 mA
Update time	2 ms
Power dissipation relative to continuous apparent power	IE2 (10; 25): 1.6% (1x 200 VAC); 1.1% (1x 240 VAC)IE2 (50; 25): 1.5% (1x 200 VAC); 1% (1x 240 VAC)IE2 (10; 50): 1.7% (1x 200 VAC); 1.4% (1x 240 VAC)IE2 (50; 50): 1.6% (1x 200 VAC); 1.2% (1x 240 VAC)IE2 (90; 50): 1.8% (1x 200 VAC); 1.3% (1x 240 VAC)IE2 (10; 100): 2.3% (1x 200 VAC); 2% (1x 240 VAC)IE2 (50; 100): 2.2% (1x 200 VAC); 1.8% (1x 240 VAC)IE2 (90; 100): 2.5% (1x 200 VAC); 2% (1x 240 VAC)
Nominal losses in standby mode	6 W
Degree of protection per EN 61800-5-1	IP20
Relative humidity per IEC 60068-2-3	5 to 95%, non-condensingNo dripping water
Maximum installation elevation	≤1000 m without derating1000 to 3000 m with Derating
Max. pollution degree per IEC/EN 61800-5-1	2 (non-conductive pollution)
Ambient conditions per IEC 60721-3-3	Class 3C3 and 3S2
Operating position	Vertical mounting orientation ±10°
Operation	-10 to 50°C without derating50 to 60°C with derating
Storage	-25 to 70°C
Max. vibration resistance	1 gn 13 to 200 Hz EN/IEC 60068-2-61.5 mm peak to peak 2 to 13 Hz EN/IEC 60068-2-6
Width	72 mm
Height	188 mm
Height without shield plate	143 mm
Depth	143 mm
Weight	1.1 kg
