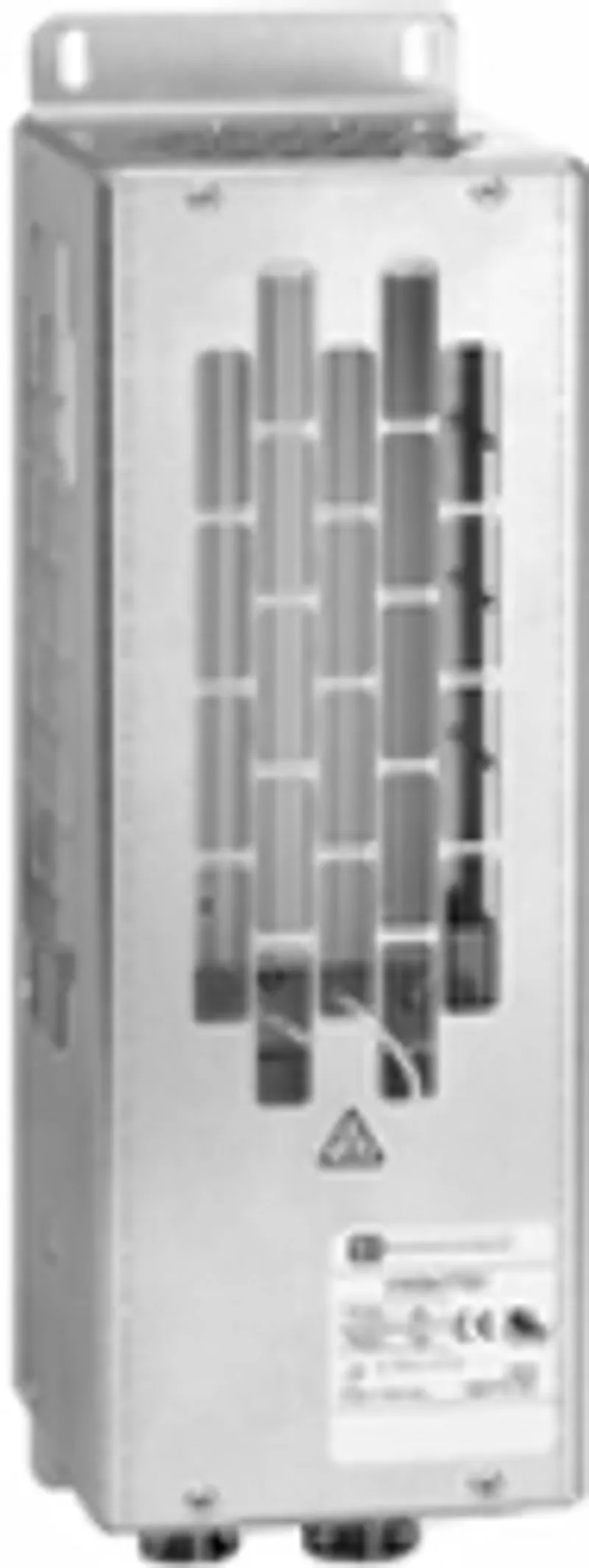

B&R 8I0BR100.000-1

Name: B&R 8I0BR100.000-1
Brand: B&R
SKU: 8I0BR100.000-1

MPN: 8I0BR100.000-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Optional braking resistors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2 kg

Shipping & availability

When can 8I0BR100.000-1 be shipped?

8I0BR100.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8I0BR100.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8I0BR100.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I0BR100.000-1, subject to availability and destination.

Braking resistor ohmic value: 100 Ω continuous braking power: 0.05 kW degree of protection (IP): IP20

Specifications

CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Not applicable
KC	Yes
Rated protection of housing	IP20
Ambient temperature	0 to 50°C
Storage	-25 to 70°C
Weight	2 kg
Resistance value at 20°C	100 Ω
Average available power at 50°C	0.05 kW
Thermal protection	Using temperature-controlled switch or the inverter
Activation temperature	120°C
Max. voltage / Max. current	250 VAC / 1 A
Min. voltage / Min. current	24 VDC / 0.1 A
Max. contact resistance	60 mΩ
Connection recommendation	The switch should be connected within the sequence (for use in signaling or line contactor control).
