B&R 8EI8X8MWT10.0100-1

Name: B&R 8EI8X8MWT10.0100-1
Brand: B&R
SKU: 8EI8X8MWT10.0100-1

MPN: 8EI8X8MWT10.0100-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Wall mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	4 kg

Shipping & availability

When can 8EI8X8MWT10.0100-1 be shipped?

8EI8X8MWT10.0100-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8EI8X8MWT10.0100-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8EI8X8MWT10.0100-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EI8X8MWT10.0100-1, subject to availability and destination.

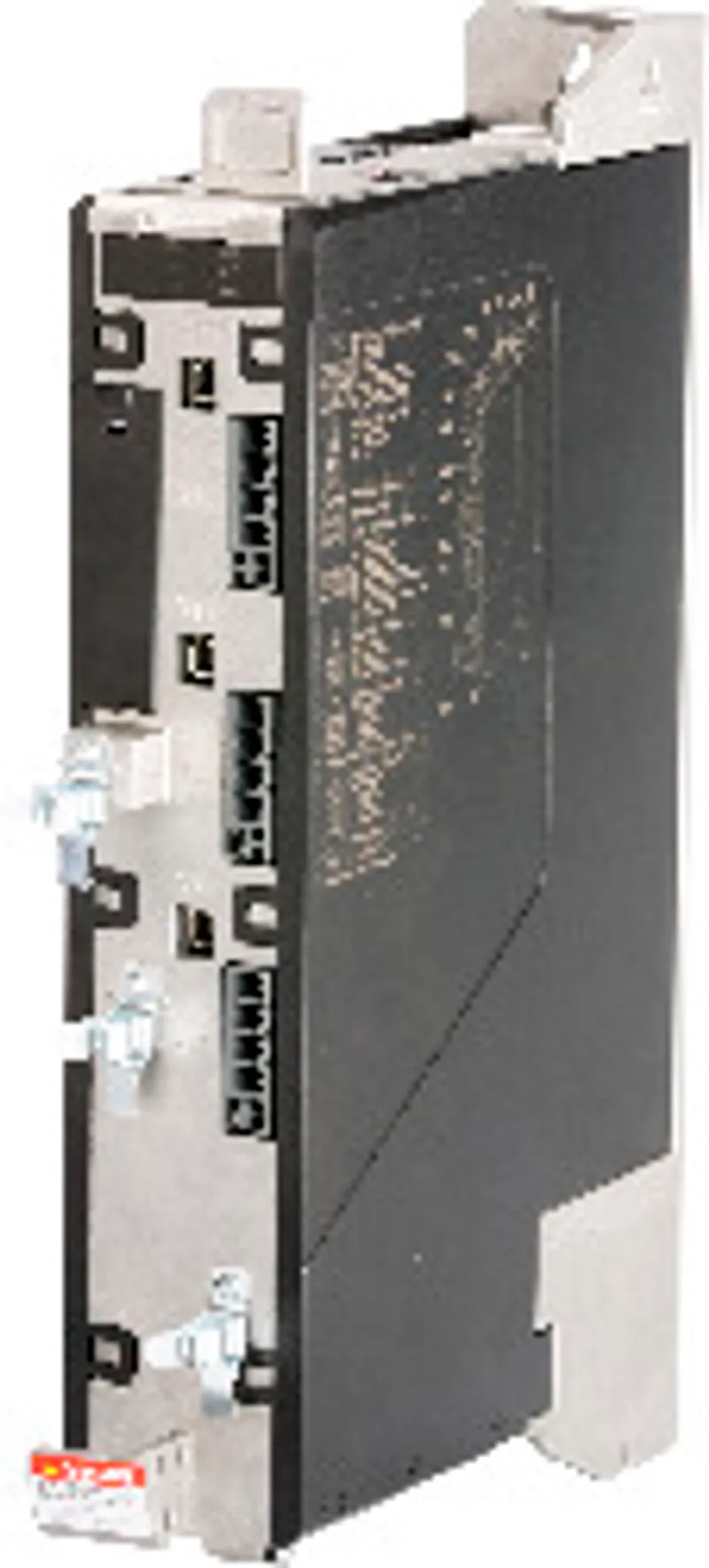

ACOPOS P3 servo drive, 1 digital multi-standard encoder interface per axis, 3x 200-230 VAC, 1x 110-230 VAC, 8.8 A, 3 axes, wall mounting, 2-row connector set

Specifications

Dynamic node allocation (DNA)	Yes
Slots for plug-in modules	1
Network configurations	TN-S, TN-C-S with grounded neutral
Mains input voltage	1x 110 VAC to 230 VAC ±10% 3x 200 VAC to 230 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 5 kVA
Inrush current	Max. 22 A
Switch-on interval	Typ. 60 s
Integrated line filter per EN 61800-3, category C3	No
With wire end sleeve	0.25 to 2.5 mm²
UL/C-UL-US	26 to 12 AWG
CSA	26 to 12 AWG
Power dissipation at device nominal power without braking resistor	[(40 + 10 * PAVG [kW] + 5.8 * (IAX1 [A] + IAX2 [A] + IAX3 [A]) + 0.25 * (IBR12 [A] + IBR22 [A] + IBR32 [A]) + PVSLOT) * 1.1] [W]
Max. line length	100 m
Continuous power	2 kW
Mains input voltage <230 VAC	2 kW * (Mains input voltage [V] / 230 V)
DC bus capacitance	1880 µF
With wire end sleeves	0.25 to 4 mm²
Input voltage	24 VDC ±25%
Input capacitance	5507 µF
Current consumption	1.2 A + Current for motor holding brake
Quantity	3
Continuous power per motor connection	2 / 2 / 2 kW
Continuous current per motor connection	8.8 / 8.8 / 8.8 Aeff
Switching frequency 5 kHz	75 m
Switching frequency 10 kHz	38 m
Switching frequency 20 kHz	19 m
Starting at 500 m above sea level	0.88 Aeff per 1000 m
Peak current per motor connection	24 / 24 / 24 Aeff
Peak power output	5 kW
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	No
Short-circuit and ground fault protection	Short-circuit protection: Yes Ground fault protection: No
Max. output frequency	598 Hz
U, V, W, PE	Connector
Shield connection	Yes
Output voltage	Configurable Typ. 11.45 V ±0.1 V / 5.2 V ±0.1 V
Continuous current per connection	1.3 A
Max. internal resistance	0.25 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	1.5 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 30 mA
Response threshold for undervoltage monitoring	Approx. 23 V
Peak power int./ext.	1.5 kW / 11 kW
Continuous power int./ext.	150 W / 970 W
Minimum braking resistance (ext.)	12 Ω
Type	Digital multi-encoder interface, configurable
Variant	2x RJ45, shielded, 2-port hub
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Circuit	Sink
Input - ACOPOS P3	Yes
Input - Input	Yes
Nominal	5 to 40°C
Maximum	55°C
Input current at nominal voltage	7 mA
Low	<5 V
High	>15 V
Enable 1 → 0, PWM off	2 ms
Enable 0 → 1, ready for PWM	0.3 ms
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	0.5 ms
With plastic wire end sleeves	0.25 to 2.5 mm²
Connections	8-pin female Mini I/O connector
Status indicators	None
Encoder - ACOPOS P3	No
Max. encoder cable length	75 m Depends on the cross section of the power supply wires in the encoder cable
Load capacity	300 mA
Short-circuit proof	Yes
Overload-proof	Yes
Signal transmission	RS485
Data transfer rate	Depends on the configured encoder type
Minimum	-25°C
Max. power consumption per encoder interface	PENCODER [W] = U24V [V] * (IENCODER [A] * 0.7) + 0.5 W
Rising edge	<51 µs
Falling edge	<52 µs
Resistance range	500 Ω to 5 kΩ
mapp Motion	5.00.0 and higher
ACP10/ARNC0	3.10.0 and higher
Hanging vertically	Yes
Standing horizontally	Yes
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	95% at 40°C
Operation	5 to 85%, non-condensing
Width	66 mm
Height	374 mm
Wall mounting	258.5 mm (with 8EXA front cover: 261 mm)
Weight	4 kg
