B&R 8CCH01X4.11110-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.96 kg |
Shipping & availability
When can 8CCH01X4.11110-0 be shipped?
8CCH01X4.11110-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8CCH01X4.11110-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8CCH01X4.11110-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCH01X4.11110-0, subject to availability and destination.

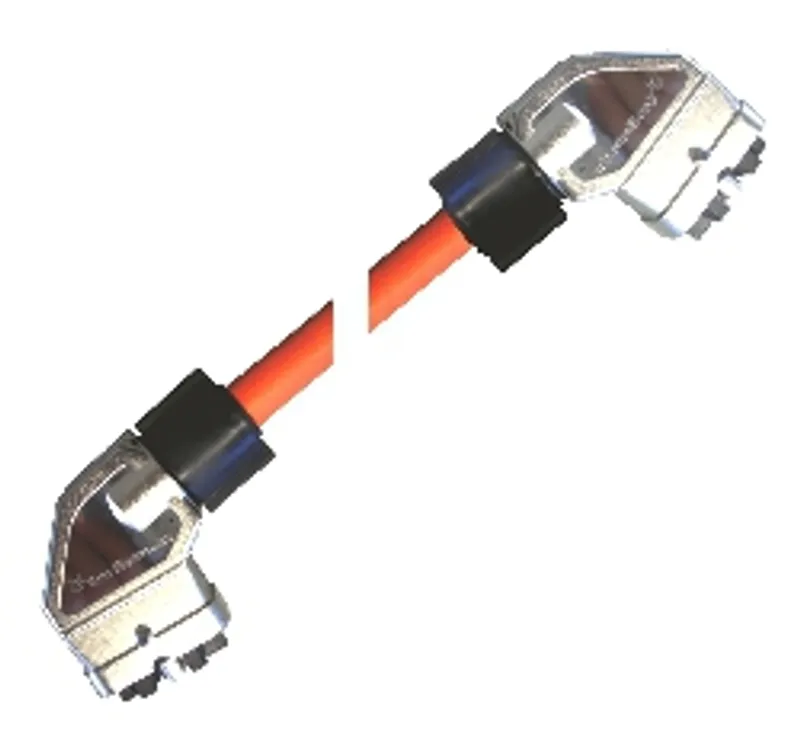

Optimally suited for use with ACOPOSremote/ACOPOSmotor drive systemsHybrid connector system for secure connectionsOther cable lengths are available after arrangements have been made with B&R. Hybrid cable, length 1.40 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 2x 15-pin female TYCO connector
Specifications
Specifications
| Cable cross section | 5x 2.5 mm² + 4x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 LI |
| Durability | In preparation |
| Certification | UL AWM style 20234, 80°C, 1000 V and CSA C22.2 no. 210.2 I/II A/B, FT1 |
| UKCA | Yes |
| Quantity | 4 |
| Wire insulation | Special thermoplastic material |
| Wire colors | Orange, white, yellow, blue |
| Variant | Tinned copper stranded wire |
| Cross section | 0.34 mm² |
| Shield | Yes |
| Stranding | Yes |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
| Material | PUR |
| Color | Orange, similar to RAL 2003 flat |
| Labeling | In preparation |
| Type | 15-pin female TYCO connector |
| Mating cycles | Max. 20 |
| Contacts | 15 |
| Degree of protection per EN 60529 | IP65 |
| Operating voltage | Power lines: ≤1000 V Signal lines: ≤1000 V Data lines: ≤100 V |
| Wire - Wire | 3 kV AC |
| Wire - Shield | 3 kV AC |
| Current-carrying capacity | 20 A |
| Power lines | ≤0.01 Ω |
| Signal line | ≤0.04 Ω |
| Data lines | ≤0.08 Ω |
| Insulation resistance | >357.14 GΩ |
| Moving | ≥140 mm |
| Static | -40 to 80°C |
| Length | 1.4 m |
| Diameter | 14.6 mm ±0.4 mm |
| Single bend | >40 mm |
| Acceleration | <4 m/s² |
| Flex cycles | ≥5,000,000 |
| Velocity | ≤4 m/s |
| Weight | 0.96 kg |
