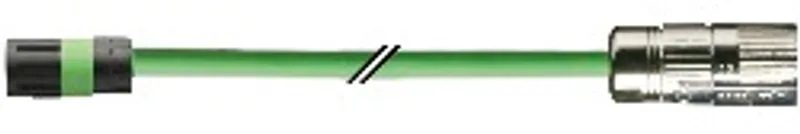

B&R 8CCE0003.11210-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.1 cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.24 kg |
Shipping & availability
When can 8CCE0003.11210-0 be shipped?
8CCE0003.11210-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8CCE0003.11210-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8CCE0003.11210-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCE0003.11210-0, subject to availability and destination.
UL/CSA listedCan be used in cable drag chainsAssembled specifically for use with ACOPOSremote drive systems and B&R servo motorsspeedtec - Innovative connector system for secure connections ACOPOSremote EnDat 2.1 cable, length 3 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female speedtec motor connector, 15-pin male series 615 signal connector, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 5x 2x 0.14 mm² + 1x 2x 0.50 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 and CSA AWM I/II A/B, 90°C, 30 V, FT1 LL46064 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 10 |
| Wire insulation | Special thermoplastic material |
| Wire colors | Blue, brown, yellow, gray, green, pink, red, black, violet, white |
| Variant | Tinned copper stranded wire |
| Cross section | 0.14 mm² |
| Shield | No |
| Stranding | Green with brown, gray with yellow, white with violet, black with red, pink with blue |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage >85% and foil shield |
| Material | PUR |
| Color | Green, similar to RAL 6018 flat |
| Labeling | BERNECKER + RAINER 5x2x0,14+2x0,50 FLEX UL AWM STYLE 20963 80°C 30 V E63216 CSA AWM I/II A/B 90°C 30 V FT1 LL46064 |
| Type | 17-pin female speedtec motor connector |
| Mating cycles | <500 |
| Contacts | 17 |
| Additional connectors | 15-pin male series 615 signal connector Mating cycles: <500 Contacts: 15 Degree of protection per EN 60529: IP66/67 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | ≤30 Veff |
| Wire - Wire | 1 kV |
| Wire - Shield | 0.8 kV |
| Supply lines | ≤40 Ω/km |
| Signal line | ≤140 Ω/km |
| Insulation resistance | >200 MΩ*km |
| Moving | ≥60 mm |
| Static | -20°C to +90°C |
| Length | 3 m |
| Diameter | 7.85 mm ±0.2 mm |
| Single bend | ≥24 mm |
| Acceleration | ≤6 g |
| Flex cycles | >3,000,000 |
| Velocity | ≤4 m/s |
| Weight | 0.24 kg |
