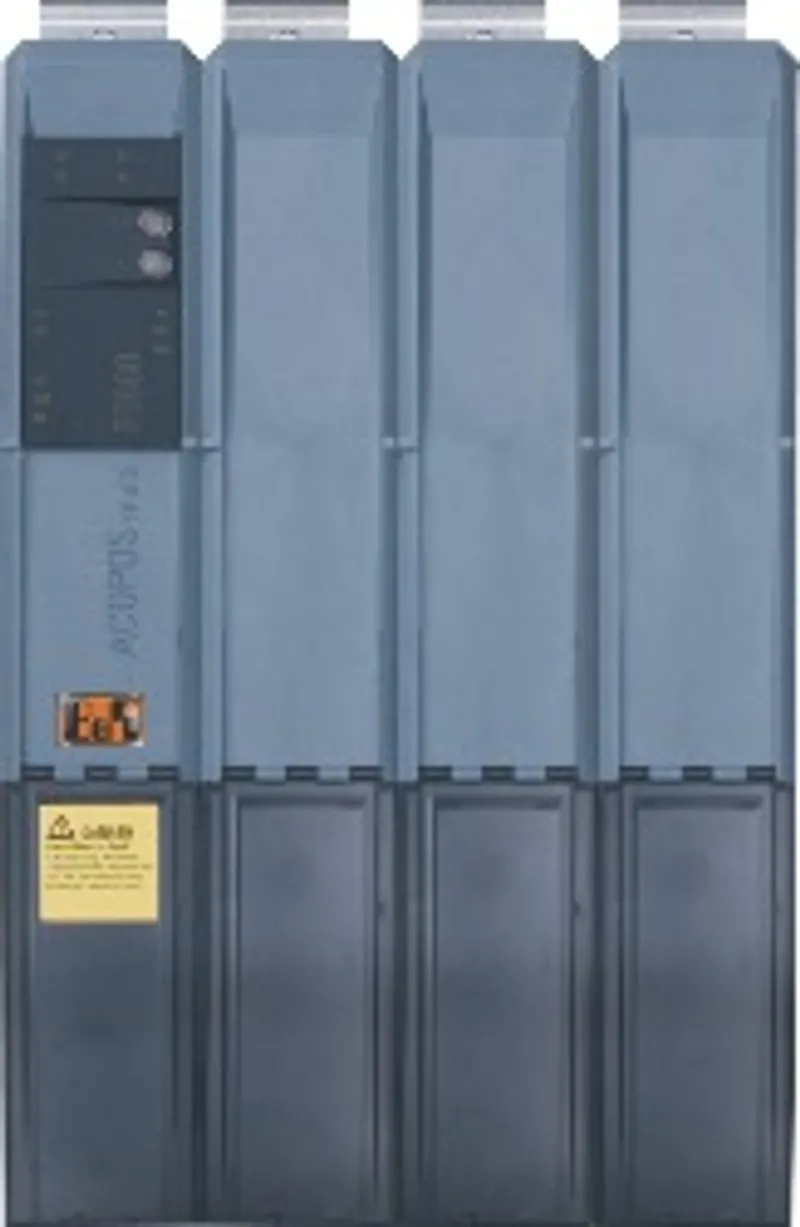

B&R 8BVP0880HW00.008-1

Name: B&R 8BVP0880HW00.008-1
Brand: B&R
SKU: 8BVP0880HW00.008-1

MPN: 8BVP0880HW00.008-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Wall mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8BVP0880HW00.008-1 be shipped?

8BVP0880HW00.008-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVP0880HW00.008-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVP0880HW00.008-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVP0880HW00.008-1, subject to availability and destination.

ACOPOSmulti power supply module, 88 A, AS, wall mounting

Specifications

B&R ID code	0x2C1C
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E225616 Power conversion equipment
Network configurations	TT, TN-S, TN-C-S
Mains input voltage	3x 220 to 3x 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Total harmonic distortion current (THDi)	<0.2%
Total harmonic distortion voltage (THDu)	<1%
Installed load	Max. 62 kW
Inrush current at 400 VAC	Max. 133 A
Switch-on interval	>300 s
230 VAC	34.8 mF
400 VAC	11.5 mF
480 VAC	8 mF
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 kHz
Integrated line filter per EN 61800-3, category C3	No
Integrated regeneration choke	No
Regenerative	Yes
Power factor correction (PFC)	Yes
Line fuse	Max. 264 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 220 A (circuit breaker per EN 60947-2 or UL 489)
L1, L2, L3, PE	M8 threaded bolts
Shield connection	Yes
Flexible and fine-stranded wires	---
Terminal cable cross section dimension of shield connection	32 to 50 mm
Nominal	5 to 40°C
Continuous power (supply and regeneration)	60 kW
Mains input voltage <3x 400 VAC	300 W/V * (400 V - Mains input voltage)
UDC <750 VDC	0.08 kW/V
Switching frequency 5 kHz	956 W
Switching frequency 10 kHz	1605 W
Starting at 500 m above sea level	6 kW per 1000 m
Peak power (supply and regeneration)	120 kW
DC bus capacitance	1650 µF
Overload protection	No
Short-circuit and ground fault protection	No
Variant	ACOPOSmulti backplane
Input voltage	25 VDC ±1.6%
Input capacitance	4.7 µF
Max. power consumption	27 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF...
Quantity	2
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC / 315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset
Output voltage	24 V +5.8% / -0.1%
Continuous current	4.2 A
Max. overcurrent limiting	10 A
Short-circuit proof	Yes
Open-circuit monitoring	No
Undervoltage monitoring	No
Circuit	Sink
Input - Power supply module	Yes
Input - Input	Yes
Maximum	55°C
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Rising edge	52 μs ±0.5 μs (digitally filtered)
Falling edge	53 μs ±0.5 μs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V
Discharge capacitance	0.9 µF
Power dissipation relative to continuous apparent power	IE2 (10,25) 0.3% IE2 (50,25) 0.4% IE2 (10,50) 0.3% IE2 (50,50) 0.6% IE2 (90,50) 1.2% IE2 (10,100) 0.4% IE2 (50,100) 1.2% IE2 (90,100) 2.4%
Nominal losses in standby mode	10.8 W
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	Max. 95% at 40°C
Operation	5 to 85%
Width	213.5 mm
Height	317 mm
Wall mounting	263 mm
Weight	Approx. 11.10 kg
Module width	4
