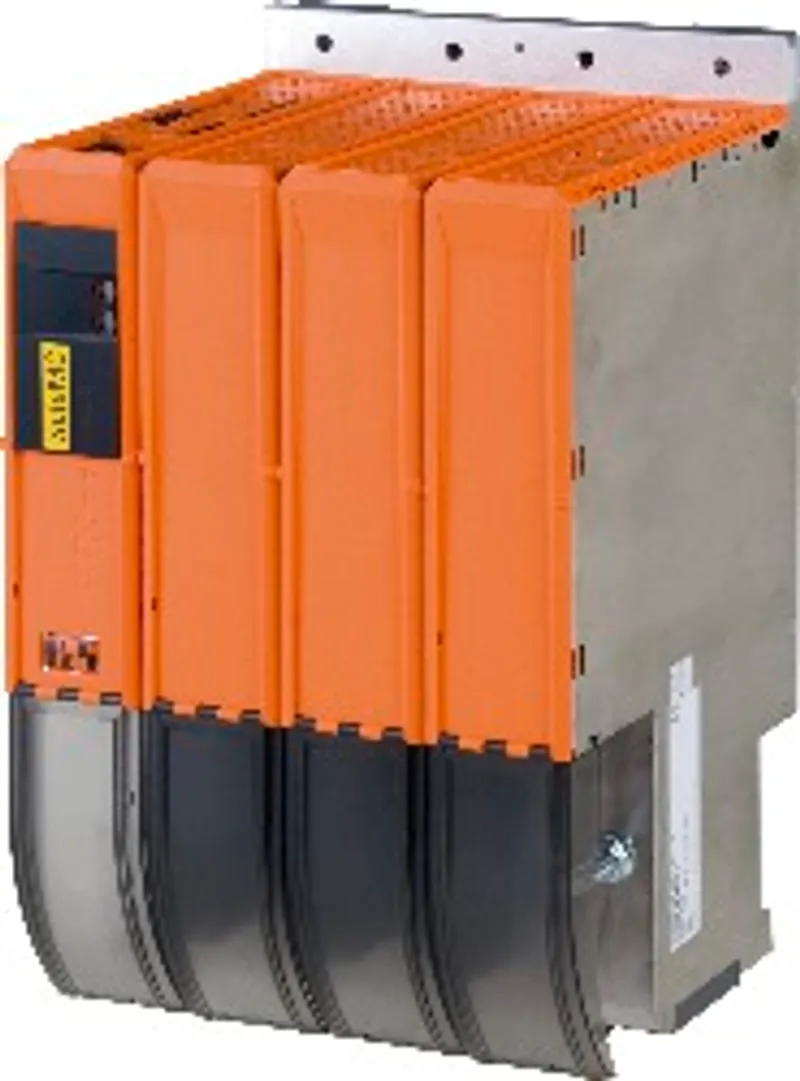

B&R 8BVI0880HCSS.008-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

Name: B&R 8BVI0880HCSS.008-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module
Brand: B&R
SKU: 8BVI0880HCSS.008-4

MPN: 8BVI0880HCSS.008-4 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold plate or feed-through mounting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8BVI0880HCSS.008-4 be shipped?

8BVI0880HCSS.008-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0880HCSS.008-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0880HCSS.008-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0880HCSS.008-4, subject to availability and destination.

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module, 88 A, AS, cold plate or pass-through mounting, optimized for applications with decentralized, computationally intensive open-loop and closed-loop control requirements

Accessories

Required accessories (order separately)

8BZVI1650SS.000-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI0660HxSS, 8BVI0880HxSS, 8BVI1650HxSS, 8BVI0660HxSA, 8BVI0880HxSA and 8BVI1650HxSA module…

Optional accessories (29)

8BXB000.0000-00	Accessory sets — ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder
8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8BAC0133.000-1	Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42…
8BAC0132.000-1	Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±…
8BAC0130.001-1	Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu…
8BAC0130.000-1	Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs…
8BAC0125.000-1	Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller…
8BAC0124.000-1	Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply…
8BAC0123.002-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.001-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.000-1	Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with…
8BAC0122.000-1	Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf…
8BAC0121.000-1	Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte…
8BAC0120.001-2	Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors…
8BAC0120.000-1	Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded…
8SCS010.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20
8SCS004.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 4x type 0, 2x hose clamps, B 9 mm, D 32-50 mm
8SCS003.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield mounting plate 4x 45°, 8x screws
8SCS002.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS001.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 4x type 1, 1x hose clamp, B 9 mm, D 12-22 mm
8TB2108.2010-00	Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2106.2010-00	Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.203L-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010

Specifications

General information

System requirements – Automation Studio	4.6.1.x or later
System requirements – mapp Technology Package	mapp Safety 5.24.0 or later
Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	Yes (openSAFETY)
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
B&R ID code	0x2EEA
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2 (note: SLOT 2 is available. SLOT 1 of the ACOPOSmulti module is occupied by the SafeMOTION module.)

DC bus connection

Voltage – Nominal	750 VDC
Power dissipation depending on switching frequency – Switching frequency 5 kHz	In preparation (note: I M ... Current on motor connection X5A [A eff ])
Power dissipation depending on switching frequency – Switching frequency 10 kHz	In preparation (note: I M ... Current on motor connection X5A [A eff ])
Power dissipation depending on switching frequency – Switching frequency 20 kHz	In preparation (note: I M ... Current on motor connection X5A [A eff ])
Continuous power consumption	65 kW (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.)
DC bus capacitance	1980 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	32.9 µF
Max. power consumption	33 W + P SMC1 + P SLOT2 + P 24 V Out + P HoldingBrakeEncoder interfaces"). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W)."> (note: P SMC1 ... Max. power consumption P SMC [W] of the SafeMOTION module in SLOT1 (see section)
Variant	ACOPOSmulti backplane

24 VDC output

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	24 VDC ±6%
Quantity	2
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Motor connection

Reduction of continuous current depending on switching frequency and mounting type – Cold plate mounting	1.9 A/K (starting at 58°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on switching frequency and mounting type – Pass-through mounting	1.82 A/K (starting at 40°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on switching frequency and mounting type – Cold plate mounting	1.36 A/K (starting at 27°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on switching frequency and mounting type – Pass-through mounting	0.88 A/K (starting at -12°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on switching frequency and mounting type – Cold plate mounting	0.75 A/K (starting at -37°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on switching frequency and mounting type – Pass-through mounting	0.54 A/K (starting at -106°C) (note: Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min).)
Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	8.8 A eff per 1000 m
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	Yes
Variant – U, V, W, PE	M8 threaded bolts
Variant – Shield connection	Yes
Connection cross section range – Flexible and fine-stranded wires	---) threaded bolts. The nominal cross section of the cable lug must match the cross section of the conductor to be connected in the particular application."> (note: The connection is made with cable lugs for M8 (0.32)
Max. motor line length depending on switching frequency – Switching frequency 5 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 10 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 20 kHz	25 m
Quantity	1
Continuous power per motor connection	64 kW (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.)
Continuous current per motor connection	88 A eff (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.)
Peak current	176 A eff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz (note: B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.)
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Max. output frequency	598 HzPower unit: Limit speed exceeded").">
Terminal cable cross section dimension of shield connection	12 to 50 mm (note: The maximum outer diameter that can be clamped depends on the shield component set used.)

Motor holding brake connection

Protective measures – Overload and short-circuit protection	Yes
Protective measures – Open-circuit monitoring	Yes
Protective measures – Undervoltage monitoring	Yes
Quantity	1
Output voltage	24 VDC +5.8% / -0.5% (note: During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used.)
Continuous current per connection	4.2 A
Max. internal resistance	0.15 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC -2% / -4%

Encoder interfaces

Electrical isolation – Encoder - ACOPOSmulti	No
Encoder power supply – Short-circuit proof	Yes
Encoder power supply – Overload-proof	Yes
Encoder power supply – Output voltage	Typ. 12.5 V
Encoder power supply – Load capacity	350 mA
Synchronous serial interface – Signal transmission	RS485
Synchronous serial interface – Data transfer rate	6.25 Mbit/s
Quantity	1
Type	EnDat 2.2 (note: An EnDat 2.2 functional safety encoder is required when using ACOPOSmulti SafeMOTION inverter modules! With standard EnDat 2.2 encoders, only the STO, SBC and time-monitored SS1 safety functions are available!)
Connections	9-pin female DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	100 m ; Depends on the cross section of the power supply wires in the encoder cable
Max. power consumption per encoder interface	P SMC [W] = 19 V * I Encoder [A] (note: I Encoder ... Max. current consumption of the connected encoder [A].)

Trigger inputs

Electrical isolation – Input - Inverter module	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay – Rising edge	52 µs ±0.5 µs (digitally filtered)
Switching delay – Falling edge	53 µs ±0.5 µs (digitally filtered)
Quantity	2
Circuit	Sink
Input current at nominal voltage	Approx. 10 mA
Modulation compared to ground potential	Max. ±38 V

Temperature sensor connection

Quantity	1
Resistance range	500 Ω to 5 kΩ

Support

Motion system – mapp Motion	5.24.1 and higher
Motion system – ACP10/ARNC0	5.24.1 and higher

Electrical properties

Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power	IE2 (10,25) 0.8%; IE2 (50,25) 0.8%; IE2 (10,50) 1.1%; IE2 (50,50) 1.1%; IE2 (90,50) 1.1%; IE2 (10,100) 1.9%; IE2 (50,100) 1.9%; IE2 (90,100) 1.9%
Energy efficiency (IE classification) – Nominal losses in standby mode	12.3 W
Discharge capacitance	0.44 µF

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account.)
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Cold plate	212 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Pass-through mounting	209 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Width	213.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Weight	Approx. 7.8 kg
Module width	4

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8BVI0880HCSS.008-4	PDF · 4 MB · 1.2 (04/08/2024) - EN
Integrated safety technology user's manual	PDF · 46 MB · 6.8.0 (09/02/2026) - EN

CAD & dimension drawings

3D file STEP 8BVI0xx0HCSx.xxx-x

ZIP · 367 KB · 1.1 (04/23/2024)
