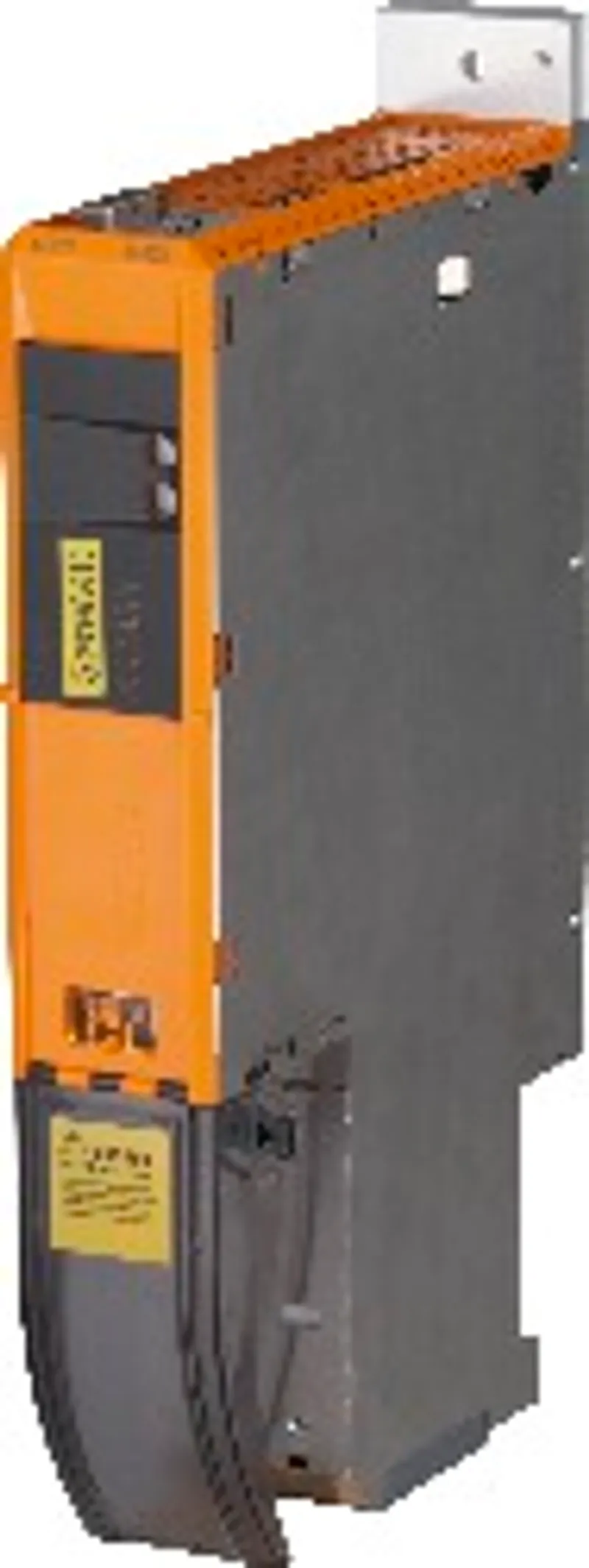

B&R 8BVI0028HCSA.000-1 – Clearly structured, straightforward implementation via…

Name: B&R 8BVI0028HCSA.000-1 – Clearly structured, straightforward implementation via…
Brand: B&R
SKU: 8BVI0028HCSA.000-1

MPN: 8BVI0028HCSA.000-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold plate or feed-through mounting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8BVI0028HCSA.000-1 be shipped?

8BVI0028HCSA.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0028HCSA.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0028HCSA.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0028HCSA.000-1, subject to availability and destination.

• Clearly structured, straightforward implementation via network-based safety technology

• Modular expandability through virtual wiring

• Immediate triggering of safety function due to short cycle times

• Easy implementation with transparent control and status information, even in the standard application

• Compact design

ACOPOSmulti SafeMOTION SinCos inverter module, 3.8 A, AS, cold plate or pass-through mounting

Accessories

Required accessories (order separately)

8BZVI0055SS.000-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxSS and 8BVI00xxHxSA modules: 1x 8TB3104.204G-11, 1x 8TB2104.203L-00, 1x 8TB2108.20…

Optional accessories (27)

8BXB000.0000-00	Accessory sets — ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder
8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8BAC0133.000-1	Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42…
8BAC0132.000-1	Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±…
8BAC0130.001-1	Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu…
8BAC0130.000-1	Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs…
8BAC0125.000-1	Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller…
8BAC0124.000-1	Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply…
8BAC0123.002-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.001-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.000-1	Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with…
8BAC0122.000-1	Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf…
8BAC0121.000-1	Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte…
8BAC0120.001-2	Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors…
8BAC0120.000-1	Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded…
8SCS009.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14
8SCS002.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS000.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm
8TB3104.204G-11	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110
8TB2108.2010-00	Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.203L-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010

Specifications

General information

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	Yes (openSAFETY)
Certifications – UL	cULus E225616; Power conversion equipment
B&R ID code	0xCD74
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2 " data-placement="top" data-html="true" data-container="body" data-content="SLOT 2 is available. SLOT 1 of the ACOPOSmulti module is occupied by the SafeMOTION module.">

DC bus connection

Voltage – Nominal	750 VDC
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 5 kHz	[0.6 * I M ² + 1.3 * I M + 60] W
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 10 kHz	[0.97 * I M ² + 0.5 * I M + 110] W
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 20 kHz	[1.7 * I M ² - 0.7 * I M + 225] W
Continuous power consumption " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	2.87 kW
DC bus capacitance	165 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	25 W + P SMC1 + P SLOT2 + P 24 V Out + P HoldingBrake " data-placement="top" data-html="true" data-container="body" data-content="P<sub>SMC1 </sub>... Max. power consumption P<sub>SMC</sub> [W] of the SafeMOTION module in SLOT1 (see section "Encoder interfaces"). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to the connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W).">
Variant	ACOPOSmulti backplane

24 VDC output

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	24 VDC ±6%
Quantity	2
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Motor connection " data-placement="top" data-html="true" data-container="body" data-content="Only B&R 8BCM motor cables are permitted to be used for wiring the motor connections!">

Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	No reduction " data-placement="top" data-html="true" data-container="body" data-content="Value for the nominal switching frequency.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	No reduction " data-placement="top" data-html="true" data-container="body" data-content="Value for the nominal switching frequency.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	0.6 A/K (starting at 58°C)
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	No reduction
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	0.1 A/K (starting at 34°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the return temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies. <br>Caution! Condensation can occur at low flow temperatures and return temperatures.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	0.1 A/K (starting at 18°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the ambient temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies.">
Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	0.38 A eff per 1000 m
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	Yes
Variant – U, V, W, PE	Connector
Variant – Shield connection	Yes
Terminal connection cross section – With wire end sleeve	0.25 to 4 mm²
Terminal connection cross section – UL/C-UL-US	30 to 10
Terminal connection cross section – CSA	28 to 10
Max. motor line length depending on switching frequency – Switching frequency 5 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 10 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 20 kHz	10 m
Quantity	1
Continuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	2.8 kW
Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	3.8 A eff
Peak current	9.5 A eff
Nominal switching frequency	5 kHz
Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.">	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004 " data-placement="top" data-html="true" data-container="body" data-content="If necessary, the stress of the motor isolation system can be reduced by an additional externally wired dv/dt choke. For example, the RWK 305 three-phase dv/dt choke from Schaffner (www.schaffner.com) can be used. IMPORTANT: Even when using a dv/dt choke, it is necessary to ensure that an EMC-compatible, low inductance shield connection is used!">	Limit value curve A " data-placement="top" data-html="true" data-container="body" data-content="Only applies when using B&R motor cables and B&R motors.">
Max. output frequency	598 Hz " data-placement="top" data-html="true" data-container="body" data-content="The module's electrical output frequency (SCTRL_SPEED_ACT * MOTOR_POLEPAIRS) is monitored to protect against dual use in accordance with Regulation (EC) 428/2009 \| 3A225. If the electrical output frequency of the module exceeds the limit value of 598 Hz uninterrupted for more than 0.5 s, then the current movement is aborted and error 6060 is output ("Power unit: Limit speed exceeded").">
Terminal cable cross section dimension of shield connection	12 to 22 mm

Motor holding brake connection

Protective measures – Overload and short-circuit protection	Yes
Protective measures – Open-circuit monitoring	Yes
Protective measures – Undervoltage monitoring	Yes
Quantity	1
Output voltage " data-placement="top" data-html="true" data-container="body" data-content="During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used.">	24 VDC +5.8% / -0% " data-placement="top" data-html="true" data-container="body" data-content="The specified value is only valid under the following conditions: <br>- The 24 VDC power supply for the module is provided by an 8B0C auxiliary supply module located on the same mounting plate. <br>If the 24 VDC power supply for the module is applied to the mounting plate using an 8BVE expansion module, then the output voltage is reduced because of voltage drops on the expansion cable. In this case, undervoltage monitoring must be disabled.">
Continuous current per connection	1.1 A
Max. internal resistance	0.5 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	1.5 Ws
Max. switching frequency	0.5 Hz
Response threshold for open-circuit monitoring	Approx. 0.25 A
Response threshold for undervoltage monitoring	24 VDC -2% / -4%

Encoder interfaces " data-placement="top" data-html="true" data-container="body" data-content="Only shielded lines are permitted to be used for wiring. <br>The stranded wire for the analog interface (Sin, nSin, Cos, nCos, Ref, nRef) and the digital interface (T, nT, D, nD) must be twisted pair with a wave impedance of 120 Ω ±10%. <br>Additional shielding of the analog interface is recommended.">

Electrical isolation – Encoder - ACOPOSmulti	No
Encoder power supply – Short-circuit proof	Yes
Encoder power supply – Overload-proof	Yes
Encoder power supply – Output voltage	5 V ±5% " data-placement="top" data-html="true" data-container="body" data-content="During the switch-on procedure for the encoder supply voltage (2 seconds), the monitoring limit for the power supply is increased from 5.25 V to 6 V. In this phase, overvoltages up to 6 V are not detected. <br>A short-term overvoltage of maximum 6 V is not permitted to damage the encoder electronics in any way. <br>Undervoltage on the encoder power supply must result in a sine or cosine signal outside the specification.">
Encoder power supply – Load capacity	300 mA " data-placement="top" data-html="true" data-container="body" data-content="An actual reserve of 12 mA exists for the terminating resistor.">
Encoder power supply – Sense lines	2, compensation of max. 2 x 0.7 V
Synchronous serial interface – Signal transmission	RS485
Synchronous serial interface – Data transfer rate	781.25 kbit/s
Sine/Cosine inputs – In motion	0.5 to 1.35 V " data-placement="top" data-html="true" data-container="body" data-content="The sine-cosine output signals from the measuring instrument are checked by the evaluation circuit using pointer length monitoring. <br>The pointer length z = 2 v((Sin - nSin)² + (Cos - nCos)²) is monitored according to the specified limits.">
Sine/Cosine inputs – At standstill	0.8 to 1.35 V " data-placement="top" data-html="true" data-container="body" data-content="The sine-cosine output signals from the measuring instrument are checked by the evaluation circuit using pointer length monitoring. <br>The pointer length z = 2 v((Sin - nSin)² + (Cos - nCos)²) is also monitored according to the specified limits from the time the evaluation circuit is switched on until a signal period has passed.">
Sine/Cosine inputs – Signal transmission	Differential signals, symmetrical
Sine/Cosine inputs – Differential voltage deviation per signal period	±10% " data-placement="top" data-html="true" data-container="body" data-content="The sine-cosine output signals from the measuring instrument are checked by the evaluation circuit using pointer length monitoring. <br>The pointer length z = 2 v((Sin - nSin)² + (Cos - nCos)²) is permitted to deviate by a maximum of ±10% per signal period.">
Sine/Cosine inputs – Common-mode voltage	Max. ±7 V
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Max. input frequency	200 kHz
Sine/Cosine inputs – Signal frequency (-5 dB)	<300 kHz
Sine/Cosine inputs – Signal frequency (-3 dB)	DC up to 200 kHz
Sine/Cosine inputs – ADC resolution	12-bit
Reference input – Signal transmission	Differential signal, symmetrical
Reference input – Differential voltage for low	≤-0.2 V
Reference input – Differential voltage for high	≥0.2 V
Reference input – Common-mode voltage	Max. -5 V to +9 V
Reference input – Terminating resistor	120 Ω
Position – Resolution @ 1 V SS " data-placement="top" data-html="true" data-container="body" data-content="This value does not correspond to the encoder resolution that must be configured in Automation Studio (16384 * number of encoder lines).">	Number of encoder lines * 5700
Position – Accuracy " data-placement="top" data-html="true" data-container="body" data-content="Limited by the encoder in practice.">	---
Position – Noise " data-placement="top" data-html="true" data-container="body" data-content="Limited by the encoder in practice.">	---
Quantity	1
Type	SinCos
Connections	15-pin female DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	50 m " data-placement="top" data-html="true" data-container="body" data-content="The maximum permissible cable length is 50 m.">
Max. power consumption per encoder interface	P SMC [W] = 25 V * (0.376 A + 0.35 * I Encoder [A]) " data-placement="top" data-html="true" data-container="body" data-content="I<sub>Encoder</sub> ... Max. current consumption of the connected encoder [A].">

Trigger inputs

Electrical isolation – Input - Inverter module	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay – Rising edge	52 µs ±0.5 µs (digitally filtered)
Switching delay – Falling edge	53 µs ±0.5 µs (digitally filtered)
Quantity	2
Circuit	Sink
Input current at nominal voltage	Approx. 10 mA
Modulation compared to ground potential	Max. ±38 V

Temperature sensor connection

Quantity	1
Resistance range	500 Ω to 5 kΩ

Electrical properties

Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Power dissipation relative to continuous apparent power " data-placement="top" data-html="true" data-container="body" data-content="Continuous apparent power S[VA] = √3 * UMains[Vrms] * IMains[Arms]. IE2 notation (a,b) stands respectively for a load point with frequency a (as a percentage of the nominal frequency of the motor) and current b (as a percentage of the continuous current).">	IE2 (10,25) 3.3% ; IE2 (50,25) 3.3% ; IE2 (10,50) 3.5% ; IE2 (50,50) 3.5% ; IE2 (90,50) 3.5% ; IE2 (10,100) 4% ; IE2 (50,100) 4% ; IE2 (90,100) 4%
Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Nominal losses in standby mode	8.5 W
Discharge capacitance	0.14 µF

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account.">	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20 " data-placement="top" data-html="true" data-container="body" data-content="This value only applies in its delivered state (SLOT2 of the module is sealed by a slot cover / shield plate). If SLOT2 on the module is not sealed, then the level of protection is reduced to IP10. It is important to note that a 8SCS005.0000-00 shield set (slot cover / shield plate) or plug-in module must always be inserted!">

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Cold plate	212 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Pass-through mounting	209 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Width	53 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Height	317 mm
Weight	Approx. 2.1 kg
Module width	1

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8BVI0028HCSA.000-1	PDF · 4 MB · 1.3 (06/27/2025) - EN
Integrated safety technology user's manual	PDF · 46 MB · 6.8.0 (09/02/2026) - EN
SafeMOTION User´s Manual	PDF · 35 MB · 4.9.2.1 (05/08/2026) - EN

CAD & dimension drawings

3D file STEP 8BVI0028HCSx.000-x

ZIP · 142 KB · 1.1 (04/22/2024)

Certificates (7)

E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C)	PDF · 282 KB · 1.30 (07/20/2022)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1)	PDF · 183 KB · 2.10 (07/20/2022)
EU Declaration FS Servos ACOPOSmulti	PDF · 989 KB · 2026-06 (07/08/2026) - EN
EU Declaration Servos ACOPOSmulti	PDF · 963 KB · 2026-06 (06/30/2026)
TÜV-Certificate - Functional Safety ACOPOSmulti SafeMOTION SinCos	ZIP · 885 KB · 2.00 (09/08/2025) - EN
UK Declaration FS Servos ACOPOSmulti	PDF · 340 KB · 2026-06 (07/08/2026) - EN
UK Declaration Servos ACOPOSmulti	PDF · 337 KB · 2026-06 (06/29/2026)
