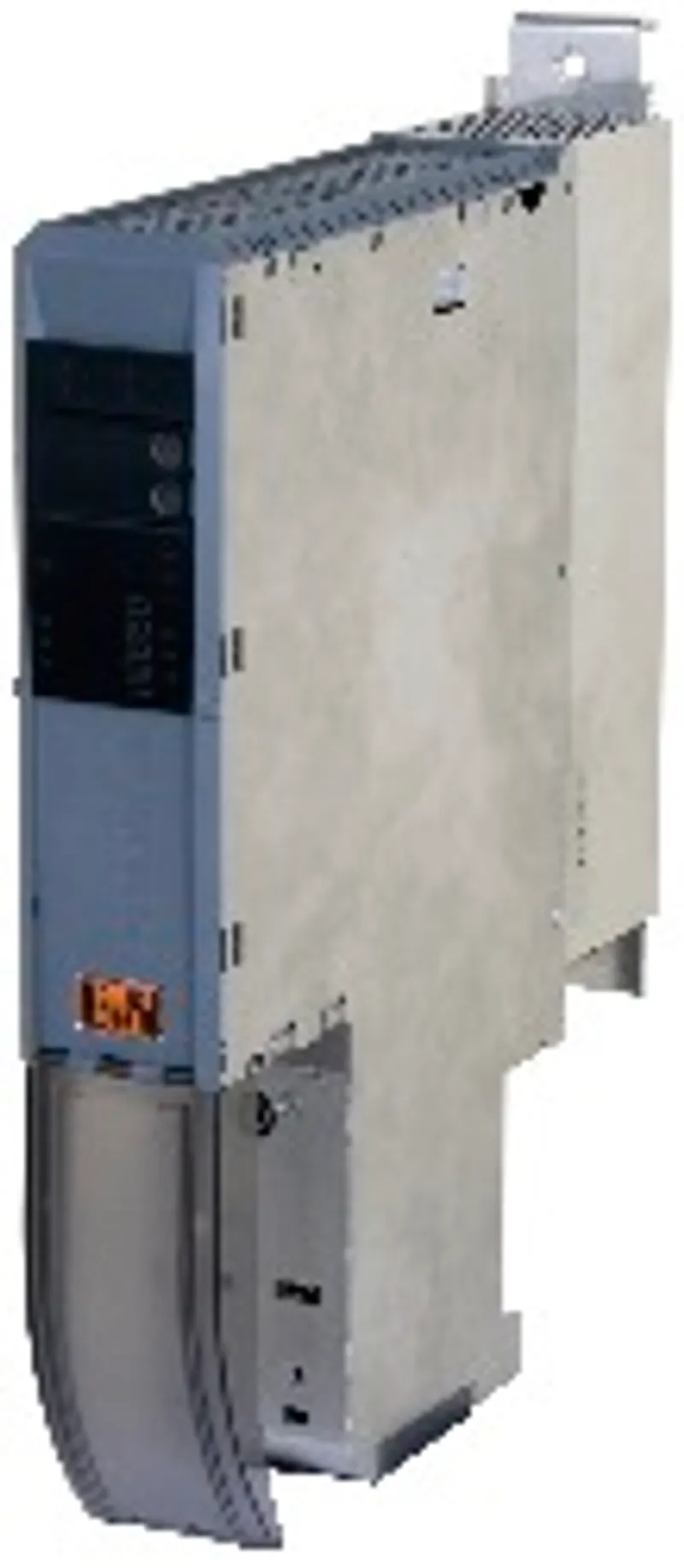

B&R 8BVE0500HW00.000-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall mounting |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 8BVE0500HW00.000-1 be shipped?
8BVE0500HW00.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BVE0500HW00.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BVE0500HW00.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVE0500HW00.000-1, subject to availability and destination.
For distributing the DC bus power supply and 24 VDC auxiliary supply to multiple mounting platesFor setting up decentralized units in the ACOPOSmulti drive systemOutput for overload protection ACOPOSmulti expansion module 50 A, AS, wall mounting
Specifications
Specifications
| Cooling and mounting type | Wall mounting |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Nominal | 5 to 40°C |
| 10 A | No (overload indicated via LED, dry alarm contacts present) |
| 20 A | No (overload indicated via LED, dry alarm contacts present) |
| 50 A | No (overload indicated via LED, dry alarm contacts present) |
| Reduction of continuous power at ambient temperatures starting at 40°C | 1.25% per °Kelvin |
| Starting at 500 m above sea level | 10% per 1000 m |
| Reduction of continuous power depending on cooling method | No reduction |
| Power dissipation with continuous power | 200 W |
| Variant | ACOPOSmulti backplane |
| Input voltage | 25 VDC ±1.6% |
| 12 A | 240 W |
| 30 A | 600 W |
| Max. power consumption | 5 W |
| Quantity | 2 |
| Type | Melting fuse ø 10 x 38 mm |
| Tripping characteristic | Fast-acting |
| Rated current | 12 / 30 A |
| Short-circuit and ground fault protection | Yes |
| Max. line length between two expansion modules | 5 m |
| DC+, DC-, PE | Connector |
| Shield connection | No |
| With wire end sleeve | 0.25 to 6 mm² |
| UL/C-UL-US | 22 to 10 AWG |
| CSA | 22 to 10 AWG |
| Terminal cable cross section dimension of shield connection | 12 to 22 mm |
| DC bus voltage (UDC): 260 to 315 VDC | 25 VDC * (DC bus voltage / 315) |
| DC bus voltage (UDC): 315 to 800 VDC | 24 VDC ±6% |
| Overload protection | Yes |
| Short-circuit proof | No |
| 24 VDC, COM | Connector |
| Alarm contact 1 | Normally closed contact |
| Alarm contact 2 | Normally open contact |
| Alarm contact - ACOPOSmulti module | Yes |
| Alarm contact - Alarm contact | Yes |
| Nominal voltage | 30 VDC |
| Maximum current | 1 A |
| Switching delay | 3 ms |
| Max. number of switching cycles | 100,000 |
| Overload-proof | No |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Maximum | 55°C |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Operation | 5 to 85% |
| Width | 53 mm |
| Height | 317 mm |
| Wall mounting | 263 mm |
| Weight | Approx. 3.1 kg |
| Module width | 1 |
