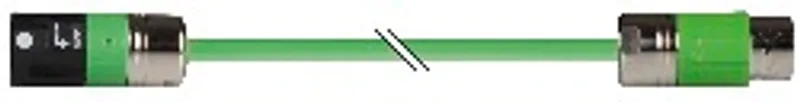

B&R 8BCR0017.11230-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Resolver Cables SpringTec connector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.2 kg |
Shipping & availability
When can 8BCR0017.11230-0 be shipped?
8BCR0017.11230-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCR0017.11230-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCR0017.11230-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCR0017.11230-0, subject to availability and destination.
UL/CSA listedCan be used in cable drag chainsAssembled specifically for 8BCRxxxx.1121A-0 motor cablesspringtec - Innovative connector system for fast and secure connections Cable extension for resolver cables with series 615 signal connector, length 17 m, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 6 |
| Wire insulation | Special thermoplastic material |
| Wire colors | White/Brown, green/yellow, gray/pink |
| Variant | Tinned copper stranded wire |
| Cross section | 24 AWG / 19 AWG |
| Shield | No |
| Stranding | White with brown, green with yellow, gray with pink |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
| Material | PUR |
| Color | Green, similar to RAL 6018 flat |
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 12-pin male coupling Mating cycles: <500 Contacts: 12 Degree of protection per EN 60529: IP66/67 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | ≤30 Veff |
| Wire - Wire | 1.5 kV |
| Wire - Shield | 0.8 kV |
| Signal line | ≤86 Ω/km |
| Insulation resistance | >200 MΩ*km |
| Moving | ≥50 mm |
| Static | -20°C to +90°C |
| Length | 17 m |
| Diameter | 6.5 mm ±0.2 mm |
| Single bend | ≥20 mm |
| Acceleration | ≤6 g |
| Flex cycles | >3,000,000 |
| Velocity | ≤4 m/s |
| Weight | 1.2 kg |
