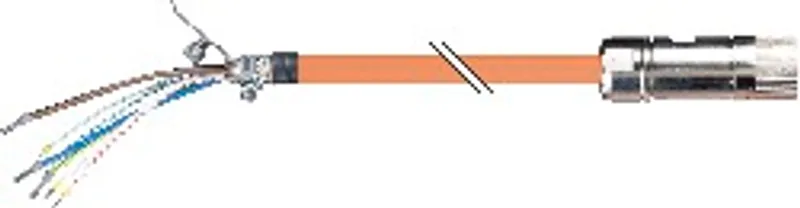

B&R 8BCM05X5.1312A-0

Name: B&R 8BCM05X5.1312A-0
Brand: B&R
SKU: 8BCM05X5.1312A-0

MPN: 8BCM05X5.1312A-0 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	4 mm² motor cables
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.5 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8BCM05X5.1312A-0 be shipped?

8BCM05X5.1312A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BCM05X5.1312A-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BCM05X5.1312A-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM05X5.1312A-0, subject to availability and destination.

• Can be used in cable drag chains

• Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with motor connector size 1

• speedtec - Innovative connector system for secure connections

• Integrated shield plate

A shield plate is attached to ACOPOSmulti 8BCM motor cables. If this shield plate is correctly installed on the respective ACOPOSmulti 8BVI inverter module, no additional shielding measures are necessary.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm²
Durability	Oil resistance per HD 22.10 appendix A and DIN EN 60811-404 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	4 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PP
Signal line – Wire colors	White, white/red, white/blue, white/green
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	2 x 0.75 mm² + 2 x 1.0 mm²
Signal line – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	White with white/red and white/blue with white/green
Outer jacket – Material	TPU
Outer jacket – Color	Orange, similar to RAL 2003 flat
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	8-pin female speedtec motor connector, size 1
Mating cycles	<500
Contacts	8 (4 power and 4 signal contacts)
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Test voltage – Wire - Wire	4 kV
Test voltage – Wire - Shield	4 kV
Conductor resistance – Power lines	≤5.1 Ω/km
Conductor resistance – Signal line	0.75 mm²: ≤26.7 Ω/km, 1 mm²: ≤20 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	30 A " data-placement="top" data-html="true" data-container="body" data-content="Limited to 30 A by the motor connector.">
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	30 A " data-placement="top" data-html="true" data-container="body" data-content="Limited to 30 A by the motor connector.">
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	30 A " data-placement="top" data-html="true" data-container="body" data-content="Limited to 30 A by the motor connector.">
Operating voltage	Max. 1000 VAC (UL)
Insulation resistance	≥500 MΩ*km

Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Dimensions – Length	5.5 m
Dimensions – Diameter	15.4 mm ±0.4 mm
Bend radius – Single bend	>48 mm
Bend radius – Moving	>119 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature from -20°C to +60°C.">	≥5,000,000
Drag chain data – Velocity	Max. 300 m/min
Weight	1.5 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8BCM05X5.1312A-0

PDF · 219 KB · 1.4 (12/14/2023) - EN

Certificates (3)

E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C)	PDF · 282 KB · 1.30 (07/20/2022)
EU Declaration Servos ACOPOSmulti	PDF · 963 KB · 2026-06 (06/30/2026)
UK Declaration Servos ACOPOSmulti	PDF · 337 KB · 2026-06 (06/29/2026)
