B&R 8BCM0007.15250-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.8 kg |
Shipping & availability
When can 8BCM0007.15250-0 be shipped?
8BCM0007.15250-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCM0007.15250-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCM0007.15250-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM0007.15250-0, subject to availability and destination.

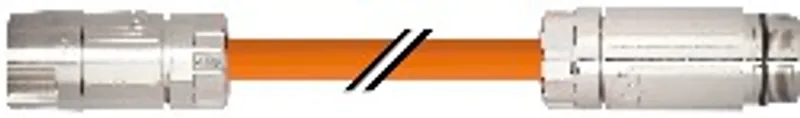

UL/CSA listedCan be used in cable drag chainsAssembled specifically for motor cables 8BCMxxxx.1523A-0 with standard size 1.5 connectorspeedtec - Innovative connector system for secure connections Cable extension for 10 mm² motor cables with speedtec/standard connector size 1.5, length 7 m, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 4x 10 mm² + (2x 0.75 mm²)C + (2x 1.5 mm²)C |
| Durability | Oil resistance per HD 22.10 appendix A DIN EN 60811-404 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 4 |
| Wire insulation | PP |
| Wire colors | White, white/red, white/blue, white/green |
| Variant | Tinned copper stranded wire |
| Cross section | 2x 0.75 mm² + 2x 1.5 mm² |
| Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Stranding | White with white/red and white/blue with white/green |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
| Material | TPU |
| Color | Orange, similar to RAL 2003 flat |
| Type | 8-pin female speedtec motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Additional connectors | 8-pin male coupling Mating cycles: <500 Contacts: 8 Degree of protection per EN 60529: IP66/67 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | Max. 1000 VAC (UL) |
| Wire - Wire | 4 kV |
| Wire - Shield | 4 kV |
| Power lines | ≤2 Ω/km |
| Signal line | 0.75 mm²: ≤26.7 Ω/km, 1.5 mm²: ≤13.7 Ω/km |
| Insulation resistance | ≥500 MΩ*km |
| Wall mounting | 64.6 A |
| Installed in conduit or cable duct | 54.6 A |
| Installed in cable tray | 68.3 A |
| Moving | >154 mm |
| Static | -20°C to +90°C |
| Length | 7 m |
| Diameter | 20.1 mm ±0.4 mm |
| Single bend | >62 mm |
| Acceleration | Max. 50 m/s² (depends on the length of the travel path) |
| Flex cycles | ≥5,000,000 |
| Velocity | Max. 300 m/min |
| Weight | 3.8 kg |
