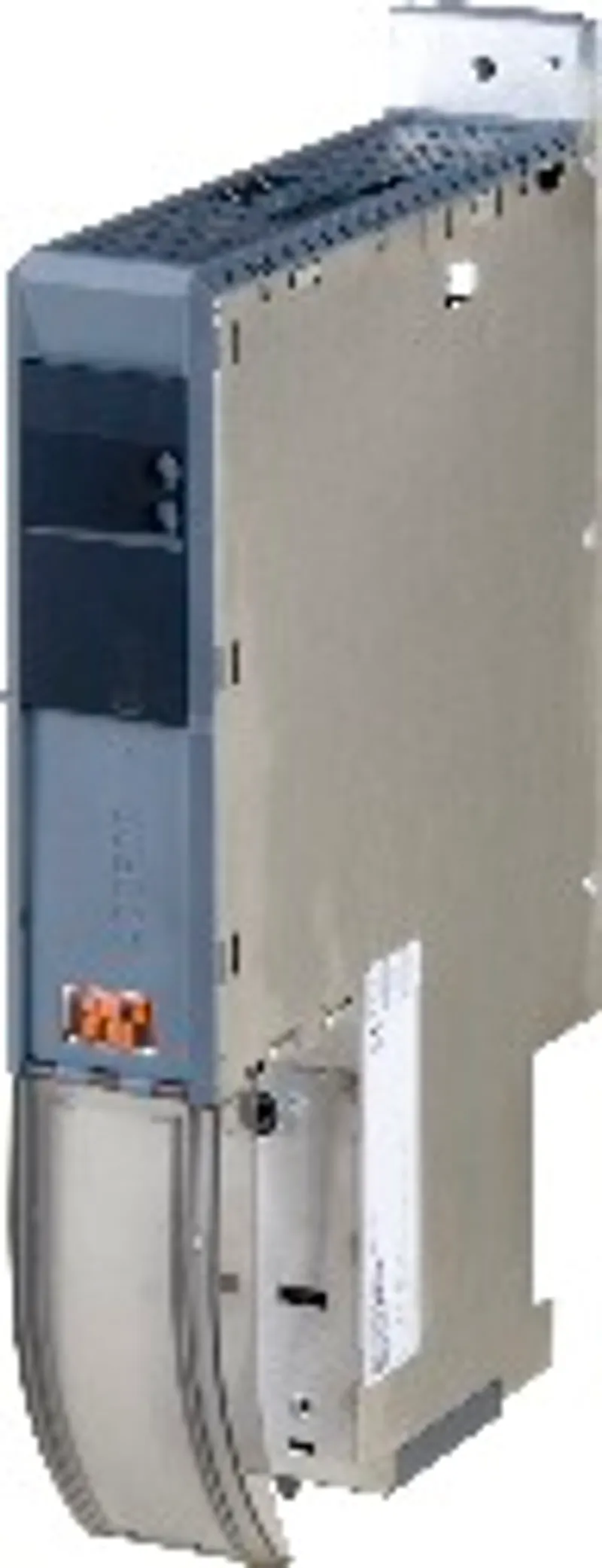

B&R 8B0C0320HC00.B00-1

Name: B&R 8B0C0320HC00.B00-1
Brand: B&R
SKU: 8B0C0320HC00.B00-1

MPN: 8B0C0320HC00.B00-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold-plate or feed-through mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.6 kg

Shipping & availability

When can 8B0C0320HC00.B00-1 be shipped?

8B0C0320HC00.B00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8B0C0320HC00.B00-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8B0C0320HC00.B00-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0C0320HC00.B00-1, subject to availability and destination.

ACOPOSmulti auxiliary supply module, 35 A, AS, cold plate or pass-through mounting, 42...58 VOut

Specifications

Cooling and mounting type	Cold plate
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E225616 Power conversion equipment
Nominal	5 to 40°C
Operating range in continuous operation	260 to 800 VDC
Full continuous power	550 to 800 VDC
Continuous power consumption	Max. 2120 W
Power dissipation with continuous power	15 W (0% continuous power) 30 W (50% continuous power) 90 W (100% continuous power)
DC bus capacitance	1.2 µF
Variant	Connector
Quantity	1
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset
24 VDC, COM	Connector
Input voltage	25 VDC ±1.6%
Input capacitance	47 µF
Max. power consumption	7 W + P 24 VDC Out
Workspace	42 to 58 VDC
Residual ripple	Typ. 200 mVSS
Input stability	Typ. <50 mV (dynamic)
Load stability	250 mVSS (dynamic)
Continuous power	(Output voltage / 58 VDC) * 2030 W
Continuous current	±35 A
Peak current	±60 A (max. 2 s)
Depending on ambient temperature	0.2 A/K (starting at 40°C)
Depending on installation elevation	3.5 A per 1000 m (starting at 500 m above sea level)
Depending on the input voltage	0,136 A/V * (600 V - Input voltage)
Depending on cooling type	No reduction
Startup delay	Max. 8 s
Startup time	Typ. 300 ms
No-load proof	Yes
Overload-proof	Yes
Short-circuit proof	Yes
Feedback protection	Yes <63 V
Overtemperature protection	Yes
Output/Input isolation	PELV
Shield connection	Yes
Connection	Parallel connection on output: Not permitted Serial connection on output: Not permitted
Max. cable length	30 m
Type	POWERLINK V2 controlled node (CN)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Modulation compared to ground potential	±38 VDC
Circuit	Sink
Input current at nominal voltage	Typ. 10 mA
Switching threshold	LOW: <5 VDC HIGH: >15 VDC
Maximum	55°C
Electrical isolation	Yes
Rising edge	52 ±0.5 µs (digitally filtered)
Falling edge	53 ±0.5 µs (digitally filtered)
Shielding	No
Voltage	Max. 30 VDC
Current	Max. 100 mA
Loop through for STO	Yes
Load pulse	3 mA
Pulse duration	Max. 500 ms
Threshold value for undervoltage warning	5.2 V
Idle current	Max. 10 µA
mapp Motion	5.13.1 and higher
ACP10/ARNC0	All versions
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	Max. 95% at 40°C
Operation	5 to 85%
Width	53.5 mm
Height	317 mm
Cold plate	212 mm
Weight	2.6 kg
Module width	1
