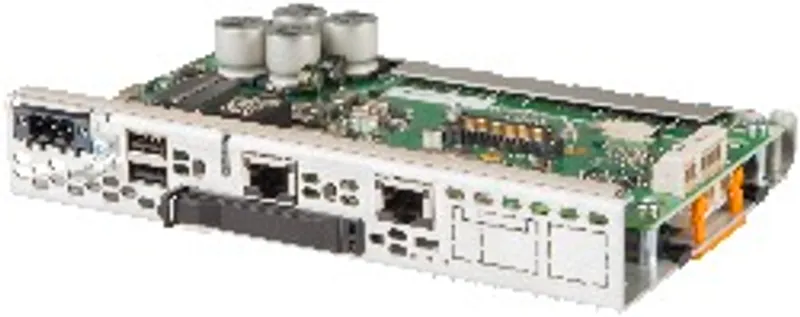

B&R 5PPC2100.BY01-001
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 527 kg |
Shipping & availability
When can 5PPC2100.BY01-001 be shipped?
5PPC2100.BY01-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PPC2100.BY01-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PPC2100.BY01-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PPC2100.BY01-001, subject to availability and destination.
Panel PC 2100 - Intel Atom E3815 1.46 GHz - Single core - 1 GB SDRAM - For Automation Panel swing arm devices
Specifications
Specifications
| LEDs | Power, CFast, Link, Run |
| B&R ID code | 0xE523 |
| Cooling | Passive via housing |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | No |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267Industrial control equipment |
| EAC | Product family certification |
| Bootloader | UEFI BIOS |
| Type | 1x USB 3.01x USB 2.0 |
| Clock frequency | 1460 MHz |
| Number of cores | 1 |
| Architecture | 22 nm |
| L2 cache | 512 kB |
| Intel 64 architecture | Yes |
| Intel Hyper-Threading Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Chipset | Intel Bay Trail |
| Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Retention time | Typ. approx. 400 hMin. approx. 200 h |
| Battery-backed | No |
| Controller | Intel HD Graphics |
| Buffer time | 10 ms |
| Memory size | 1 GB |
| Velocity | DDR3L-1067 |
| Memory interface width | Single channel |
| Removable | No |
| Color depth | Max. 32-bit |
| Power management | ACPI 4.0 |
| Quantity | 2 |
| Variant | RJ45, shielded |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 1 A per connection |
| Max. baud rate | 1 Gbit/s |
| Interface option | 1 |
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.5 A |
| Inrush current | Typ. 6 A, max. 10 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Operation | Max. 3000 m (component-dependent) |
| Weight | 527 g |
