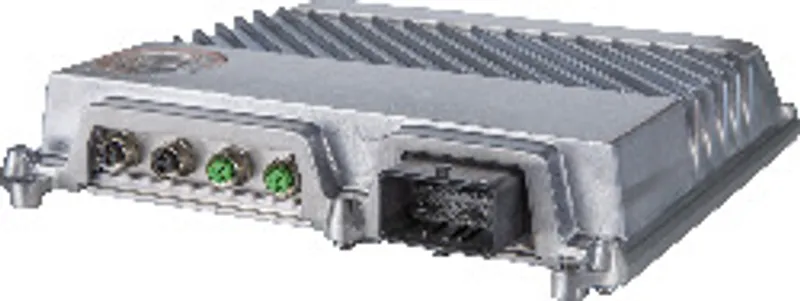

B&R 5MPC3100.K038-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | System units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.2 kg |
Shipping & availability
When can 5MPC3100.K038-000 be shipped?
5MPC3100.K038-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5MPC3100.K038-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5MPC3100.K038-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MPC3100.K038-000, subject to availability and destination.
2x USB interfaces (USB 2.0)2x 100 Mbit Ethernet interfacesUp to 16 GB RAMUp to 480 GB storage capacityCMC multi-header with audio, CAN, RS232, RS422/RS485IP69K2x slot for expansion option APC mobile 3100, Intel Celeron 3965U 2.2 GHz, 8 GB RAM, 120 GB flash memory, 2x PCIe slots for expansion options, Interfaces: 2x Ethernet 10/100 Mbit/s to M12, 2x USB 2.0 to M12, 1x CAN to multi-header, 1x RS422/485 to multi-header, 1x RS232 to multi-header
Specifications
Specifications
| LEDs | Power, Disk, Link, Run |
| B&R ID code | 0xF995 |
| Cooling | Passive (fanless) |
| Type | USB 2.0 |
| Service life | 4 years |
| Removable | No |
| Variant | M12, D-coded, female |
| Power button | No, externally controllable via CMC interface |
| Reset button | No, externally controllable via CMC interface |
| Buzzer | No |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| Bootloader | UEFI BIOS |
| Clock frequency | 2200 MHz |
| Number of cores | 2 |
| Architecture | 14 nm |
| Thermal design power (TDP) | 15 W |
| Intel Smart Cache | 2 MB |
| Intel 64 architecture | Yes |
| Intel Turbo Boost Technology | No |
| Intel Hyper-Threading Technology | No |
| Intel vPro Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Chipset | Intel Kaby Lake U |
| Trusted Platform Module | TPM 2.0 |
| Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Battery-backed | Yes |
| Controller | Intel HD Graphics 610 |
| Buffer time | 10 ms |
| Memory size | 8 GB |
| Color depth | Max. 32-bit |
| DirectX support | 12 |
| OpenGL support | 4.4 |
| Power management | ACPI 5.0 |
| Quantity | 1 |
| Transfer rate | 10/100 Mbit/s |
| Current-carrying capacity | Max. 0.5 A per connection |
| Max. baud rate | Max. 100 Mbit/s |
| Version | 1.2 |
| Interface option | 1 |
| Monitor/Panel option | 1 |
| Capacity | 120 GB |
| Data reliability | <1 unrecoverable error per 1016 bits read |
| MTBF | 3,000,000 h |
| S.M.A.R.T. support | Yes |
| Interface | PCIe Gen3 (NVMe 1.3c) |
| Continuous reading | Max. 1100 MB/s |
| Continuous writing | Max. 500 MB/s |
| 4k read | Max. 50,000 (random) |
| 4k write | Max. 85,000 (random) |
| 3D TLC flash memory | Yes |
| Theoretical | 256 TBW |
| Client workload | 60 TBW |
| Storage health data support | Yes, AR 4.91 and later |
| Nominal voltage | +9 to 32 VDC, SELV/PELV |
| Nominal current | Max. 3.2 A at +24 V |
| Inrush current | Max. 60 A for < 300 µs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | No |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP69K |
| Operation | 3000 m |
| Storage | -40 to +85°C, condensing |
| Transport | -40 to +85°C, condensing |
| Width | 250 mm |
| Height | 48 mm (without heat sink) |
| Depth | 228 mm |
| Weight | Approx. 1950 g |
