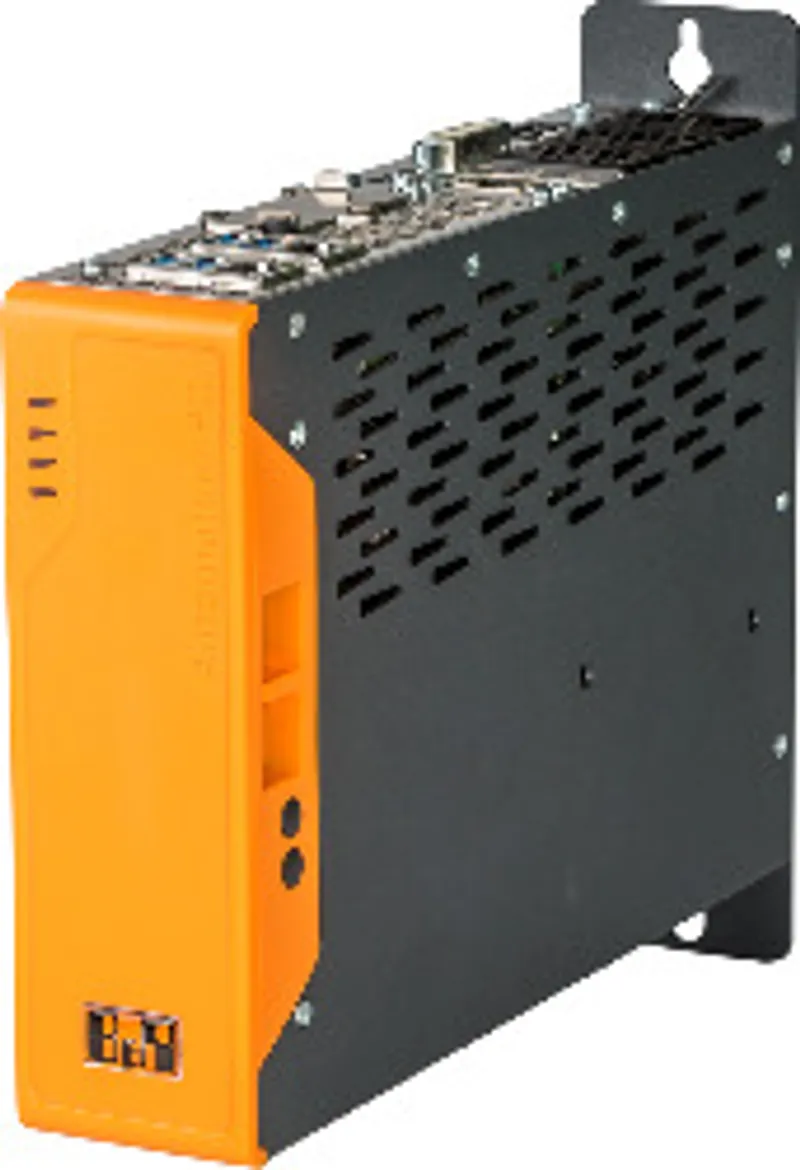

B&R 5APC3100.KBU1-000

Name: B&R 5APC3100.KBU1-000
Brand: B&R
SKU: 5APC3100.KBU1-000

MPN: 5APC3100.KBU1-000 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	System units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1380 kg

Shipping & availability

When can 5APC3100.KBU1-000 be shipped?

5APC3100.KBU1-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5APC3100.KBU1-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5APC3100.KBU1-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5APC3100.KBU1-000, subject to availability and destination.

APC3100 system unit - Intel Core i3 7100U 2.4 GHz - Dual core

Specifications

LEDs	Power, Disk, Link, Run
B&R ID code	0xEF97
Cooling	Passive via heat sink
Type	SDL/DVI
Service life	4 years
Removable	Yes
Variant	DVI-D
Power button	Yes
Reset button	Yes
Buzzer	No
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E115267 Industrial control equipment
HazLoc	cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4
Bootloader	UEFI BIOS
Clock frequency	2400 MHz
Number of cores	2
Architecture	14 nm
Thermal design power (TDP)	15 W
Intel Smart Cache	3 MB
Intel 64 architecture	Yes
Intel Turbo Boost Technology	No
Intel Hyper-Threading Technology	Yes
Intel vPro Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Enhanced Intel SpeedStep Technology	Yes
Chipset	Intel Kabylake-U
Trusted Platform Module	TPM 2.0
Accuracy	At 25°C: Typ. 12 ppm (1 second) per day
Battery-backed	Yes
Controller	Intel HD Graphics 620
Buffer time	10 ms
Number of memory channels	2
Memory size	Max. 32 GB
Max. memory bandwidth	34.1 GB/s
Color depth	Max. 32-bit
DirectX support	12
OpenGL support	4.4
Power management	ACPI 5.0
Quantity	2
Transfer rate	10/100/1000 Mbit/s
Current-carrying capacity	Max. 1 A per connection
Max. baud rate	1 Gbit/s
Interface option	3
Nominal voltage	24 VDC ±25%, SELV
Nominal current	Max. 5.5 A
Inrush current	Max. 60 A for < 300 µs
Overvoltage category per EN 61131-2	II
Galvanic isolation	Yes
Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	IP20
Operation	Max. 3000 m (component-dependent)
Width	54 mm
Height	173.5 mm
Depth	248.3 mm
Weight	1380 g
