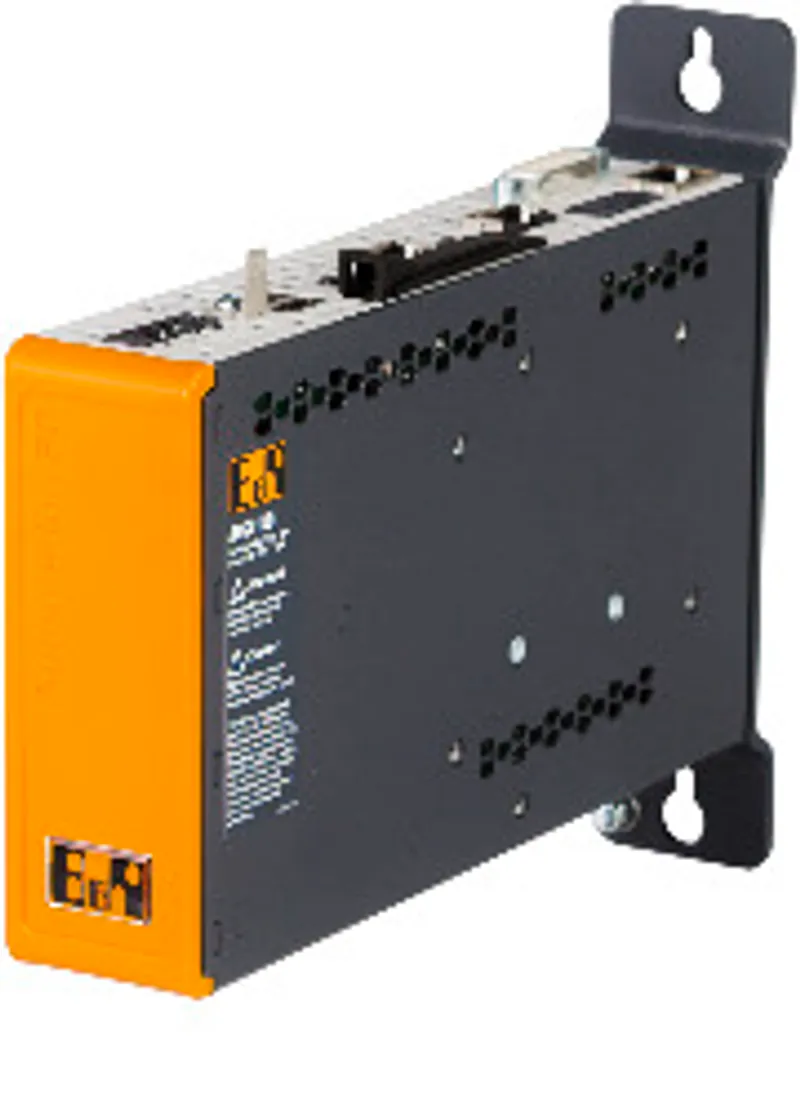

B&R 5APC2100.BY11-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | System units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1170 kg |
Shipping & availability
When can 5APC2100.BY11-000 be shipped?
5APC2100.BY11-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5APC2100.BY11-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5APC2100.BY11-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5APC2100.BY11-000, subject to availability and destination.
Intel Atom E3825 processorIntel Bay Trail platformIntel HD graphics1 GB DDR3 memory1 CFast slotInsert for 1 monitor/panel optionInsert for 1 interface option APC2100 system unit - Intel Atom E3825 1.33 GHz - Dual core - 1 GB SDRAM
Specifications
Specifications
| LEDs | Power, CFast, Link, Run |
| B&R ID code | 0xE5C2 |
| Cooling | Passive via housing |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | No |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| Bootloader | UEFI BIOS |
| Type | 1x USB 3.0 1x USB 2.0 |
| Clock frequency | 1330 MHz |
| Number of cores | 2 |
| Architecture | 22 nm |
| Thermal design power (TDP) | 6 W |
| L2 cache | 1 MB |
| Intel 64 architecture | Yes |
| Intel Hyper-Threading Technology | No |
| Intel vPro Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Chipset | Intel Bay Trail |
| Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Retention time | Typ. approx. 400 h Min. approx. 200 h |
| Battery-backed | No |
| Controller | Intel HD Graphics |
| Buffer time | 10 ms |
| Memory size | 1 GB |
| Velocity | DDR3L-1067 |
| Memory interface width | Single channel |
| Removable | No |
| Max. dynamic graphics frequency | 533 MHz |
| Color depth | Max. 32-bit |
| DirectX support | 11 |
| OpenGL support | 4.0 |
| Power management | ACPI 4.0 |
| Quantity | 2 |
| Variant | RJ45, shielded |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 1 A per connection |
| Max. baud rate | 1 Gbit/s |
| Interface option | 1 |
| Monitor/Panel option | 1 |
| Automation Studio | Up to V4.12 |
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | Max. 3 A |
| Inrush current | Typ. 6 A, max. 10 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 |
| Operation | Max. 3000 m (component-dependent) |
| Width | 40 mm |
| Height | 115 mm |
| Depth | 198 mm |
| Weight | 1170 g |
