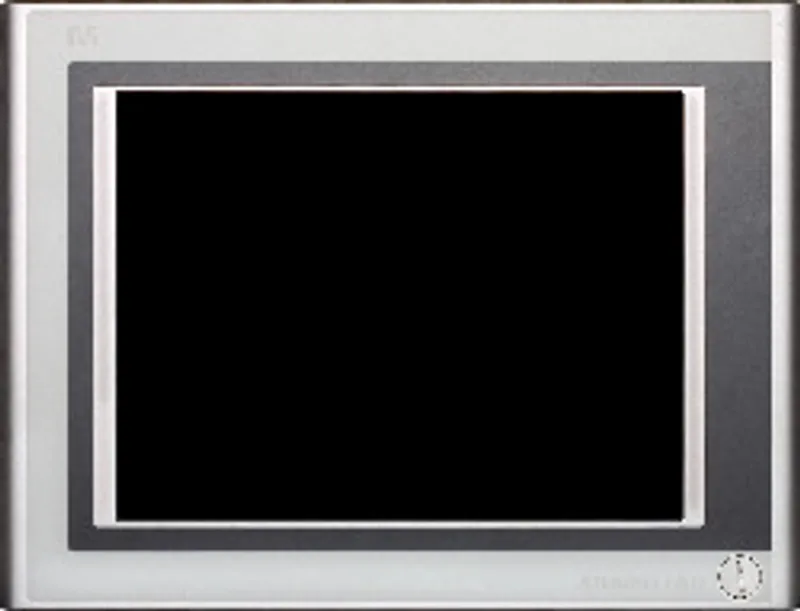

B&R 5AP920.1043-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.29 kg |
Shipping & availability
When can 5AP920.1043-01 be shipped?
5AP920.1043-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP920.1043-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP920.1043-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP920.1043-01, subject to availability and destination.
10.4" VGA color TFT displayAnalog resistive touch screenSmall installation depthFan-free operationCan be upgraded with Display Link cards or PPC300 Automation Panel AP920 10.4" TFT - 640 x 480 pixels (4:3) - Single-touch (analog resistive) - Landscape format - IP65 protection (front)
Specifications
Specifications
| B&R ID code | 0x1A09 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| UL | cULus E115267 Industrial control equipment |
| Type | USB 2.0 |
| Diagonal | 10.4" (264 mm) |
| Colors | 16 million |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 700:1 |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 60° |
| Brightness | 450 cd/m² |
| Half-brightness time | 50,000 h |
| Transmittance | 81% ±3% |
| Anti-glare coating | - |
| Technology | Analog, resistive |
| Controller | Elo, serial, 12-bit |
| Quantity | 2 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA per connection |
| Function keys | No |
| Soft keys | No |
| System keys | No |
| Service life | - |
| LED luminous intensity | - |
| yellow | - |
| Compatible installation for PPC300 slot | Yes |
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | Max. 3.2 A |
| Inrush current | Typ. 6 A, max. 30 A for < 300 µs |
| Power consumption | Typ. 10 W, max. 13 W or 19 W with USB (without slot) |
| Galvanic isolation | Yes |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Back: IP20 (only with an inserted Automation Panel Link card) Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water |
| Operation | Max. 3000 m |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Coating | Similar to Pantone 432CV |
| Frame | Aluminum, naturally anodized |
| Design | Gray |
| Light background color | Similar to Pantone 427CV |
| Dark border color around display | Similar to Pantone 432CV |
| Gasket | Flat gasket around display front |
| Width | 323 mm |
| Height | 260 mm |
| Depth | 55 mm |
| Weight | Approx. 2900 g |
