B&R 5ACCMA00.0001-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mounting units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2500 kg |
Shipping & availability
When can 5ACCMA00.0001-000 be shipped?
5ACCMA00.0001-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCMA00.0001-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCMA00.0001-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCMA00.0001-000, subject to availability and destination.

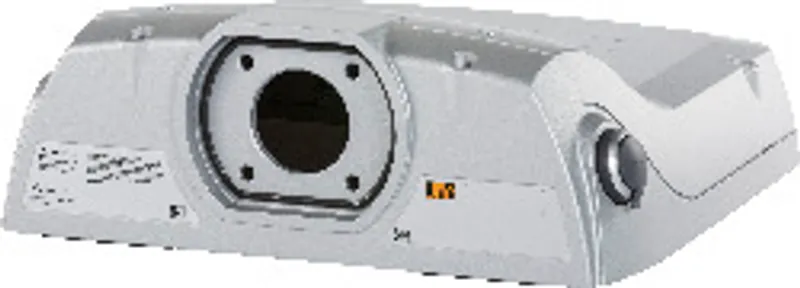

Protects the installed link module / system unitFor swing arm mounting with flangeUSB 2.0 interfaceIP65 protection The mounting unit is installed on the back of the panel. It protects the installed link module / system unit, enabling IP65 protection for the complete system. The flange is installed on the mounting unit. Due to the symmetrical design of the back of the panel, it is possible to install the mounting unit in 2 directions. If a flange is selected for mounting, flange output is possible towards the top or bottom.A USB interface is available on the side of the mounting unit for service purposes.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E115267 Industrial control equipment |
| Quantity | 1 |
| Type | USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s) |
| Current-carrying capacity | Max. 500 mA |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 |
| Degree of protection per UL 50 | Type 4X indoor |
| Material | Aluminum, coated |
| Coating | White aluminum (similar to RAL 9006) |
| Installation | Swing arm (with flange) |
| Width | 280 mm |
| Height | 259 mm |
| Depth | 96 mm |
| Weight | 2500 g |
