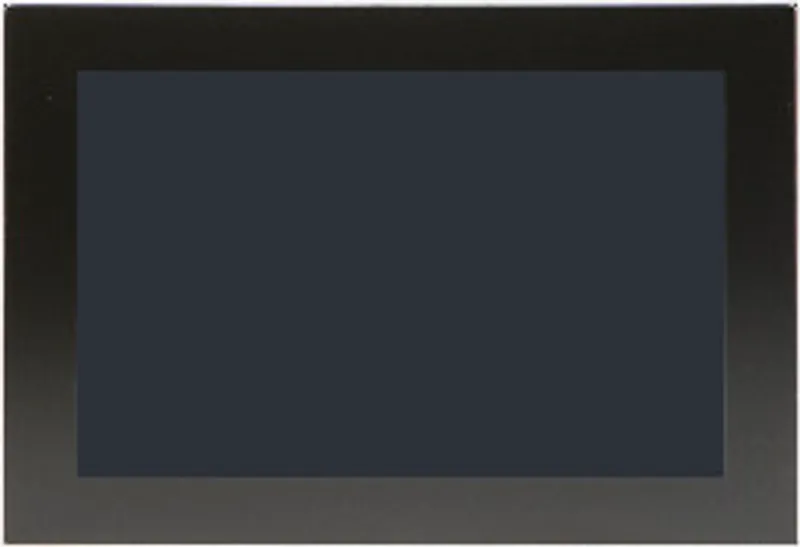

B&R 4PPC80.121E-12B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power Panel C80 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.3 kg |
Shipping & availability
When can 4PPC80.121E-12B be shipped?
4PPC80.121E-12B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4PPC80.121E-12B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4PPC80.121E-12B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PPC80.121E-12B, subject to availability and destination.
Power Panel C80, 12.1", glass front, fieldbus interfaces: 1x CAN bus, 1x RS232. CPU and memory: 1600 MHz (Intel Atom E3940), 4 GB DRAM, 64 kB FRAM, 4 GB onboard flash drive. Display and touch screen: 12.1", 1280 x 800 (WXGA) resolution, projected capacitive touch screen, multi-touch support, glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x POWERLINK, 1x Ethernet 10/100/1000 Mbit/s, 1x X2X Link, 2x USB 3.0, 1x CAN bus, 1x RS232.
Specifications
Specifications
| B&R ID code | 0xF9E2 |
| Cooling | Passive |
| Power button | No |
| Reset button | Yes |
| Status indicators | Operating state, terminating resistor LEDs, interface status |
| Buzzer | No |
| mapp View | Yes |
| Controller redundancy | No |
| Visual Components support | Yes |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| Real-time clock | Nonvolatile, resolution 1 s |
| Type | RS232 |
| Clock frequency | 1600 MHz |
| Number of cores | 4 |
| Architecture | 14 nm |
| Thermal design power (TDP) | 9.5 W |
| Data code | 32 kB |
| Program code | 32 kB |
| L2 cache | 2 MB |
| Intel 64 architecture | Yes |
| Intel Hyper-Threading Technology | No |
| Intel vPro Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Mode/Node switches | No |
| Remanent variables | 64 kB FRAM, retention >10 years |
| Shortest task class cycle time | 0.4 ms |
| Typical instruction cycle time | 0.01 µs |
| Chipset | Apollo Lake |
| Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Retention time | Approx. 8 years |
| Battery-backed | Yes |
| Memory size | 4 GB |
| Velocity | DDR4L-2133 |
| Memory interface width | Dual channel |
| Removable | No |
| Controller | Intel HD Graphics |
| Max. dynamic graphics frequency | 600 MHz |
| Color depth | Max. 32-bit |
| DirectX support | 12 |
| OpenGL support | 4.3 |
| Data retention | 10 years |
| Theoretical | 150 TBW |
| Client workload | 90 TBW |
| Error-correcting code (ECC) | Yes |
| Power management | ACPI 5.0 |
| Diagonal | 12.1" |
| Colors | 16.7 million LVDS |
| Resolution | WXGA 1280 x 800 px |
| Contrast | Typ. 800:1 |
| Horizontal | Direction L / Direction R = Typ. 80° |
| Vertical | Direction U = Typ. 80° / Direction D = Typ. 65° |
| Brightness | Typ. 400 cd/m² |
| Half-brightness time | 50,000 h |
| Transmittance | ≥85% |
| Technology | PCT (projected capacitive touch) |
| Surface | Glass, chemically hardened (6H) |
| Screen rotation | Yes |
| Fieldbus | X2X Link master |
| Variant | 3 pins of the 10-pin multipoint connector |
| Line length | Max. 100 m between 2 nodes (segment length) |
| Max. transfer rate | 10/100/1000 Mbit/s |
| Physical layer | 10BASE-T/100BASE-TX/1000BASE-T |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Current-carrying capacity | 1 A |
| Max. distance | Max. 100 m between 2 nodes (segment length) |
| Bus length ≤25 m | 1 Mbit/s |
| Bus length ≤60 m | 500 kbit/s |
| Bus length ≤200 m | 250 kbit/s |
| Bus length ≤1000 m | 50 kbit/s |
| Transfer rate | Max. 115.2 kbit/s |
| Nominal voltage | 24 VDC, SELV/PELV |
| Nominal current | 1.8 A |
| Operating voltage | 24 VDC ±25% |
| Inrush current | Typ. 5 A, max. 100 A for < 50 μs |
| Power consumption | 43.2 W |
| Fuse | 10 A fast, internal |
| Reverse polarity protection | Yes |
| Galvanic isolation | No |
| Electrical isolation | POWERLINK (IF1), Ethernet (IF2), X2X Link (IF6) and CAN (IF7) to each other, to other interfaces and to the base device |
| Standard mounting orientation | Vertical |
| Rotation | In 90° increments (portrait/landscape) |
| Degree of protection per EN 60529 | Rev. F0 and later: IP65 front Up to Rev. E5: IP55 front Back: IP20 |
| Operation | Max. 3000 m |
| Storage | -20 to 80°C |
| Transport | -20 to 80°C |
| Relative humidity | See section "Temperature/Humidity diagrams". |
| Design | Black |
| Width | 324 mm |
| Height | 221.5 mm |
| Depth | 43.2 mm |
| Weight | 2.3 kg |
