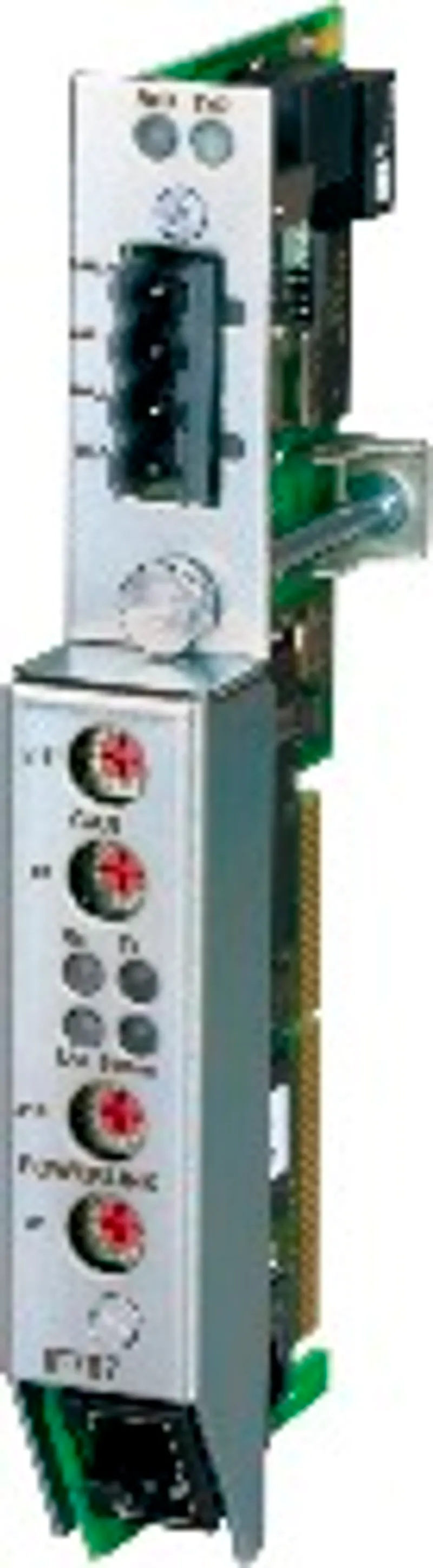

B&R 3IF787.9-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3IF787.9-1 be shipped?
3IF787.9-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF787.9-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF787.9-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF787.9-1, subject to availability and destination.
Interface module with CAN bus and POWERLINK aPCI interface module, 1 POWERLINK interface, managing or controlled node 1 CAN bus interface, electrically isolated, network-capable, max. 500 kbit/s, object buffer in transmit and receive directions, order 1x terminal block TB704 separately!
Specifications
Specifications
| Communication module | 1x CAN bus, 1x POWERLINK (V1/V2) managing or controlled node |
| Status indicators | Transmitting/Receiving data for IF1 Status of POWERLINK station, network activity, link/collision for IF2 |
| Bus function (IF2) | Yes, using LED status indicator and software |
| Data transfer (IF1) | Yes, using LED status indicator and software |
| Station status (IF2) | Yes, using LED status indicator and software |
| 3.3 VDC | 2.5 W |
| 5 VDC | 0.5 W |
| Total | 3.0 W |
| IF1 - IF2 | Yes |
| PLC - IFx | Yes |
| CE | Yes |
| UKCA | Yes |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD |
| KC | Yes |
| Signal | CAN bus |
| Variant | 1x shielded RJ45 port |
| Max. distance | 1000 m |
| Transfer rate | 100 Mbit/s |
| Fieldbus | POWERLINK (V1/V2) managing or controlled node |
| Type | Type 3 |
| Line length | Max. 100 m between two stations (segment length) |
| Physical layer | 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | No |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Degree of protection per EN 60529 | IP20 |
| Operation | 5 to 95%, non-condensing |
| Storage | -25 to 70°C |
| Note | Order 1x terminal block TB704 separately. |
| Slot | Slot, e.g. in the CP360 |
