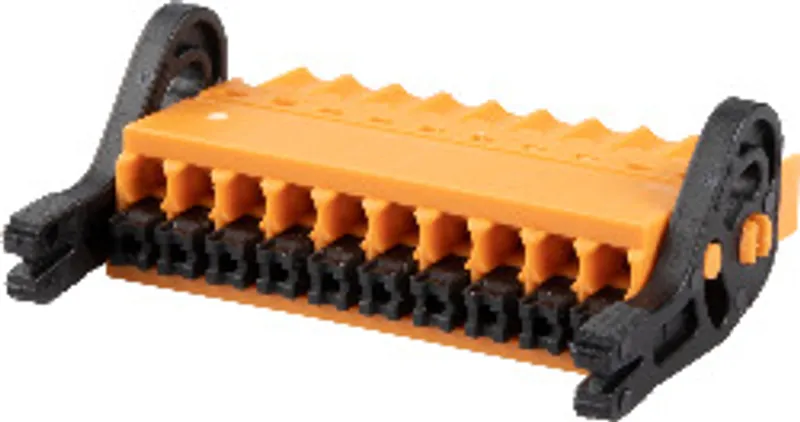

B&R 0TB710.92 – Accessory terminal block, 10-pin
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB710.92 be shipped?
0TB710.92 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB710.92 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB710.92 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB710.92, subject to availability and destination.
Accessory terminal block, 10-pin, push-in terminal block 1.5 mm²
Specifications
Terminal block
| Connection cross section – AWG wire | 26 to 16 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 1.00 mm² |
| Connection cross section – Single-wire | 0.14 to 1.50 mm² |
| Connection cross section – Fine-stranded wires | 0.14 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 1.00 mm² |
| Note | Mechanical removal aid ; Nominal data per UL |
| Number of pins | 10 |
| Type of terminal block | Push-in terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | 10 A / contact |
| Contact resistance | ≤5 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet 0TB710.9x | PDF · 585 KB · 1.00 (11/29/2022) - EN |
