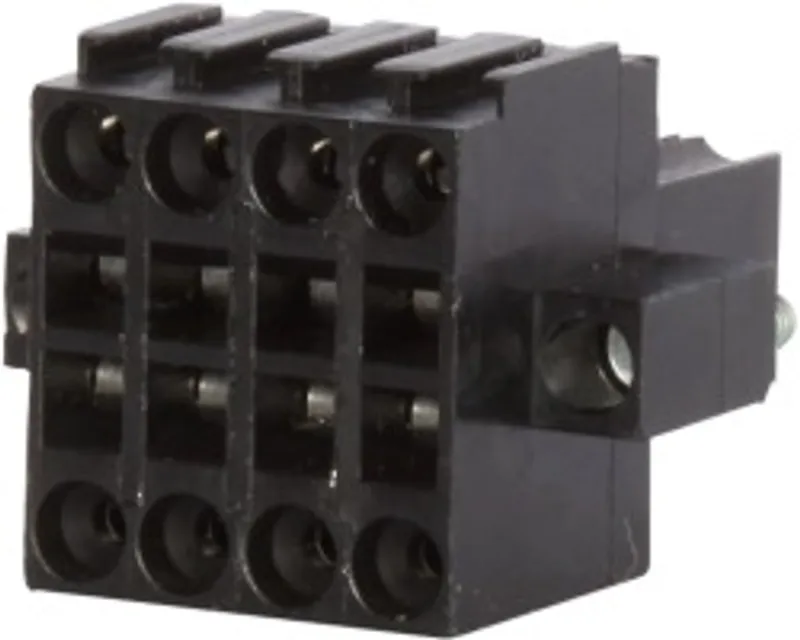

B&R 0TB1208.3100 – The 2-row 8-pin terminal block TB1208 is used to connect to…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB1208.3100 be shipped?
0TB1208.3100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB1208.3100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB1208.3100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1208.3100, subject to availability and destination.
The 2-row 8-pin terminal block TB1208 is used to connect to various Power Panel 500 interface boards.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification."> |
Terminal block
| Connection cross section – AWG wire | 28 to 18 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.13 to 0.34 mm² |
| Connection cross section – Single-wire | 0.20 to 1 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1 mm² |
| Connection cross section – With wire end sleeve | 0.13 to 0.34 mm² |
| Note | Nominal data per UL |
| Number of pins | 8 (female) |
| Type of terminal block | Tension spring connection |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | 10 A / contact |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
| 3D file STEP 0TB1208.3100 | ZIP · 94 KB · 1.00 (09/15/2016) |
More B&R parts
Available on requestB&R 0TB1112.8010 – Accessory terminal block, 12-pin
Available on requestB&R 0TB1114.8110 – Accessory terminal block (3.5), 14-pinAvailable on requestB&R 0TB1116.8110 – Accessory terminal block (3.5), 16-pin
Available on requestB&R 0TB112.91 – Accessory terminal block, 2x6 pins, cage clamp 1,0 qmm
Available on requestB&R 0TB1210.3100 – Two-row 10-pin terminal block 0TB1210.3100 is used to…

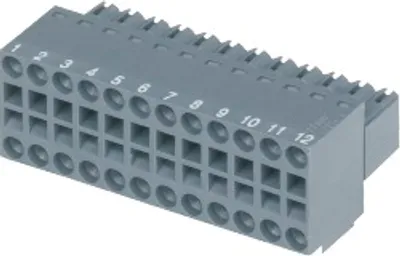

Available on requestB&R 0TB124.91 – Accessory terminal block, 2x12 pins, cage clamp 1,0 qmmAvailable on requestB&R 0TB1310.3100 – Accessory terminal block, 3x 10-pin
