DIGITAL OUTPUT MODULE XI213204

Name: DIGITAL OUTPUT MODULE XI213204
Brand: Bosch Rexroth
SKU: R911417209

MPN: R911417209 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XI2 Digital Outputs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911417209 be shipped?

R911417209 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911417209 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911417209 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911417209, subject to availability and destination.

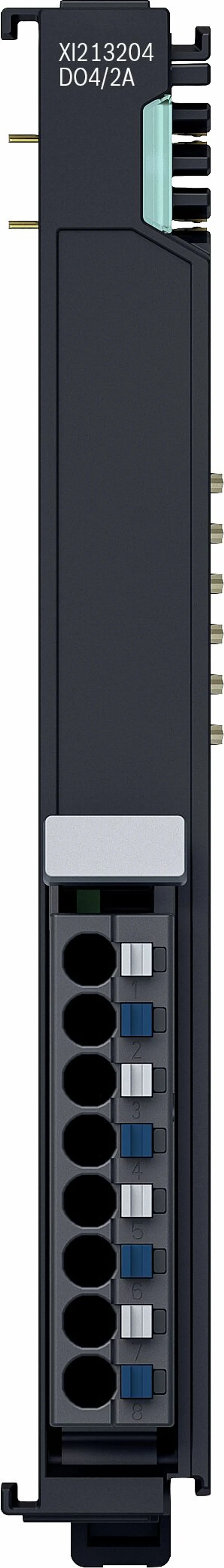

The digital output module XI213204 is used to output binary 24 V control signals with a maximum current of 2 A in a ctrlX I/O station. The module has four channels in a 2-wire technique. The signal state is shown at the channel LED on the removable peripheral connector. The digital outputs are fed via the 24 V supply from UP. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique
Number of channels	4
Max. output current per channel [A]	2
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, output data in the process data image	1 byte
Maximum current fed into one GND Output Pin [A]	2
Maximum current fed into all GND Output Pins of the module [A]	8
Inductive switch-off energy	Max. 150 mJ
Nominal load [Ohm]	12
Channel LEDs	Per channel
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Rise time (TRise)	Without load: 16,4 µs on the digital input; 17,3 µs at 240 Ohm, 100 mA; Ohmic nominal load: 17,4 µs at 48 Ohm, 500mA
Fall time (TFALL)	Without load: 1,4 µs on the digital input; 45,3 µs at 240 Ohm, 100 mA; Ohmic nominal load: 22,4 µs at 12 Ohm, 2000mA
Feedback voltage resistance	Not resistant to feedback, external measures required
Current requirement UL	22 mA
Current requirement Up	15 mA + load
Net current module outputs [A]	8
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Nominal output voltage [V DC]	24
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	Granular switch-off with automatic restart
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.12
