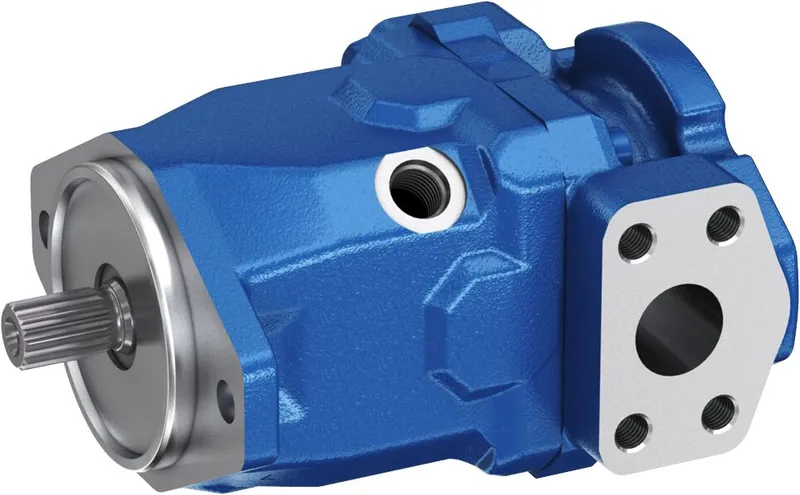

AXIAL-PISTON PUMP A A10FZO006/10R-VSC02N00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston fixed pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902544386 be shipped?
R902544386 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902544386 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902544386 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902544386, subject to availability and destination.
The proven axial piston units from the A10 product family have now been further developed for use in speed-controlled drives. They are approved for start/stop operation and designed for a changing direction of rotation. The A10 units can be used as pumps and as motors in one-, two- or four-quadrant operation. For use in single- and double-quadrant operation Suitable for start/stop-operation Suitable for long pressure retention operation Well-tried A10 rotary group technology High total efficiency
Specifications
Specifications
| Version_1 | Standard |
| Version_2 | Standard |
| Product family | A10FZ |
| Type of actuation | Pump, open circuit |
| Size (displacement) [cm³] | 6 |
| Series | Series 1, index 0 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Sealing material | FKM (standard) |
| Shaft end | Splined shaft |
| Mounting flange | ISO 3019-1 (SAE), 2 hole |
| Working ports | A flan l metr, B flan l metr |
| Through drive | Without through drive |
| Max. displacement [cm³] | 6.0 |
| Paint/top coat | without |
| Weight [kg] | 9.5 |
