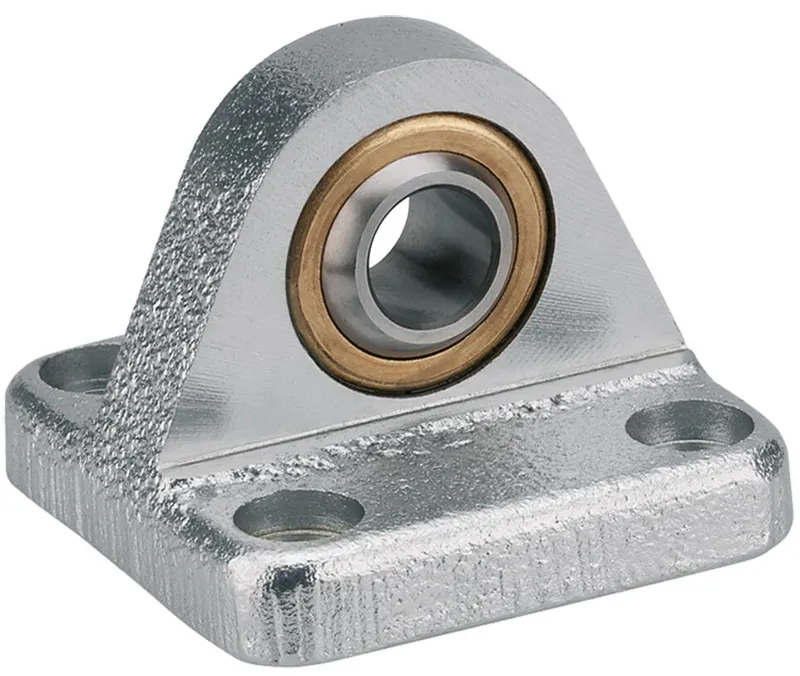

SPHERICAL PLAIN BEARING B EMC40 &

Name: SPHERICAL PLAIN BEARING B EMC40 &
Brand: Bosch Rexroth
SKU: R349947000

MPN: R349947000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349947000 be shipped?

R349947000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349947000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349947000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349947000, subject to availability and destination.

Group 6, option 04 Material: Aluminum/galvanized cast iron with spheroidal graphite

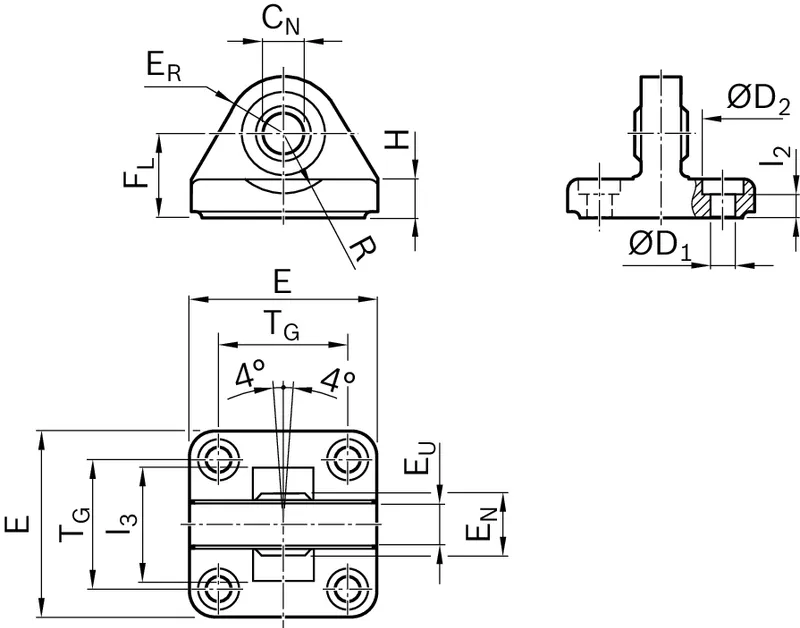

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	40
Weight [kg]	0.14
Footnote max. dynamic load	Fmax EMC
Material of electromechanical cylinders	Aluminum
Dimension CN H7 [mm]	12
Dimension D1 H13 [mm]	6.6
Dimension D2 H13 [mm]	11
Dimension E [mm]	53
Dimension EN [mm]	16
Dimension EN tolerance [mm]	-0.1
Dimension ER [mm]	18
Dimension EU [mm]	12
Dimension FL [mm]	25
Dimension FL tolerance [mm]	-0.2
Dimension H [mm]	9.0
Dimension I2 [mm]	5.5
Dimension l3 min. [mm]	42
Dimension R [mm]	15
Dimension Tg [mm]	38
Dimension TG [mm]	38
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M6x18 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M6
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	18
