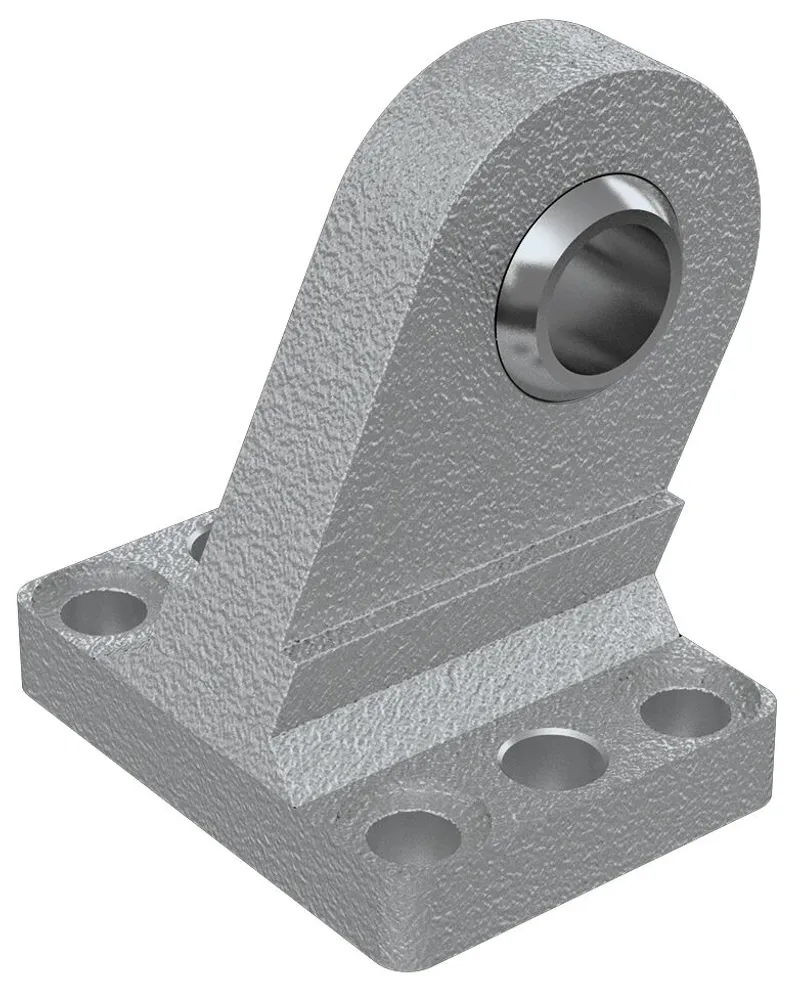

SPHERICAL PLAIN BEARING C EMC50 &

Name: SPHERICAL PLAIN BEARING C EMC50 &
Brand: Bosch Rexroth
SKU: R349946500

MPN: R349946500 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349946500 be shipped?

R349946500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349946500 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349946500 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349946500, subject to availability and destination.

Group 6, option 03 Material: Galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	50
Weight [kg]	0.48
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

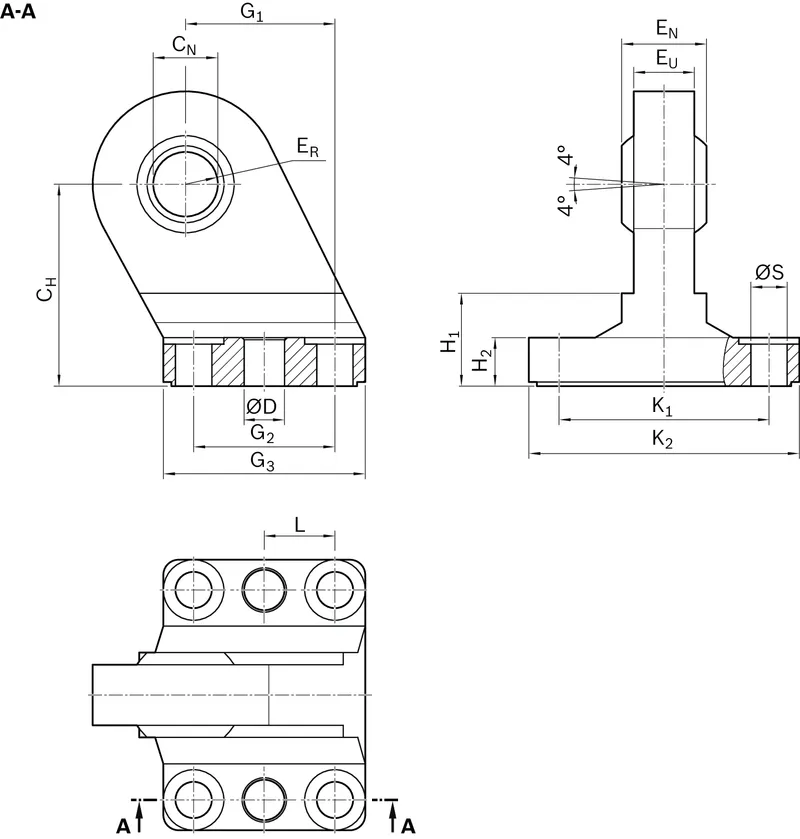

Dimension CH JS15 [mm]	45
Dimension CN H7 [mm]	16
Dimension EN [mm]	21
Dimension EN tolerance [mm]	-1
Dimension ER max. [mm]	21
Dimension EU [mm]	15
Dimension G1 JS14 [mm]	33
Dimension G2 JS14 [mm]	30
Dimension G3 max. [mm]	45
Dimension H1 (profiled rail systems) [mm]	23
Dimension H2 (profiled rail systems) [mm]	11
Dimension H2 tolerance [mm]	±1
Dimension K1 JS14 [mm]	50
Dimension K2 max. [mm]	65
Dimension S H13 [mm]	9
