FLEXIBLE COUPLING EMC50/63 &

Name: FLEXIBLE COUPLING EMC50/63 &
Brand: Bosch Rexroth
SKU: R349939900

MPN: R349939900 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349939900 be shipped?

R349939900 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349939900 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349939900 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349939900, subject to availability and destination.

Group 2, option 03 Material: Galvanized steel

Specifications

Fastening elements for electromechanical cylinders	Flexible coupling
Nominal size [mm]	50; 63
Weight [kg]	0.87
Footnote max. dynamic load	Fmax EMC
Surface finishing	galvanized
Material of electromechanical cylinders	Steel

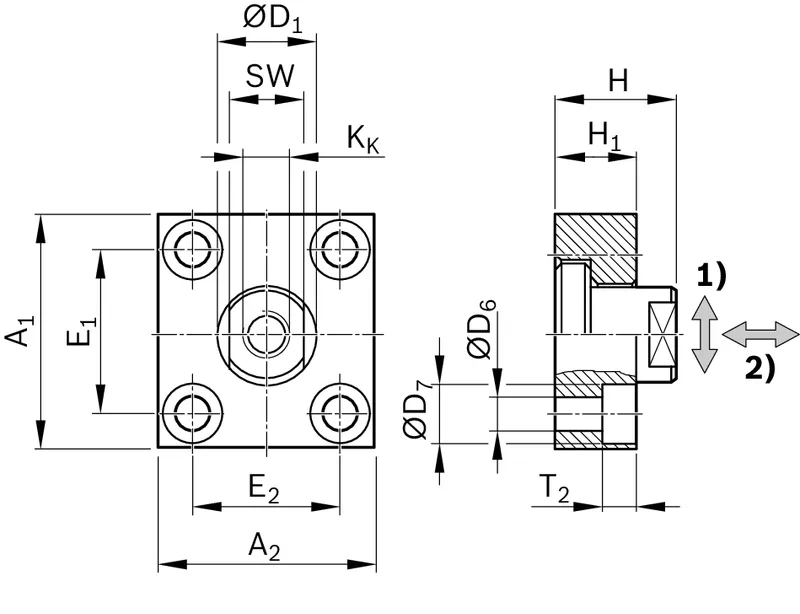

Dimension A1 (profiled rail systems) [mm]	80
Dimension A2 (profiled rail systems) [mm]	80
Dimension axial clearance	0.4 mm ... 0.8 mm
Dimension of axial clearance max. [mm]	0.8
Dimension of axial clearance min. [mm]	0.4
Dimension D1 H11 [mm]	30
Dimension D6 H13 [mm]	11
Dimension D7 H13 [mm]	18
Dimension E1 [mm]	58
Dimension E1 tolerance [mm]	±0.2
Dimension E2 [mm]	58
Dimension E2 tolerance [mm]	±0.2
Dimension H [mm]	32.0
Dimension H1 (profiled rail systems) [mm]	20
Dimension KK	M16x1.5 mm
Dimension radial clearance	1.9 mm ... 2.3 mm
Dimension of radial clearance max. [mm]	2.3
Dimension of radial clearance min. [mm]	1.9
Dimension SW [mm]	24
Dimension T2 [mm]	11
